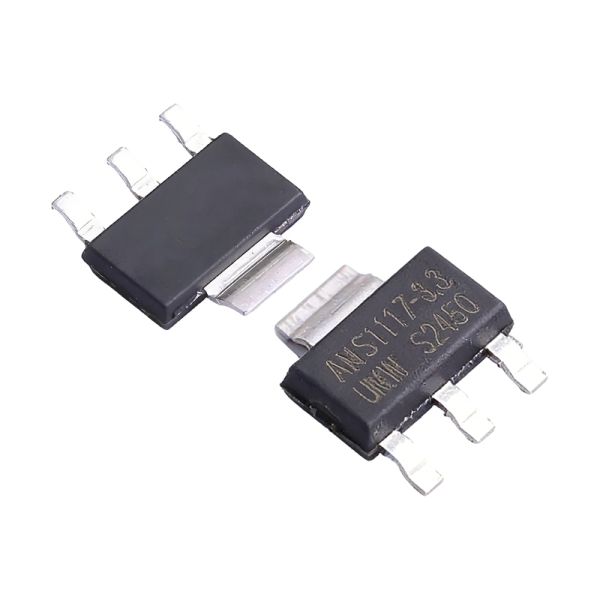

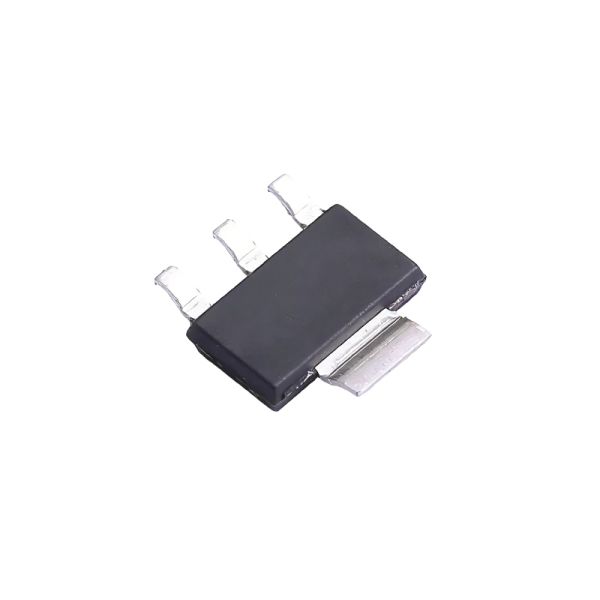

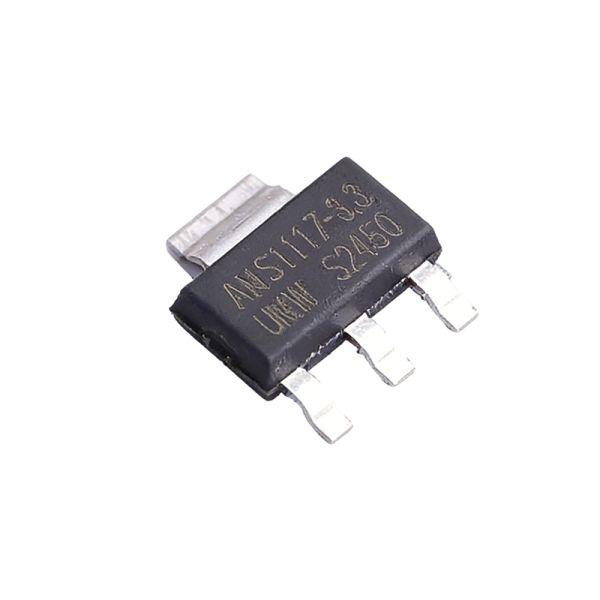

AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator
Specifications
Brand Name :
AMS
Model Number :
AMS1117-3.3
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Package / Case: :
SOT-223-4
Output Voltage: :
3.3 V
Output Current: :
800 mA
Number of Outputs: :
1 Output
Polarity: :
Positive
Quiescent Current: :
5 mA
Description
AMS1117-3.3 LDO Voltage Regulators 800MA LDO LINEAR REG A 926-LM1117MP-3.3N A 926-LM1117MP-3.3NOPB

The AMS1117 series adjustable and fixed voltage regulators are designed to provide an output current of up to 1A and can operate with an input-output voltage difference as low as 1V. The dropout voltage of this device is guaranteed to be no more than 1.3V, and it will decrease at lower load currents. The on-chip fine-tuning can adjust the reference voltage to 1.5%. An overcurrent limit is set to minimize the stress on the regulator and power circuit under overload conditions. The AMS1117 device is compatible with the other three-terminal SCSI regulators in terms of pins, providing thin surface-mount SOT-223 packages, 8-pin SOIC packages, and TO-252 (DPAK) plastic packages.

Table 1. COPPER AREA THERMAL RESISTANCE
TOP SIDE* BACK SIDE BOARD AREA (JUNCTION-TO-AMBIENT)
2500 Sq. mm 2500 Sq. mm 2500 Sq. mm 55°C/W
1000 Sq. mm 2500 Sq. mm 2500 Sq. mm 55°C/W
225 Sq. mm 2500 Sq. mm 2500 Sq. mm 65°C/W
100 Sq. mm 2500 Sq. mm 2500 Sq. mm 80°C/W
1000 Sq. mm 1000 Sq. mm 1000 Sq. mm 60°C/W
1000 Sq. mm 0 1000 Sq. mm 65°C/W

AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator

AMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear RegulatorAMS1117-3.3 LDO Voltage Regulator with 3.3V Output 800mA Current in SOT-223-4 Package Linear Regulator

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
