Specifications
Brand Name :
SGMICRO
Model Number :
SGM4056-6.8YTDE8G/TR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Chip Type :
Charging Chip
Operating Voltage :
4.55V~6.1V
Madimum Charging Current :
900mA
Number of battery cells :
1
Woridng temperature :
40°C~+85°C
Static Current (lq) :
1uA
Description
SGM4056-6.8YTDE8G/TR High Input Voltage Charger
A low-cost battery charger with integrated high input voltage capability for single-cell Li-Ion or Li-polymer batteries.
Product Features
  • Input Over-Voltage Protection Thresholds: 6.8V (TYP) for SGM4056-6.8, 10.5V (TYP) for SGM4056-10.5
  • Trickle Charge Threshold: 2.55V
  • Power Input Voltage up to 26.5V
  • Less components and low cost
  • Selectable charge current
  • Selectable EOC current
  • Thermal regulation function
  • Charging status indication
  • 1μA (MAX) leakage current when charger disabled or input floating
  • Available in Green TDFN-3*3-8L, TDFN-2*3-8L, TDFN-2*2-8L and SOIC-8 (Exposed Pad) packages
Model Specifications
Model VOVP(V) Package Description Temperature Range Order Number Package Marking Packing Option
SGM4056 6.8V TDFN-3*3-8L -40℃ to +85℃ SGM4056-6.8YTDB8G/TR SGMG9DBXXXXX Tape and Reel, 3000
TDFN-2*3-8L -40℃ to +85℃ SGM4056-6.8YTDC8G/TR SGBXXXX Tape and Reel, 3000
TDFN-2*2-8L -40℃ to +85℃ SGM4056-6.8YTDE8G/TR SG7XXXX Tape and Reel, 3000
SOIC-8 (Exposed Pad) -40℃ to +85℃ SGM4056-6.8YPS8G/TR SGM4056-6.8YPS8XXXXX Tape and Reel, 2500
SGM4056 10.5V TDFN-3*3-8L -40℃ to +85℃ SGM4056-10.5YTDB8G/TR SGMGADBXXXXX Tape and Reel, 3000
TDFN-2*3-8L -40℃ to +85℃ SGM4056-10.5YTDC8G/TR SGCXXXX Tape and Reel, 3000
TDFN-2*2-8L -40℃ to +85℃ SGM4056-10.5YTDE8G/TR SG8XXXX Tape and Reel, 3000
SOIC-8 (Exposed Pad) -40℃ to +85℃ SGM4056-10.5YPS8G/TR SGM4056-10.5YPS8XXXXX Tape and Reel, 2500

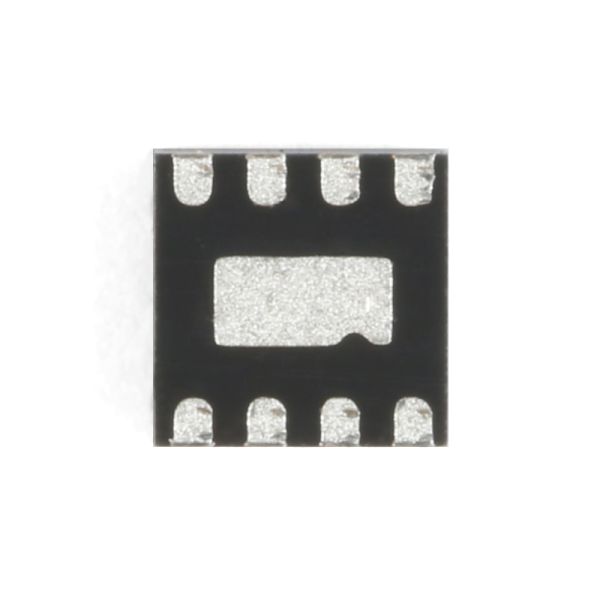

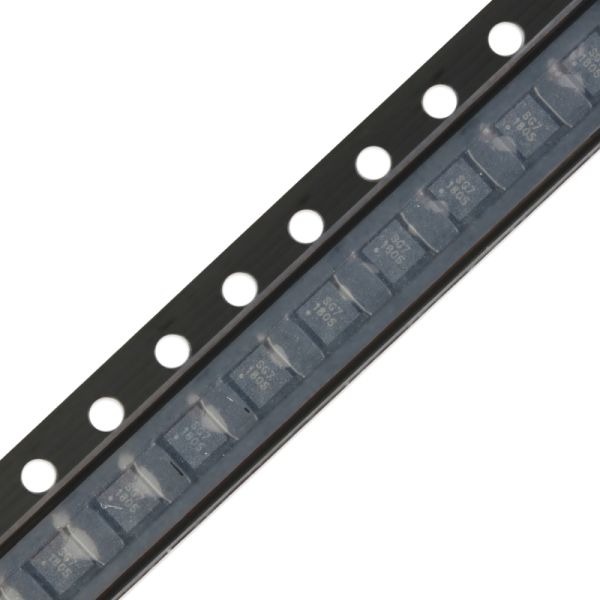

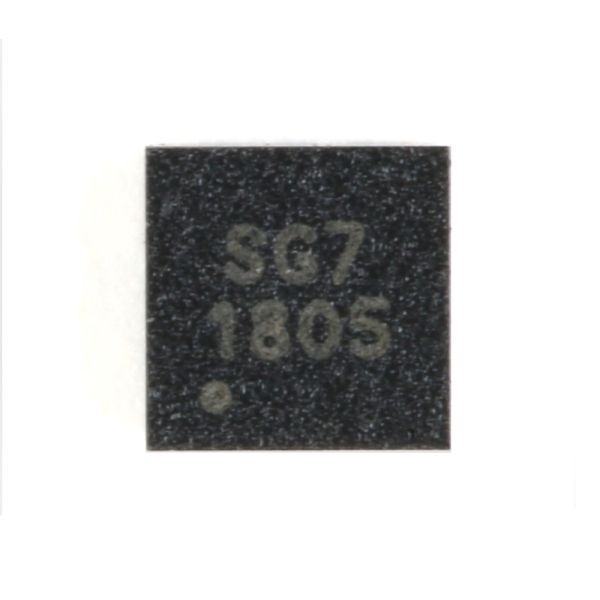

Product Images
SGM4056-6.8YTDE8G/TR High Input Voltage Charger A Low Cost Battery Charger Withintegrated High Input Voltage Capability For Single-cellLi-Ion Or Li-polymer Batteries SGM4056-6.8YTDE8G/TR High Input Voltage Charger A Low Cost Battery Charger Withintegrated High Input Voltage Capability For Single-cellLi-Ion Or Li-polymer Batteries SGM4056-6.8YTDE8G/TR High Input Voltage Charger A Low Cost Battery Charger Withintegrated High Input Voltage Capability For Single-cellLi-Ion Or Li-polymer Batteries
