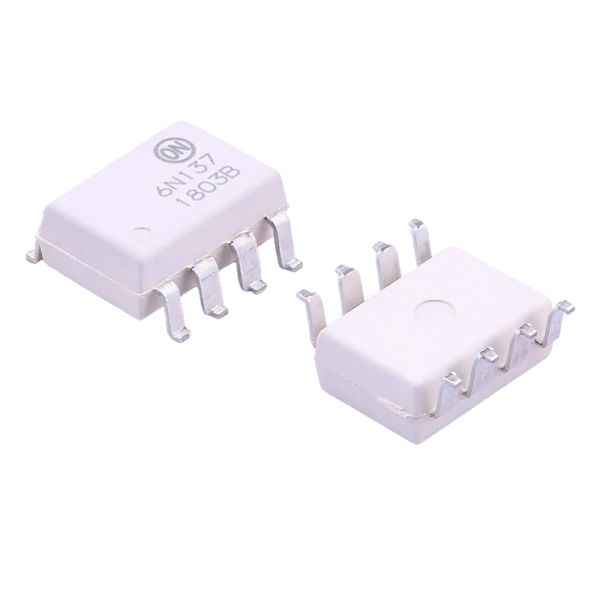

6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
Specifications
MOQ :
1
Price :
consult with
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Brand Name :
onsemi
Model Number :
6N137SDM
Certification :
rohs
Place of Origin :
CN
Mounting Style: :
SMD/SMT
Package / Case: :
SMT-8
Number of Channels: :
1 Channel
Data Rate: :
10 Mb/s
Isolation Voltage: :
2500 Vrms
Output Type: :
Open Collector
Description
6N137SDM High Speed Optocouplers 8 PW DIP HIGH SPEED LOGIC GATE OPTOCOUP
Features
  • Very High Speed – 10 MBit/s
  • Superior CMR – 10 kV/µs
  • Fan-out of 8 Over -40°C to +85°C
  • Logic Gate Output
  • Strobable Output
  • Wired OR-open Collector
  • Safety and Regulatory Approvals– UL1577, 5,000 VACRMS for 1 Minute– DIN EN/IEC60747-5-5
Applications
  • Ground Loop Elimination
  • LSTTL to TTL, LSTTL or 5 V CMOS
  • Line Receiver, Data Transmission
  • Data Multiplexing
  • Switching Power Supplies
  • Pulse Transformer Replacement
  • Computer-peripheral Interface
Technical Parameters
Symbol Parameter Value Unit
VPR Input-to-Output Test Voltage, Method A, VIORM x 1.6 = VPR,Type and Sample Test with tm = 10 s, Partial Discharge < 5 pC 1,335 Vpeak

Input-to-Output Test Voltage, Method B, VIORM x 1.875 = VPR,100% Production Test with tm = 1 s, Partial Discharge < 5 pC 1,669 Vpeak
VIORM Maximum Working Insulation Voltage 890 Vpeak
VIOTM Highest Allowable Over-Voltage 6,000 Vpeak

External Creepage ≥ 8.0 mm

External Clearance ≥ 7.4 mm

External Clearance (for Option TV, 0.4" Lead Spacing) ≥ 10.16 mm
DTI Distance Through Insulation (Insulation Thickness) ≥ 0.5 mm
TS Case Temperature(2) 150 °C
IS,INPUT Input Current(2) 200 mA
PS,OUTPUT Output Power (Duty Factor ≤ 2.7%)(2) 300 mW
RIO Insulation Resistance at TS, VIO = 500 V(2) > 109 Ω

6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
