MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
Specifications
Brand Name :
AEROSEMI
Model Number :
MT9700
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Chip type :
Power-Distribution Switch
operating voltage :
2.4V~5.5V
Reset timeout :
25ms
Maximum continuous current :
2A
on-resistance :
80mΩ
Operating temperature range (°C) :
-40℃~+85℃
Description
MT9700 80mΩ Adjustable Fast Response Current-Limited Power-Distribution Switch
The MT9700 is an 80mΩ adjustable fast response current-limited power-distribution switch designed for high-performance power management applications.
Product Features
  • Compliant to USB Specifications
  • Integrated 80mΩ Power MOSFET
  • Low Supply Current: 15μA Typical at Switch On State, 1μA Typical at Switch Off State
  • Wide Input Voltage Range: 2.4V to 5.5V
  • Fast Transient Response: <2μs
  • Reverse Current Flow Blocking
  • Thermal Shutdown Protection
  • Hot Plug-In Application (Soft-Start)
  • Available in a 5-Pin SOT23-5 Package
Applications
  • USB Bus/Self Powered Hubs
  • USB Peripherals
  • Notebook Computers
  • Battery-Charger Circuits
  • Personal Communication Devices
Current Setting Configuration
SET (mA) RSET (kΩ)
600 11.3
800 8.45
1000 6.8
1500 4.53
2000 3.4

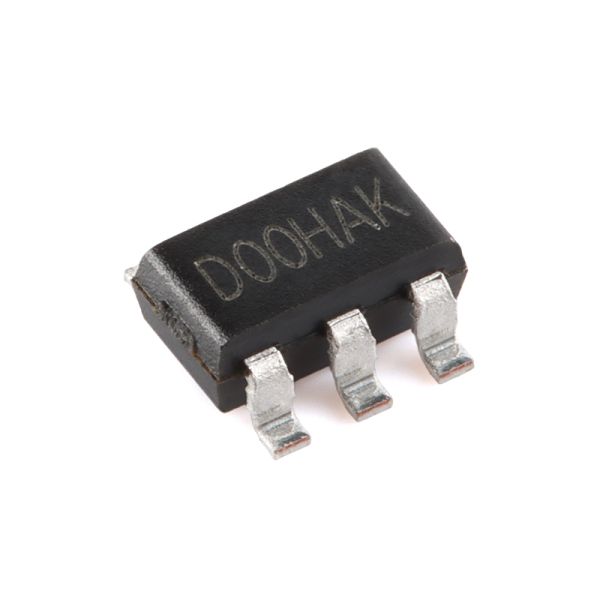

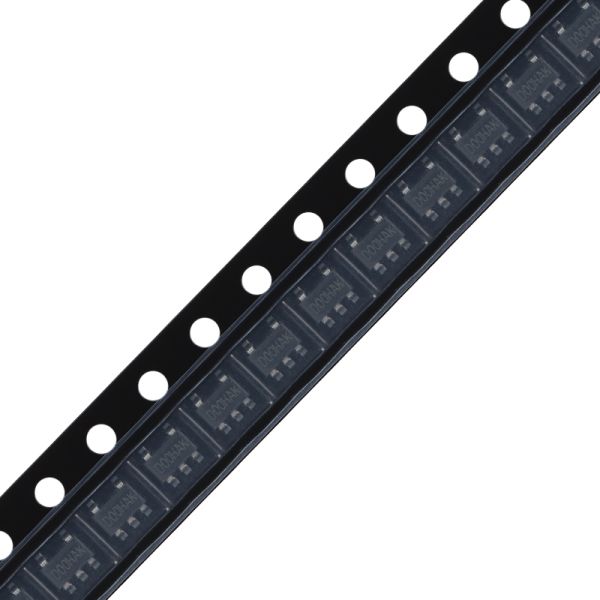

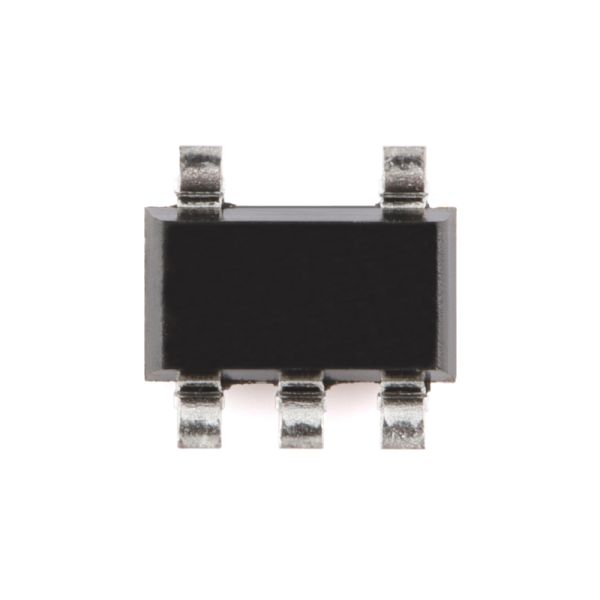

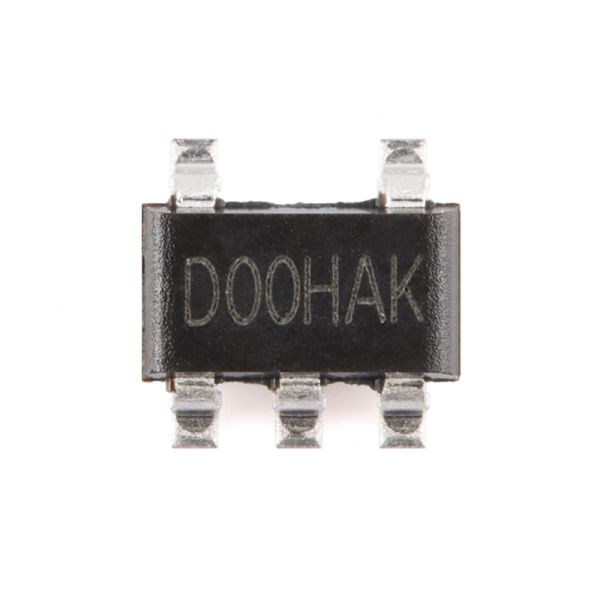

Product Images
MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch MT9700 80mΩ,Adjustable Fast ResponseCurrent-Limited Power-Distribution Switch
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
