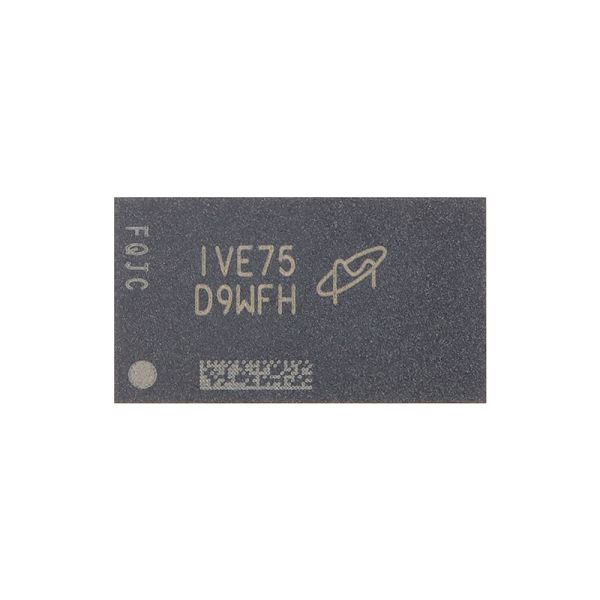

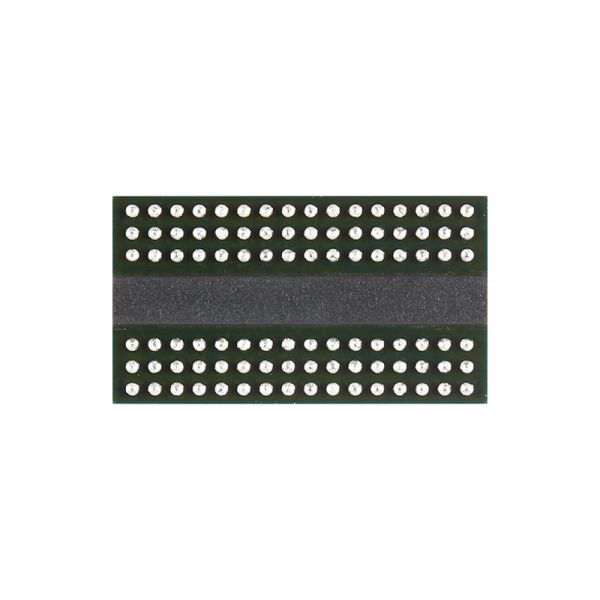

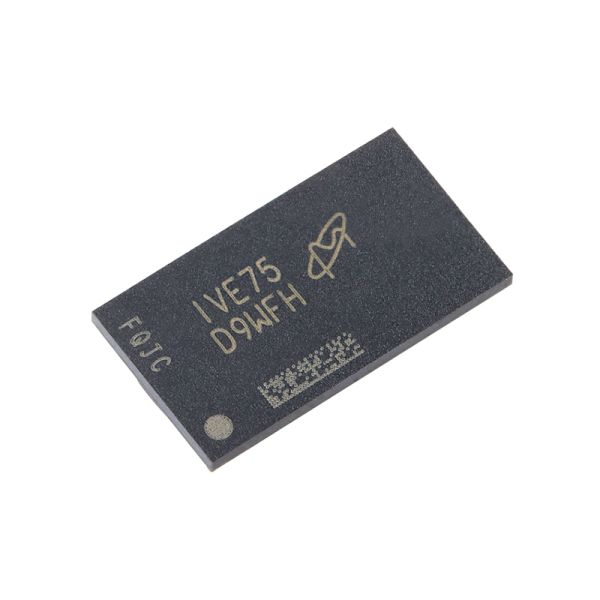

MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM
Specifications
Brand Name :
micron
Model Number :
MT40A512M16LY-075:E
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
0℃~+95℃
operating voltage :
1.14V~1.26V
Memory architecture (format) :
DDR SDRAM
Storage Capadity :
8Gbit
Clock Frequency (fc) :
1.33GHz
operating current :
-
Description
MT40A512M16LY-075:E 8Gb DDR4 SDRAM
High-performance 8Gb DDR4 SDRAM with X4, X8, and X16 parallel interfaces, designed for demanding industrial and computing applications.
Product Features
  • Operating voltage: VDD = VDDQ = 1.2V ±60mV
  • VPP = 2.5V, –125mV, +250mV
  • On-die, internal, adjustable VREFDQ generation
  • 1.2V pseudo open-drain I/O
  • Refresh time of 8192-cycle at TC temperature range
  • 16 internal banks (x4, x8): 4 groups of 4 banks each
  • 8 internal banks (x16): 2 groups of 4 banks each
  • 8n-bit prefetch architecture
  • Programmable data strobe preambles and preamble training
  • Command/Address latency (CAL)
  • Multipurpose register READ and WRITE capability
  • Write leveling and output driver calibration
  • Self refresh mode with low-power auto self refresh (LPASR)
  • Temperature controlled refresh (TCR)
  • Fine granularity refresh and self refresh abort
  • Maximum power saving mode
  • Nominal, park, and dynamic on-die termination (ODT)
  • Data bus inversion (DBI) for data bus
  • Command/Address (CA) parity
  • Databus write cyclic redundancy check (CRC)
  • Per-DRAM addressability and connectivity test
  • JEDEC JESD-79-4 compliant
  • sPPR and hPPR capability
Speed Grade Specifications
Speed Grade Data Rate (MT/s) Target CL-nRCD-nRP tAA (ns) tRCD (ns) tRP (ns)
-062Y 3200 22-22-22 13.75 (13.32) 13.75 (13.32) 13.75 (13.32)
-062E 3200 22-22-22 13.75 13.75 13.75
-068 2933 21-21-21 14.32 (13.75) 14.32 (13.75) 14.32 (13.75)
MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM

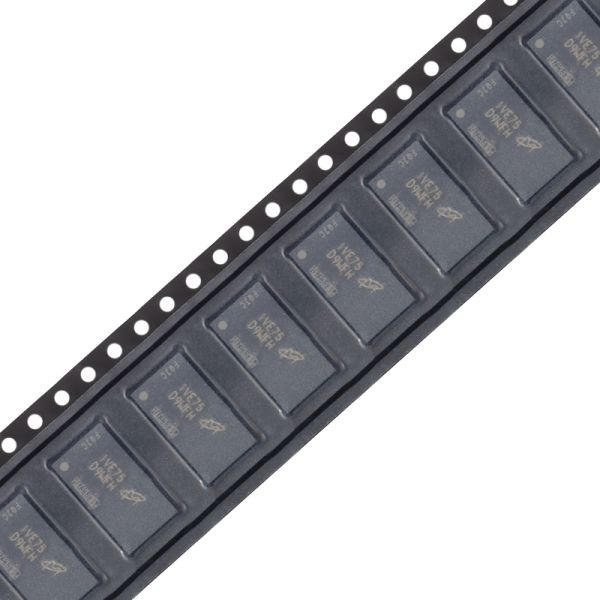

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
