1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
Specifications
Model Number :
6255S3
Certification :
CCC CE RoHS EMC FCC ISO9001
Place of Origin :
China
MOQ :
4
Price :
$ 383 - 410 / Unit
Payment Terms :
T/T,D/A,L/C,D/P,Western Union
Supply Ability :
Over 10000 Units / Month
Delivery Time :
3-15 Work Days
Packaging Details :
Standard Carton with Foam Cushioning
Brand Name :
YOMURA
Screen Size :
55 inches
Default color temperature :
6500K
Lcd Panel :
A-si TFT LCD panel
Refresh Rate :
60Hz
Rated Power :
≤175W
Color Depth :
8bit, 16.7M colors
Color Gamut :
NTSC 75%, sRGB 98%
Service Life :
50000 Hourss
Description
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
Model: 6255S3 | 55-Inch | 1.7mm Bezel | 500 cd/m² Brightness | 4500:1 Contrast Ratio
High Brightness, Ultra-Narrow Bezel, Industrial Durability - Professional Splicing Solution for Advertising & Surveillance
Technical Specifications
Screen Size 55 inches
Resolution 1920 × 1080 (FHD)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 4500:1
Viewing Angle 178°(H) / 178°(V)
Bezel Width 1.7mm (dual-side)
Backlight Type DLED
Panel Type IPS Technology, Matte Anti-Glare Surface
Refresh Rate 60Hz
Color Depth 8bit, 16.7M colors
Color Gamut NTSC 75%, sRGB 98%
Input Interfaces HDMI ×1 (supports 4K@30Hz), RJ45 ×1 (network video input)
Control Interfaces RS232 IN ×1, RS232 OUT ×2 (RJ45 type)
USB 1 × USB 2.0 (for firmware upgrade & media playback)
Power Supply AC 200-240V, 50-60Hz
Rated Power Consumption ≤165W
Dimensions (W × H × D) 1214 × 684.9 × 49.8 mm
Net Weight 16.6 kg
Mounting Options Wall mount, cabinet, floor stand, and more
Key Features
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
High Brightness & High Contrast
500 cd/m² ensures clear visibility even in bright environments; 4500:1 contrast delivers deep blacks and vivid details.
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
Industrial-Grade IPS Panel
Accurate color reproduction, wide viewing angles, and 75% NTSC color gamut.
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring

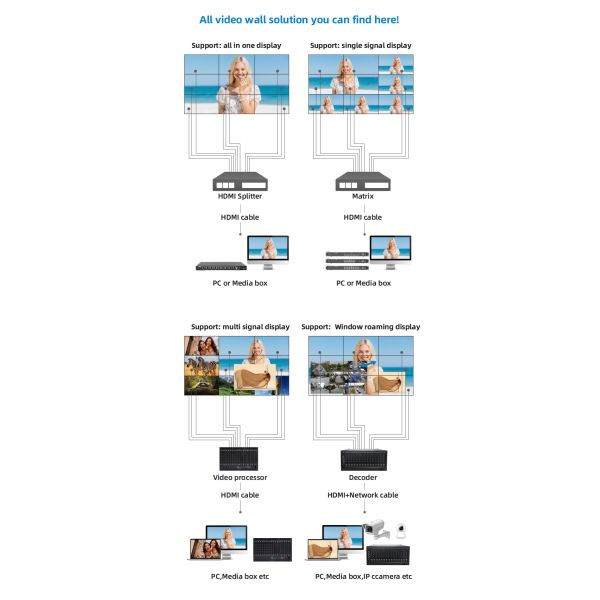

Dual Signal Input Flexibility
Supports HDMI and RJ45 network video input, compatible with video wall processors and matrix systems.
1.7mm LCD Video Wall Splicing Screen For Digital Advertising / Monitoring
Remote Control & Management
RS232 serial control and network management enable centralized operation of multiple displays.
What We Offer
  • Original factory panels, reliable quality
  • Professional video wall solution design support
  • Customizable size, brightness, and interface configurations
  • Technical support and installation guidance
  • OEM/ODM cooperation available
