2X2 2X3 2x4 Indoor Video Wall High Brightness 46 55 LCD Panel
2X2 2X3 2x4 Indoor Video Wall High Brightness 46 55 LCD Panel
Specifications
Model Number :
624655
Certification :
CE CCC RoHS EMC FCC ISO 9001
Place of Origin :
China
MOQ :
4
Price :
$ 312 - 410 / Unit
Payment Terms :
T/T,D/A,L/C,D/P,Western Union
Supply Ability :
Over 30000 Units / Month
Delivery Time :
3-15 Work Days
Packaging Details :
Standard Carton with Foam Cushioning
Brand Name :
YOMURA
Screen Size :
46 55 inches
Bezel Width :
1.7 mm
Default color temperature :
6500K
Rated Power :
≤175W
Service Life :
50000 Hourss
Pixel Pitch :
0.630×0.630
Description
2X2 2X3 2x4 Indoor Video Wall High-brightness 46" 55" LCD panel
High-Brightness 46” & 55” Ultra-Narrow Bezel Panels
Product Overview

This indoor LCD video wall solution is designed for professional commercial and control-room projects, supporting 2×2, 2×3, 2×4 and scalable multi-screen configurations.

Available in 46-inch and 55-inch sizes, both models feature an ultra-narrow 1.7mm bezel, high brightness panels, and 24/7 operation capability, delivering a seamless and reliable large-screen display for mission-critical environments.

Display Specifications Comparison
Specification 46” LCD Video Wall Panel 55” LCD Video Wall Panel
Screen Size 46 inch 55 inch
Bezel Width 1.7 mm 1.7 mm
Resolution 1920 × 1080 (Full HD) 1920 × 1080 (Full HD)
Aspect Ratio 16:9 16:9
Brightness 500 cd/m² 500 cd/m²
Contrast Ratio 4000:1 4000:1
Viewing Angle 178° (H) / 178° (V) 178° (H) / 178° (V)
Response Time 8.5 ms 8 ms (typ.)
Color Depth 8-bit, 16.7M colors 8-bit, 16.7M colors
Color Gamut 72% 72%
Refresh Rate 60 Hz 60 Hz
Operation Mode 24/7 Continuous 24/7 Continuous
Interfaces & Control
Interface 46” Panel 55” Panel
HDMI Input 1 × HDMI (up to 4K @30Hz) 1 × HDMI (up to 4K @30Hz)
RJ45 Video Input Yes (Network transmission) Yes (Network transmission)
RS232 Control Yes Yes
USB USB 2.0 (Upgrade / Media) USB 2.0 (Upgrade / Media)
Power & Mechanical
Item 46” Panel 55” Panel
Max Power Consumption ≤110 W ≤180 W
Standby Power <0.3 W <0.3 W

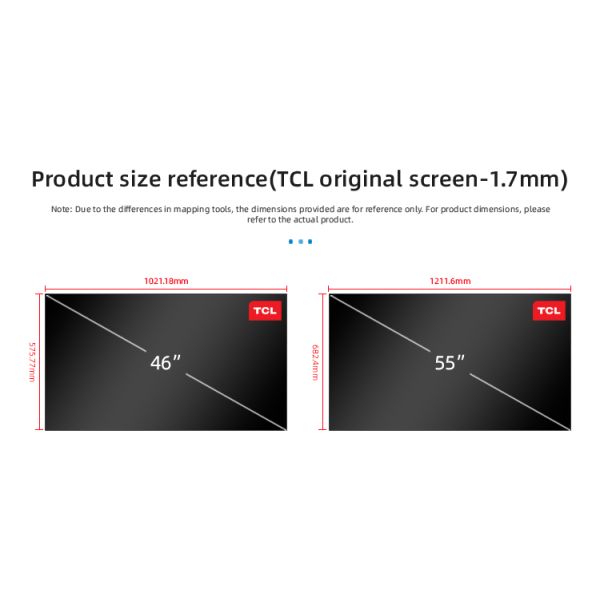

Dimensions (W×H×D) 1022.5 × 577.2 × 76.3 mm Approx. 1213 × 684 × 76 mm
Installation Orientation Landscape / Portrait Landscape / Portrait
Installation Methods Wall-mount / Embedded / Floor-standing / Front maintenance Wall-mount / Embedded / Floor-standing / Front maintenance
Typical Applications
  • Security Monitoring Centers
  • Command & Control Rooms
  • Corporate Operation Centers

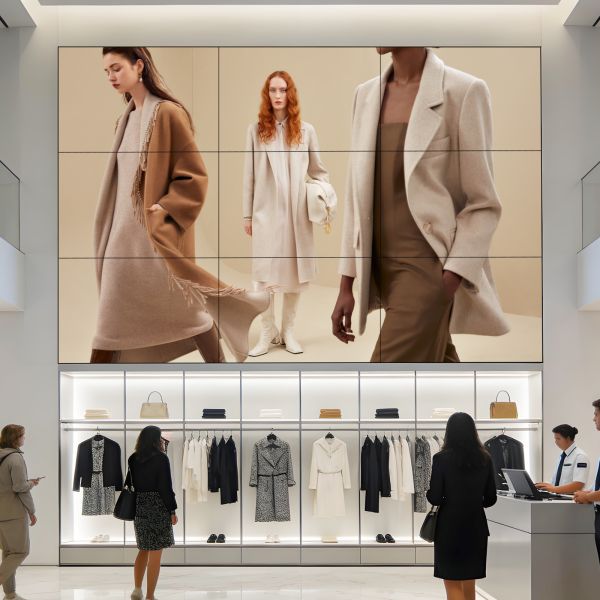

  • Retail & Commercial Advertising Walls
  • Exhibition Halls & Experience Centers
  • Transportation & Public Information Displays
Project Support & Customization

We support complete video wall project solutions, including:

  • Video wall layout design (2×2 / 2×3 / 2×4 and beyond)
  • Signal distribution & control system matching
  • OEM / ODM customization
  • Long-term technical support

2X2 2X3 2x4 Indoor Video Wall High Brightness 46

2X2 2X3 2x4 Indoor Video Wall High Brightness 46

2X2 2X3 2x4 Indoor Video Wall High Brightness 46

2X2 2X3 2x4 Indoor Video Wall High Brightness 46
