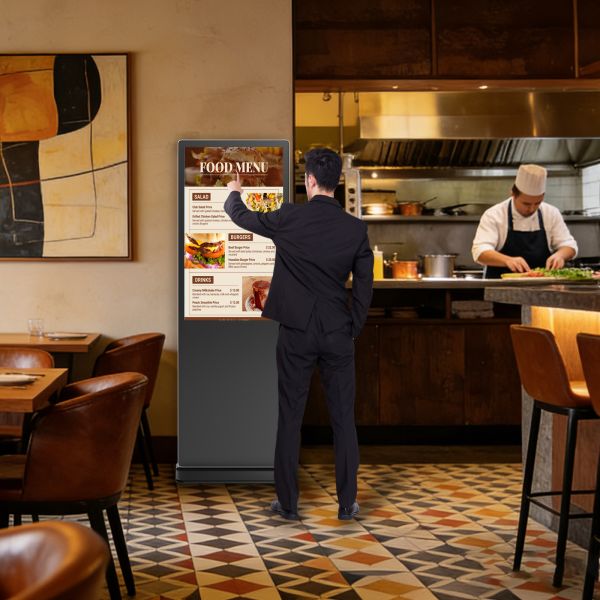

Floor Standing 55-Inch Digital Signage Kiosk | IR Touchscreen Panel
Deliver interactive communication and high-impact advertising with this 55-inch floor standing digital signage kiosk. Designed with a sleek vertical full-screen layout and high-precision infrared touch technology, it is an ideal solution for smart retail, public information systems, corporate lobbies, and self-service inquiry applications.
Technical Specifications (55")
| Category | Specification |
|---|---|
| Screen Size | 55 inch |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 260–450 cd/m² (adjustable) |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 178° / 178° |
| Refresh Rate | 60Hz |
| Touch Technology | Infrared Touchscreen |
| Touch Points | Up to 20-point multi-touch (PC) |
| Touch Surface | 3mm Tempered Glass |
| Touch Interface | USB 2.0, HID Driver-Free |
| Operating Systems | Android / Windows / Linux (optional) |
| CPU (Android) | Quad-core Cortex-A55 up to 1.8GHz |
| Memory / Storage | 2GB RAM + 16GB ROM |
| Connectivity | Wi-Fi 2.4GHz, RJ45 LAN |
| Power Supply | AC 110–240V, 50/60Hz |
| Power Consumption | Approx. 95W |
| Standby Power | ≤ 0.5W |
| Lifespan | ≥ 50,000 hours |

Designed for Commercial Spaces
This floor standing kiosk features an ultra-slim narrow bezel design with a premium aluminum alloy frame and reinforced steel rear housing. The integrated active cooling system ensures stable long-term performance in demanding public environments.

High-Precision Infrared Multi-Touch Experience
Equipped with an advanced IR touchscreen panel, this kiosk supports up to 20-point multi-touch under PC systems. Infrared touch provides fast response and excellent compatibility, allowing interaction through finger touch or any opaque object.

The 3mm tempered safety glass surface enhances durability while maintaining a smooth and responsive touch experience.

Clear Full HD Visual Performance
The 55-inch commercial LCD panel delivers sharp 1920 × 1080 resolution with adjustable brightness up to 450 nits. Wide viewing angles ensure content remains clear and vivid even when viewed from the side—perfect for digital advertising and interactive wayfinding.

Smart System & Remote Content Control
The kiosk comes standard with Android 11.0 and supports optional Windows solutions. With built-in Wi-Fi and cloud-based CMS support, users can remotely update content, schedule playback, and manage power settings efficiently across multiple locations.
