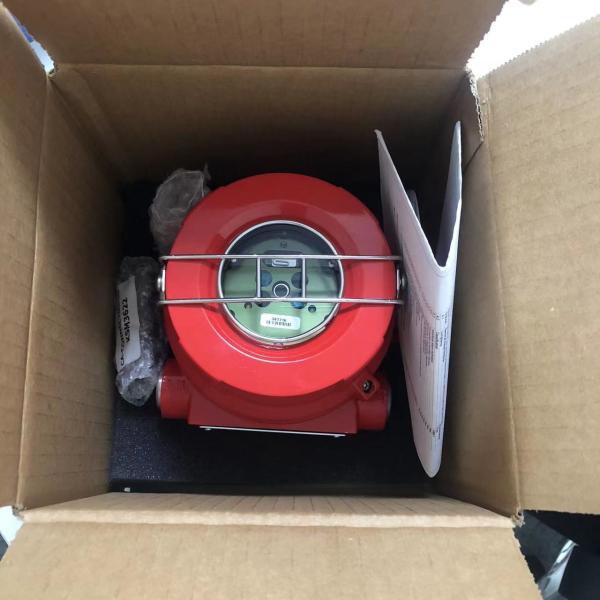

Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
Specifications
Brand Name :
Honeywell
Model Number :
Fs20x
Certification :
CCC
Place of Origin :
USA
MOQ :
1
Price :
USD2000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
1-3Days
Packaging Details :
Original
VOLTAGE :
24 Vdc nominal (18-32 Vdc) - regulated
ALARM :
135 mA @ 24 Vdc nominal
HEATER :
155 mA - additional
LOOP RESISTANCE :
50 - 400 Ohms
TEMPERATURE RANGE Storage :
-55 to +110C (-67 to +230F)
Description
Model Number FS20X
Type
Fire and Flame Detector
Brand Name
HoneywellMultispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2Multispectral IR / Uv Flame Detector Fire Sentry Fs20x - 211 - 21 - 2
  • Estimated Lead Time : 10 - 14 weeks.
  • Manufacturer : Honeywell
  • Product No. : FS20X-211-21-2
  • Product Type : Multi-Spectrum IR And UV
  • Manufacturer´s Code : 2 = Stadard Honeywell Analytics Dtector - Full Window
  • Application : 1 = General Applications
  • Outputs : 1 = Fire, Auxiliary &Fault Relays / 4-20mA /FireBus II / Modbus
  • Options : 2 = Detector with Enclosure
  • Enclosure Types : 1 = Aluminum, ³/4 NPT Conduit Entries
  • Approvals : 2 = FM, cFM, ATEX, IECEx (Class I, Divisions 1 & 2)
  • Field of View : 90° Full 100% Cone of vision, ± 45° from on axis
  • Sensitivity : Very High, High, Medium and Low – Switch Selectable
  • Response Time : 3-5 Seconds to 1 sq. ft. n-Heptane fire at 100 ft., 3-10 Seconds to 1 sq. ft. n-Heptane fire at 200 ft
  • Operating Voltage : 24 VDC nominal (18-32 VDC) - Regulated
  • Power Consumption : Operating: 83 mA @ 24 VDC nominal
  • Alarm : 133 mA @ 24 VDC nominal
  • Dimensions : 12cm x 6.8cm x 3.2cm
  • Weight : 1.6 Kg
  • Shipping weight : 5 Kg
