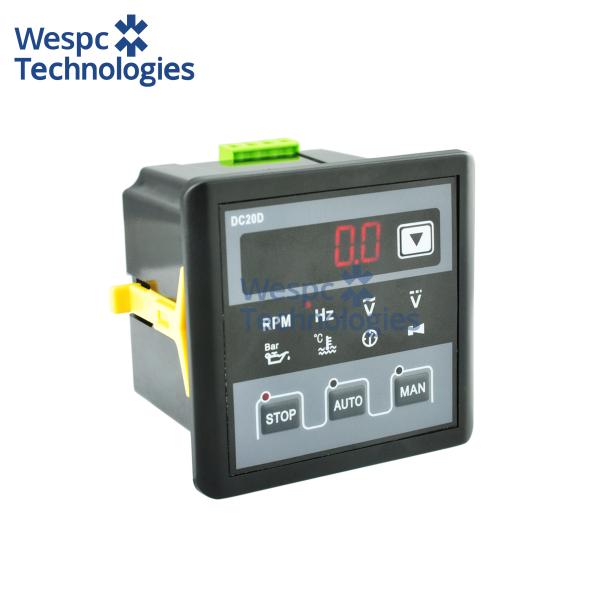

WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
Specifications
Brand Name :
Mebay
Model Number :
DC20D MKII
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
U$31-35（1 piece）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In Stock
Delivery Time :
5-10 Work Days
Packaging Details :
Carton
Stock :
Yes
Packing :
Carton
Single Package Size :
78mm * 78mm * 55mm
Single Gross Weight :
250g
Selling Units :
10 Pieces
Color :
Black
Description

WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel


DC Supply DC 8～36V
Power Consumption MAX 3W
Size 78mm * 78mm * 55mm
Panel cut-out 67mm * 67mm
Operation Temperature -30℃～70℃
Storage Condition -40℃～85℃


Summary

DC20D MK2 is one module used for Diesel/gasoline Generator, It's an upgraded product of DC20D.It is with the functions of Auto Star/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.

The status of the engine and generator can be checked conveniently because these parameters of over speed, under speed, Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.

The output connector is connected with traditional relay which can burden more output current. The parameters can also be set by the front face buttons so that it can be used in different kinds of situations.


Main Features

Micro-computer Control

Man/Auto Start/Stop

5 Units LED tube Display

LED and Fault Alarm Code Indication

Two Group of programmed Relay output

Application for various kinds of Engine by self-setting

With RS485 communication port


Control

Manual Start/Stop

Auto Start/Stop

Preheat Control

Auto idle control

Choke control

E.S.T control


Parameters Display

Engine RPM

Generator Frequency Hz

Generator Phase voltage L-N

Generator current A

Engine battery voltage

Running time

Accumulation time

Engine water temperature

Engine oil pressure
