WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
WESPC Original ATS220 Generator Controller With LED Display
Specifications
Brand Name :
Mebay
Model Number :
ATS220
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pcs
Price :
U$ 39-59(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 days
Packaging Details :
Carton
Application :
Diesel Generator
Type :
Control Panel
Usage :
Generator Parts
Material :
Plastic
Packing :
Carton
MOQ :
10 pcs
Description

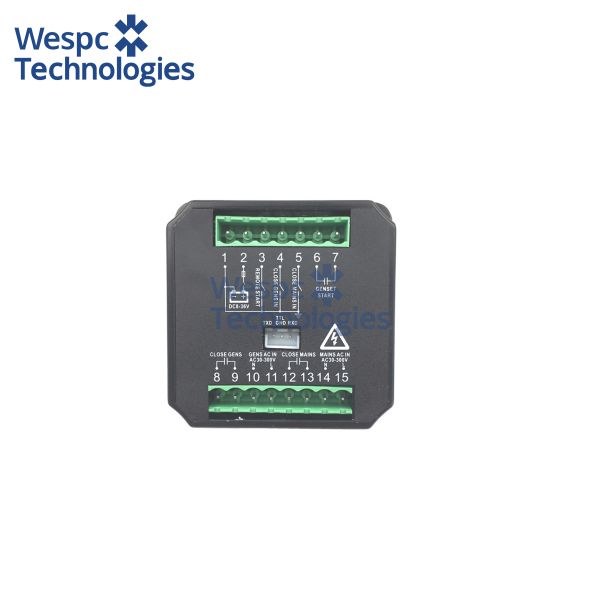

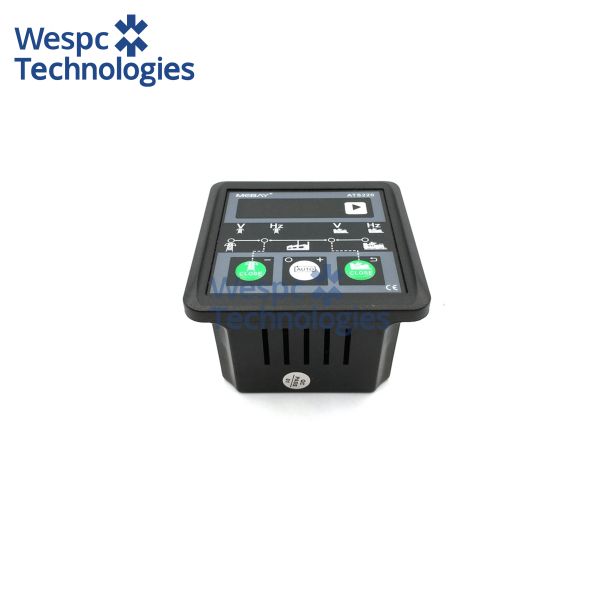

WESPC Original ATS220 Generator Controller With LED Display


Operation Voltage DC8-36V Continuous
Mains AC Voltage Input 30VAC-300VAC(ph-N)
Gens AC Voltage Input 30VAC-300VAC(ph-N)
Gens Close Output 5Amp(AC250V) free output
Mains Close Output 5Amp(AC250V) free output
Switch Value Input Available if connecting with Battery -
Panel Cutout 67mm*67mm
Weight 0.3Kg


Summary

ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency. ATS switch working status can be also shown by LED.

All the parameters can be set through the front face buttons or PC port.


Main Features

32 units Micro-procession technology is used.

Wide voltage range: 8-36V.

4 digits LED tube which can display mains, voltage, frequency.

Totally 7 relay’s output, max current is 5A(250VAC).

1 group programmable switch input.

Parameters can be set by front face buttons.

Standard water-proof rubber, the protection level can reach at IP65;

All the connection are installed by European style terminals.

Simulated mains function, crank conditions can be chosen.



WESPC Original ATS220 Generator Controller With LED Display
