Specifications
Brand Name :
Mebay
Model Number :
DC10K
Certification :
ISO9001
Place of Origin :
China
MOQ :
5
Price :
US $ 30-40(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
4-10 days
Packaging Details :
Carton
Quality :
100% Original
Weight :
0.8kg
Size :
7.8cm * 7.8cm * 7.2cm
Rated Current :
8-33V
Color :
Black
Function :
Intelligent Automatic Generator Controller
Description

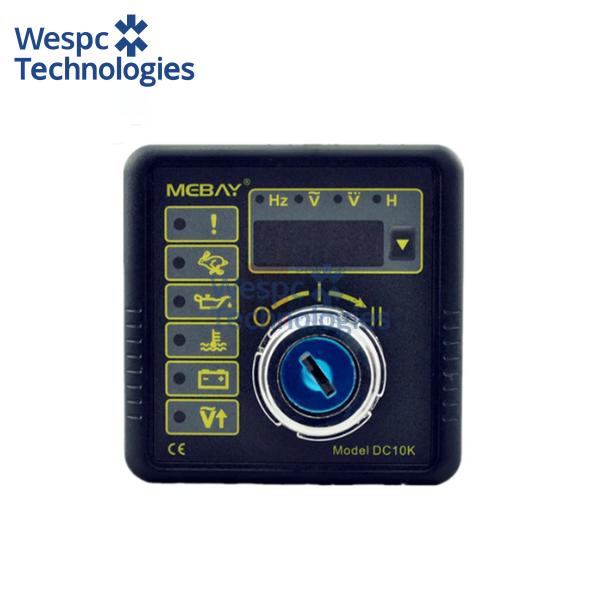

WESPC Original DC10K Diesel Generator Starting Controller Engine Control Unit


Controller DC10K is designed as one of the engine manual start controller.

The Hz,Volt, Battery voltage and accumulation time can be displayed through the front face LED screen. This controller is also with various kinds of stop and alarm indications to monitor the genset status.Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different gensets.


Main Features

32 units Micro-procession technology is used.

The 4 digital LED display can switch automatically or manually.

The starting key is very durable for cars..

It has parameter setting function, and can set parameters through computer connection.

It has a variety of alarm protection functions.

The standard waterproof ring is equipped with splash proof function after installation.

Module design: All the connections are adapted with European connectors so that installation,connection, repair and replacement can be more easily.


Parameters Display

Generator voltage V

Generator Frequency Hz

Battery voltage V

Total running time H


Protection

over speed

under speed

Low oil pressure

High water temperature

External emergency alarm

Over generator voltage

Charging failure



Specification


Options

Parameters

Working voltage

DC8~33V Continuous

Power consumption

Standby:24V:MAX 1W

Working:24V:MAX 2W

AC Voltage Input

1P2W 15VAC-300VAC 50/60Hz

Rotate speed sensor Frequency

300-10000Hz

MAX Accumulating Time

9999.9Hours(Min Store time:6min)

Fuel Relay Output

16 Amp DC+VE Supply voltage

Start Relay Output

10 Amp DC+VE Supply voltage

Alarm output 1

16 Amp DC+VE Supply voltage

Excitation output

Max 80mA DC+VE supply voltage

Switch value input

Available if connecting with Battery -

Working condition

-30-70℃

Storage condition

-40-85℃


Insulation strength


Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall dimension

78mm×78mm×72mm

Panel cutout

67mm×67mm

Weight

280g
