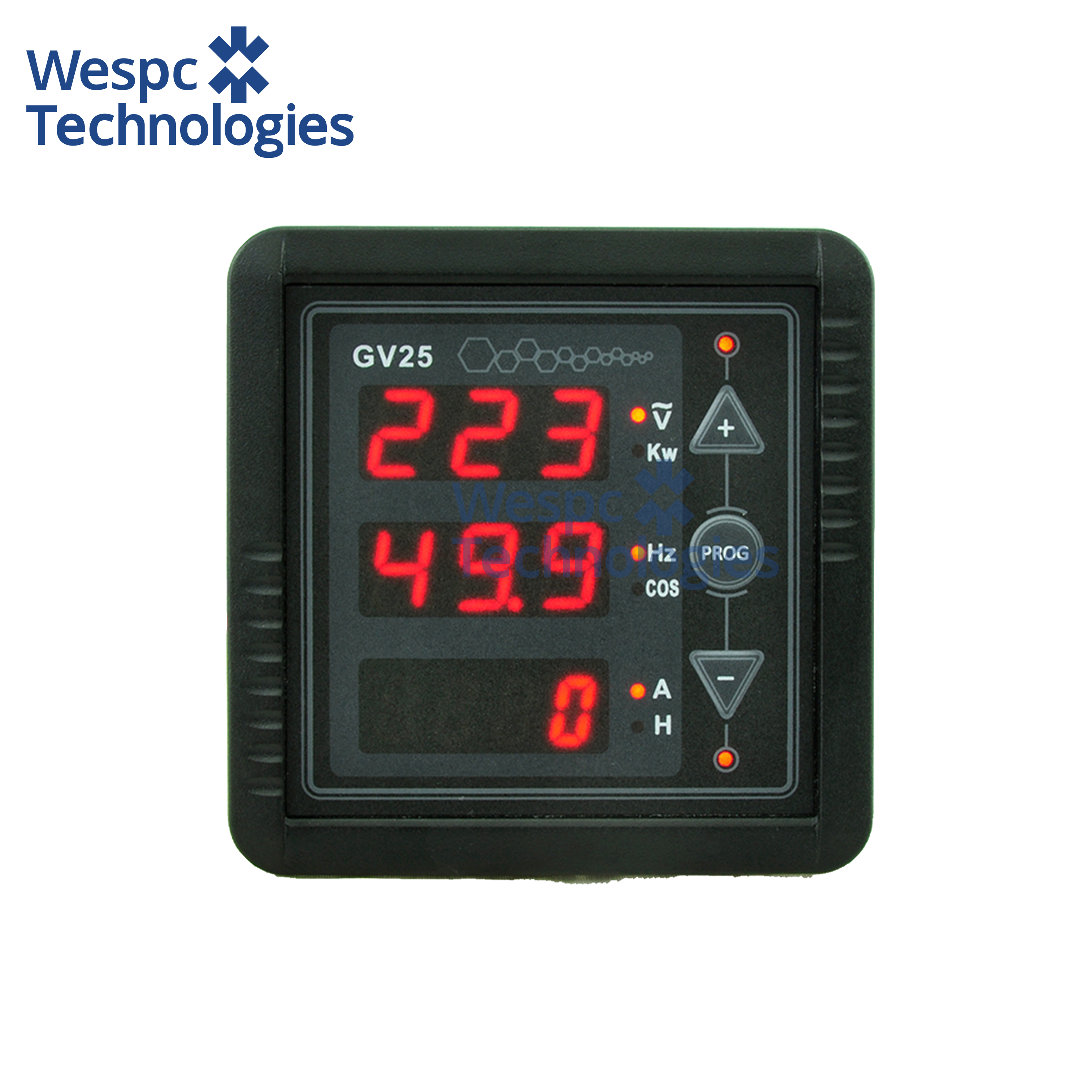

WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
Specifications
Brand Name :
Mebay
Model Number :
GV25 MKII
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
U$ 18-20(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 days
Packaging Details :
Carton
Application :
Diesel Generator
Warranty :
1 Year
Packing :
Carton
MOQ :
10pcs
Stock :
Yes
Color :
Black
Description

WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel


Power 110V,220V system:AC85～265V,50/60Hz
Power 380V system:AC360～440V,50Hz

Consumption

 MAX 1W
Operation temperature -20℃～65℃
Size(W * H * D) 78mm*78mm*63mm
Cutout(W * H) 67mm*67mm
Protection level IP54 (the front face after installation)
Weight 200G


Summary

GV25 MKII is one updated version of GV25 meter for checking and displaying AC Voltage, Frequency, Current, Power, Power Factor and running time with light weight and low cost.It can replace traditional mechanical meter by digital display.


Features

IP54 protection level;

Voltage, Frequency,Current checking and display

3-blanks LED Tube Display

CT Ratio can be set


Parameters display

AC Voltage V

Frequency Hz

Current A

Power Kw

Power COS

Total Running time H


Range and accuracy

Voltage:

110V System: AC90～130V,deviation≤±1%；

220V System: AC165～265V,deviation≤±1%；

380V System: AC360-440V, deviation ≤±1%；

Frequency:

50Hz System: 45-60Hz,deviation≤±0.5%；

60Hz System: 55-65Hz,deviation≤±0.5%；

Current:

CT 5A: 5-6000A,deviation ≤±2.5%；

CT 50mA: 1-200A,deviation≤±2.5%；

Power: deviation ≤±3%,within the range；

Power factor: COS:0-1,deviation≤±1%；

Total Running time: 0.0-9999 hours,min record time: 0.1H.
