WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
Specifications
Brand Name :
Mebay
Model Number :
GM50RE
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
U$ 40-49(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 days
Packaging Details :
Carton
Application :
Diesel Generator
Warranty :
1 Year
Packing :
Carton
MOQ :
10pcs
Stock :
Yes
Color :
Black
Description

WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port


Power DC 8～36 V
Consumption power MAX:1.5 W

Operation Temperature

 -25～65℃
Storage Temperature -40～85℃
Ingress protection IP54(the front face after installation)
Size (W * H * D) 100mm*100mm*77mm
Panel cutout 91mm*91mm
Weight 150 g


Summary

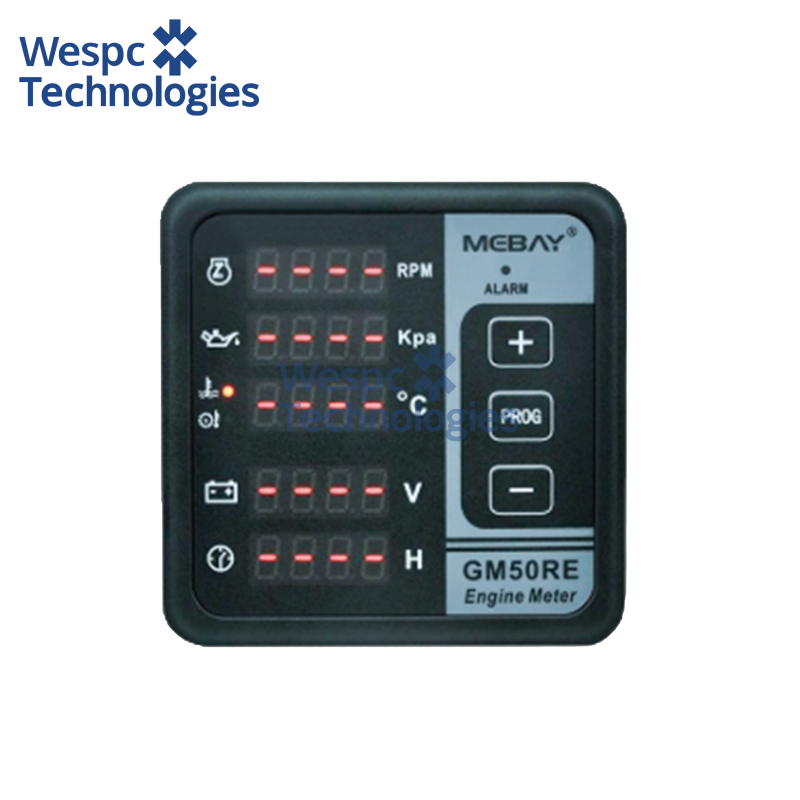

GM50RE is a remote matching instrument of GM50HR and GM50CR. Through RS485 port connection, it can remotely read and display the relevant parameters of the engine. One auxiliary instrument monitors one host to realize real-time synchronization of parameters. The parameters can be adjusted and set through the key to meet the needs of different applications. In addition, European terminal connection is adopted to facilitate the installation and replacement of modules.


Features

32 bit high performance single chip microcomputer

High-light digital tube can demonstrate the parameters

English and symbols demonstration

The parameters can be set and adjusted by the button on the front face.


Parameters Display

Engine RPM

Engine Oil Pressure

Engine Oil Temperature

Engine Cooling Water Temperature

Battery Voltage

Accumulation Time.
