WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency
Specifications
Brand Name :
Mebay
Model Number :
GV57 MK2
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
U$35-38(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 days
Packaging Details :
Carton
Application :
Diesel Generator
Warranty :
1 Year
Usage :
Generator Parts
Material :
Plastic
Packing :
Carton
MOQ :
10pcs
Description

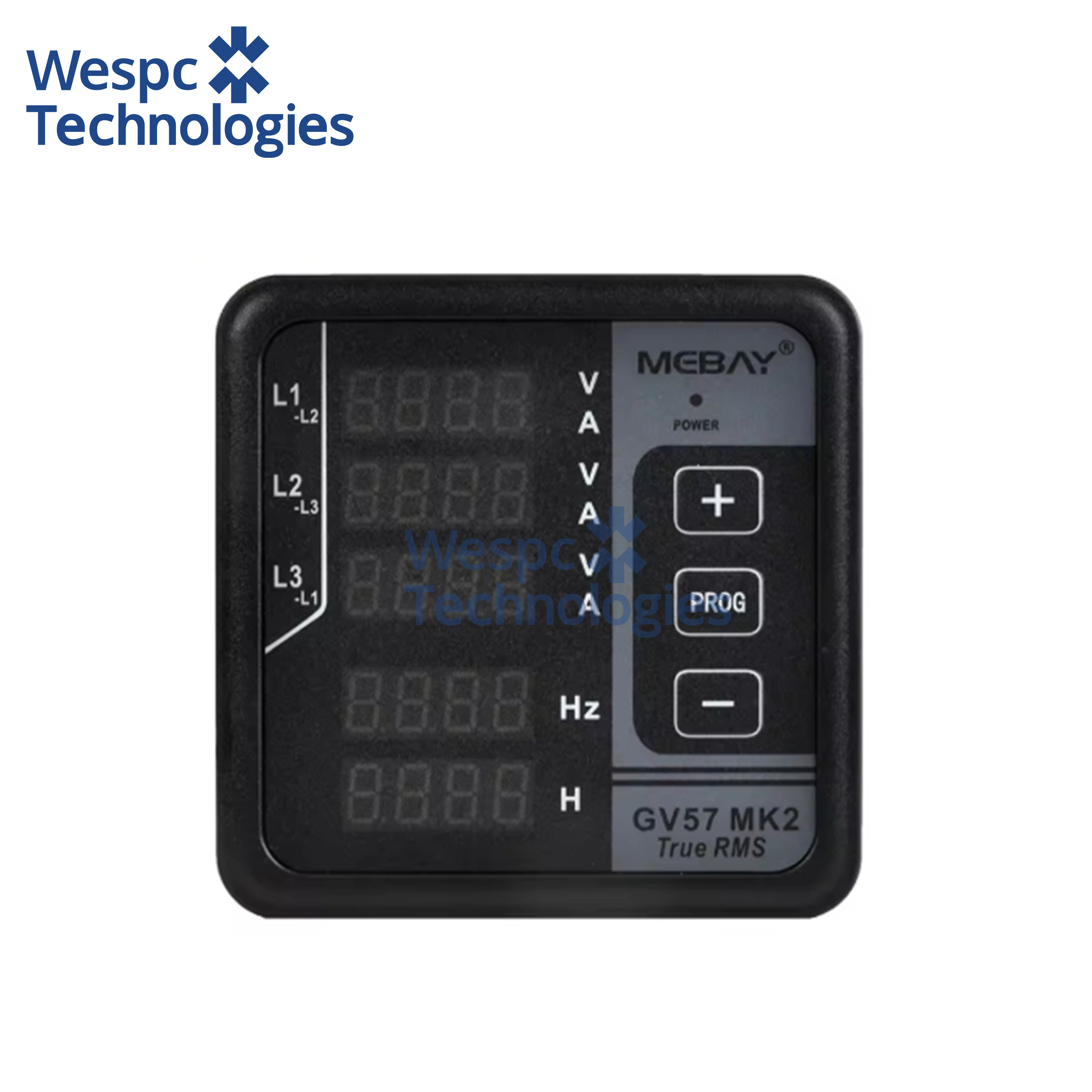

WESPC Original GV57 MK2 Digital Meter 3-Phase Voltage Current Frequency

Model Number GV57 MK2
Consuming power MAX:3 W
Working condition -25-70℃
Storage condition -40-85℃
Panel cutout 91mm*91mm
Weight 0.32kg

Summary

GV57 MK2 is a voltage and current detection instrument for three-phase generator. Five high brightness LED displays relevant
parameters. RS485 communication port can be selected to read more parameters. The system parameters can be set according to the
key, so as to meet the application of different occasions.
There are two models of GV57 MK2 series instruments
GV57 MK2: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;
GV57R MK2: on the basis of GV57 MK2, RS485 port is added to monitor relevant parameters and set parameters through PC software.
Features
Micro-computer Control.
High-lighted LED tube Indication.
Five screens display.
AC power supply.
Configurable AC CT Ratio .
Wide voltage range.
Parameters display
Line Voltage:L1-L2,L2-L3,L3-L1(V)；
Three phase current(A)；
Frequency(Hz)；
Cumulative running time(H);
Average power factor cos Φ (read only through RS485 port);
Power factor cos Φ (read only through RS485 port);
Active power kW (read only through RS485 port);
Reactive power kvar (read only through RS485 port);
Apparent power KVA (read only through RS485 port);
Kwh of the current electric quantity (read only through RS485 port);
Accumulated electric energy kWh (read only through RS485 port);
Range and accuracy
AC voltage:Phase voltage AC30-276V,Deviation≦±1%(within the range)
Current:0-6000A；deviation≦±2%
Frequency:10-70HZ;deviation≦±0.5%;
The average power factor cos Φ: 0-1.0, the error is less than ± 5%;
Power factor cos Φ: 0-1.0, error less than ± 5%;
Active power: 0-1380kw, error less than ± 3%;
Reactive power: 0-1380kvar, error less than ± 3%;
Apparent power: 0-1380kva, error less than ± 3%;
Electric quantity: 0-9999kwh, error less than ± 5%;
Cumulative power: 0-9999kwh, error less than ± 5%;
Cumulative operation time H: 0-99999, error less than ± 5%;
