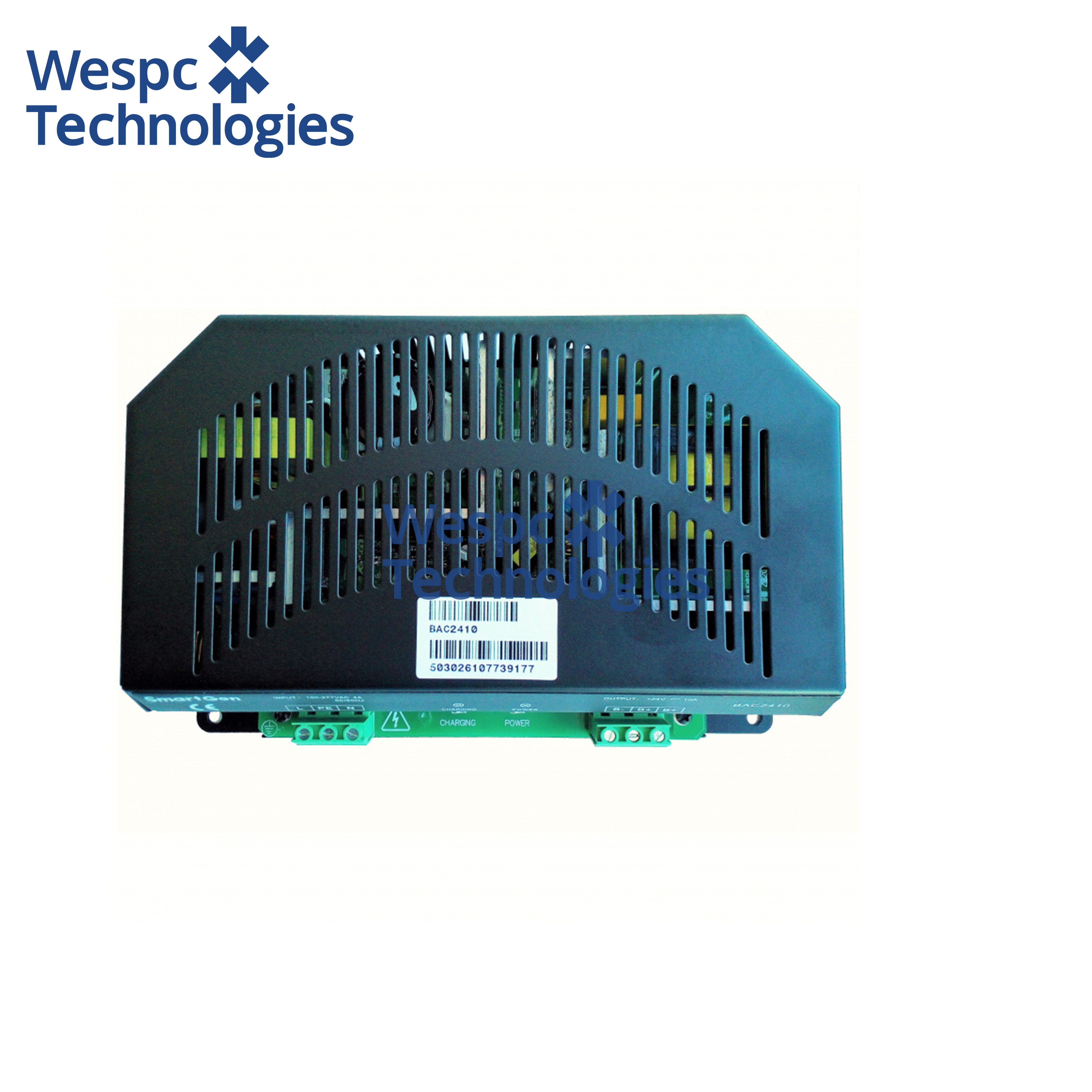

WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit
Specifications
Brand Name :
SMARTGEN
Model Number :
BAC2410
Certification :
CE,RoHS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
U$148-188
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In Stock
Delivery Time :
3-7 work days
Packaging Details :
Carton
Color :
Black
Warranty :
1 Year
Quality :
100% Original
Stock :
Yes
Packing :
Carton
Selling Units :
Single Item
Description

WESPC Original Smartgen BAC2410 Battery Charger 12/24V Smart Float Unit


Size 205.5*131*55mm
Weight 0.2kg
Model Number BAC2410
Brand Name Smartgen
After-sales Service Provided Video Technical Support,Online Support
Markrting Type Ordinary Product
Warranty 1 year
Stock Yes


Technical Parameters:


Battery Voltage 24V
Max. Charging Current 10A
Rated Input Voltage (100~277)V
Max. Input Voltage Range (90~305)V
AC Input Frequency (50/60)Hz
No-Load Power Consumption <3W
Power Factor Compensation ●
Operating Mode Two segments
Maximum Efficiency 88%
Operating Temp. (-30~+55)℃
Storage Temp. (-40~+85)℃
Net Weight(kg) 1.15
Case Dimensions(mm) 205.5*131*55

Product Overview:


Fit with up-to-date power supply device, float charger BAC2410 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.


PERFORMANCE AND CHARACTERISTICS:


1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in PFC circuit can calibrate the power factor above 0.99;
4. Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm;
5. Suitable for 24V storage battery and the rated current is 10A;
6. LED display: Power indication (Green light) and charging indication (Red light).
