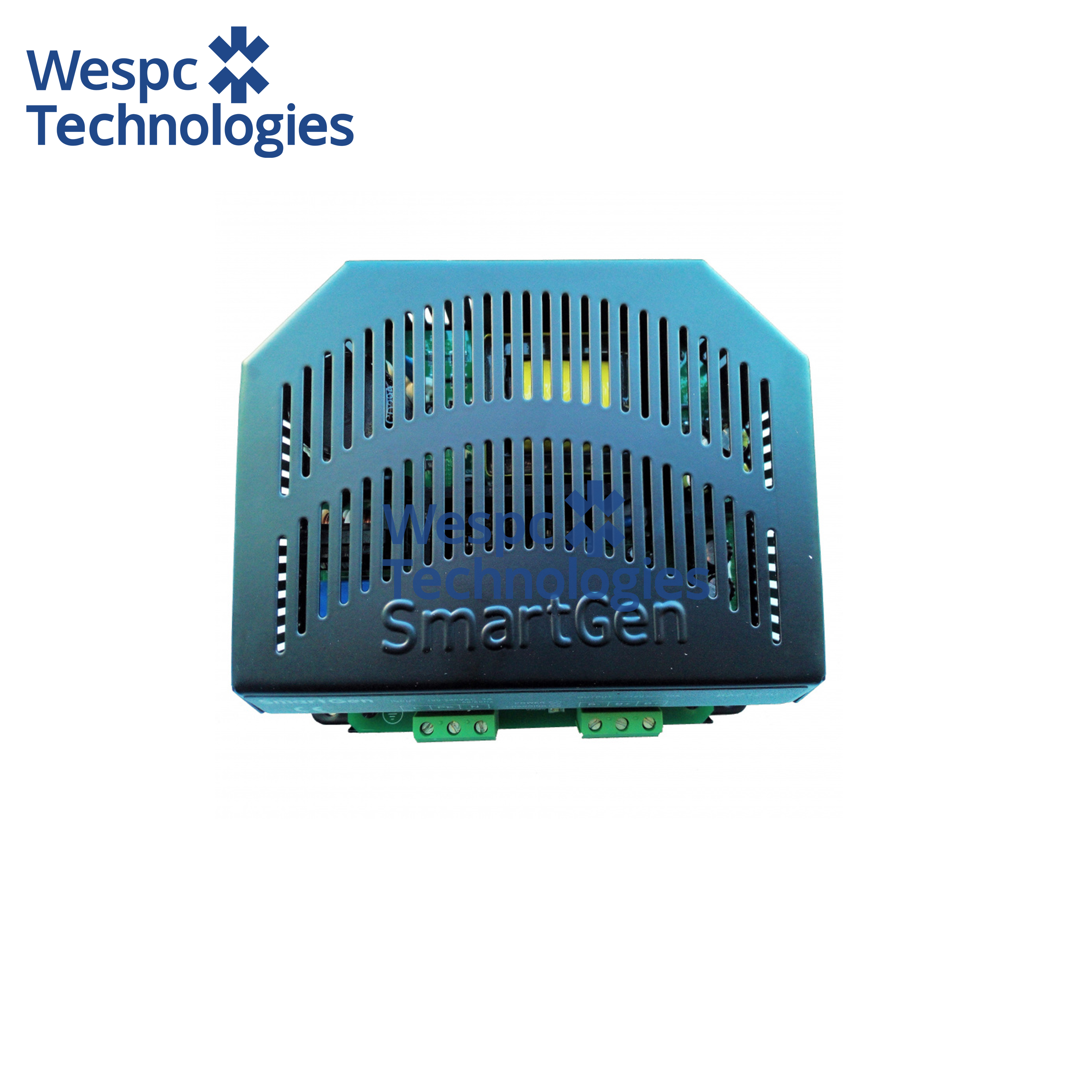

WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
Specifications
Brand Name :
SMARTGEN
Model Number :
BAC1210
Certification :
CE,RoHS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
U$118-148
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In Stock
Delivery Time :
3-7 work days
Packaging Details :
Carton
Color :
Black
Warranty :
1 Year
Quality :
100% Original
Stock :
Yes
Packing :
Carton
Selling Units :
Single Item
Description

WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit


Size 145.5*131*55mm
Weight 0.8kg
Model Number BAC1210
Brand Name Smartgen
After-sales Service Provided Video Technical Support,Online Support
Markrting Type Ordinary Product
Warranty 1 year
Stock Yes


Technical Parameters:


Battery Voltage 12V
Max. Charging Current 10A
Rated Input Voltage (100~240)V
Max. Input Voltage Range (90~280)V
AC Input Frequency (50/60)Hz
Max. Input Current 2.5A
No-Load Power Consumption <3W
Operating Mode Two segments
Maximum Efficiency 83%
Operating Temp. (-30~+55)℃
Storage Temp. (-40~+85)℃
Net Weight(kg) 0.8
Case Dimensions(mm) 145.5*131*55

Product Overview:


Fit with up-to-date power supply device, float charger BAC1210 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS:


Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.
Suitable for 12V storage battery and the rated current is 10A;
LED display: Power indication (Green light) and charging indication (Red light).
