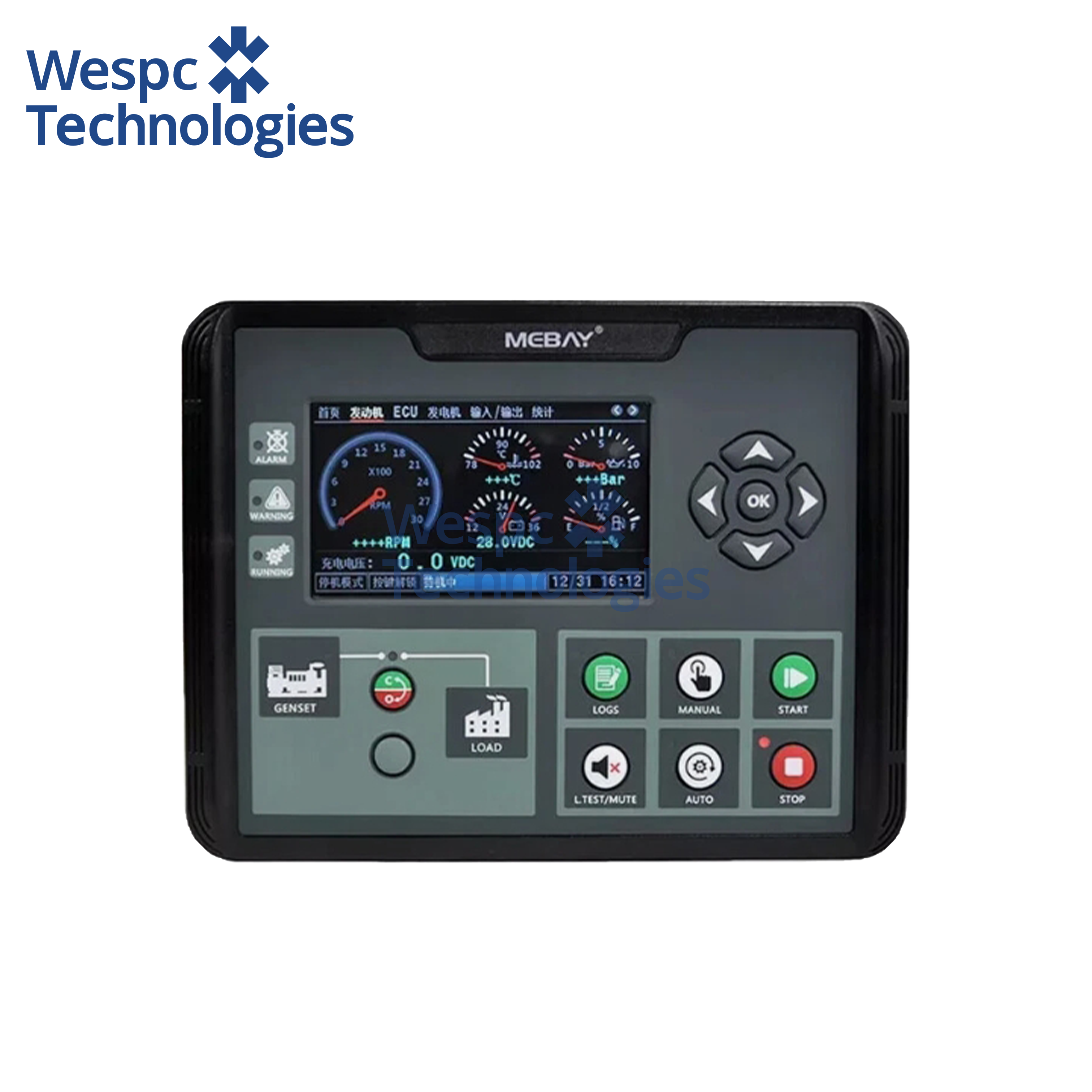

WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board
Specifications
Brand Name :
Mebay
Model Number :
DC70DR MK2
Certification :
Engine Parts
Place of Origin :
China
MOQ :
5
Price :
$109-$129（1 piece）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In Stock
Delivery Time :
5-10 Work Days
Packaging Details :
Carton
Application :
Engine Parts
Color :
Black
Stock :
Yes
Material :
Plastic
MOQ :
5Pieces
Type :
Battery Charger
Description

WESPC Original DC70DR MK2 Diesel Genset Spare Parts Self-Starting Control Board

Working voltage DC8V----36V Continuous
Working condition

-20-65℃
Storage condition -40-85℃
Overall dimension 210mm*160mm*50mm
Panel cutout 186mm*142mm
Weight 0.9Kg

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.

4.3 inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words.Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can not work smoothly.

There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC.It can be widely applied for all kinds of auto control system of gensets.


Main Features

32 units Micro-procession technology is used.

4.3 inch TFT colorful big screen LCD, option language interface(Chinese/English), user’s language set if necessary.

Indicator and number display through UI surface.

Acrylic material is adapted to protect the screen.

Silicone panels;

USB Port: parameters can be set even without power through USB port to monitor in real time.

With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.

CAN communication port, J1939 protocol inside.

Various kinds of parameters display.
