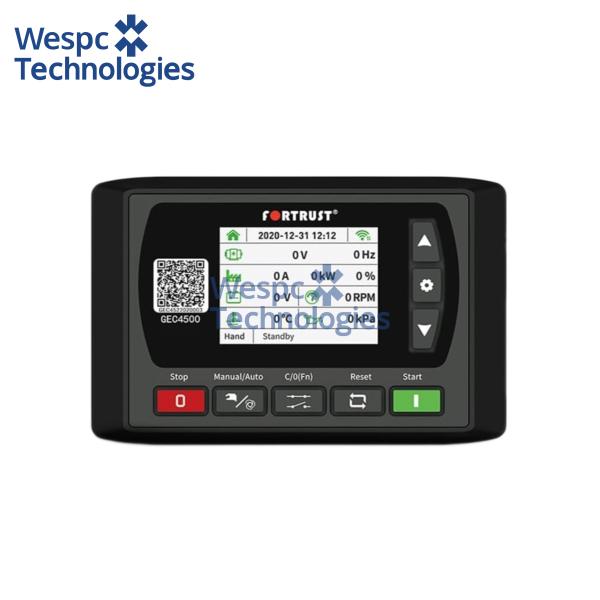

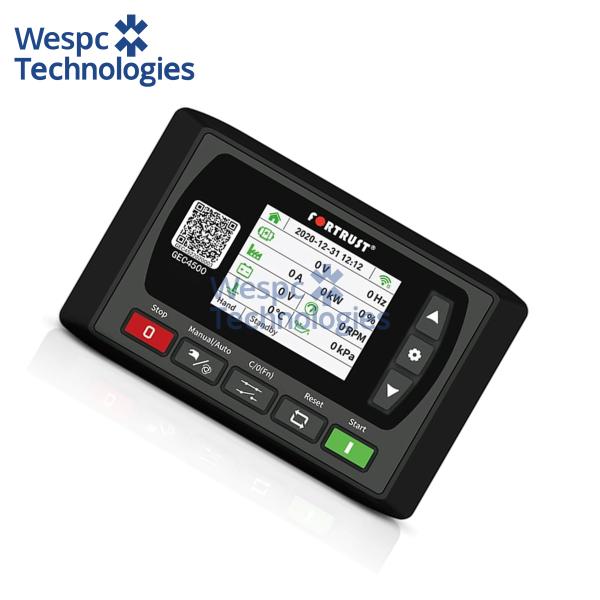

WESPC Original GEC4520-485-CAN-4G Generator Control Panel Auto Mains Failure Controller

GEC4500 Series Generator Controller Models - Technical Specifications

Model Comparison:

GEC4510

• Primary Function: Standalone automation controller

• Control Capability: Automatic startup/shutdown via remote dry contact signals

• Typical Application: Basic single generator set automation systems

• Operation Mode: Local control with status indication

GEC4520

• Enhanced Features:
  • Mains power detection (voltage/frequency monitoring)
  • Automatic transfer switching (AMF functionality)

• System Specialization: Single utility grid + single generator configurations

• Key Advantage: Seamless automatic grid-to-generator power transition

• Protection: Grid failure detection and automatic generator start

GEC4510-4G

• Connectivity: Integrated 4G LTE cellular communication

• Remote Management Functions:
  • Real-time generator unit monitoring
  • Remote start/stop control commands
  • Cloud-based parameter adjustment
  • Startup and fault curve analysis

• Benefit: Complete remote management without physical access requirement

GEC4520-4G

• Premium Feature Set:
  • All GEC4520 AMF functionality
  • 4G cloud connectivity with dual SIM support
  • Comprehensive remote monitoring and control
  • Advanced parameter configuration
  • Performance curve analysis and diagnostics

• Target Application: Advanced automation systems with cloud access capability

Technical Platform Commonality:

• Processor: 32-bit ARM architecture

• Communication Interfaces: RS485 Modbus RTU, USB 2.0

• Display: Multi-language LCD interface

• Design: Compact industrial-grade enclosure

• Mounting: Standard DIN rail or panel mounting

• Environmental Rating: -40°C to +85°C operating temperature

Series Evolution Path:

• Level 1: Basic local automation (GEC4510)

• Level 2: + Grid integration (GEC4520)

• Level 3: + Remote access (GEC4510-4G)

• Level 4: Complete smart grid solution (GEC4520-4G)

Additional Features:

• Built-in real-time clock with battery backup

• Event logging with circular buffer storage

• Programmable relay outputs

• Analog and digital input channels

• Software-based feature activation

The GEC4500 series provides a scalable architecture that maintains hardware consistency while offering progressive functionality upgrades, from basic generator automation to comprehensive smart grid management with advanced remote connectivity options. All models share the same mechanical design and electrical characteristics, ensuring compatibility and ease of system upgrades.
