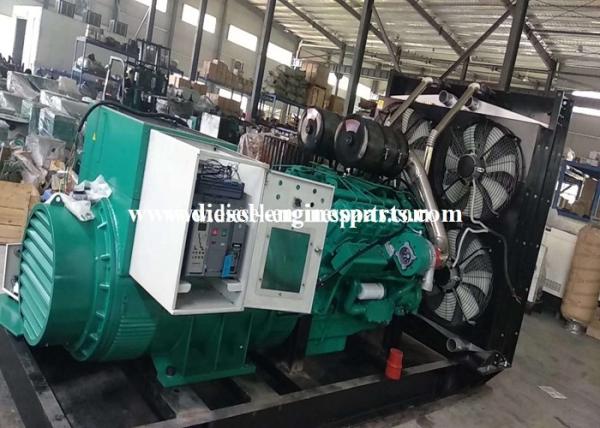

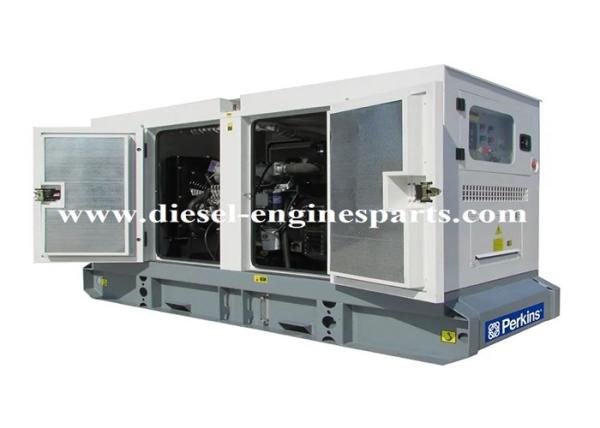

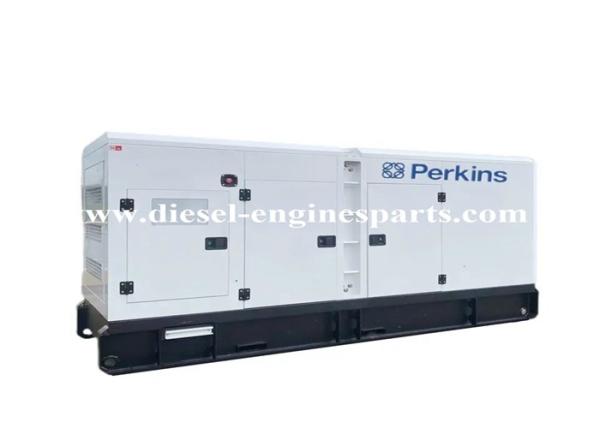

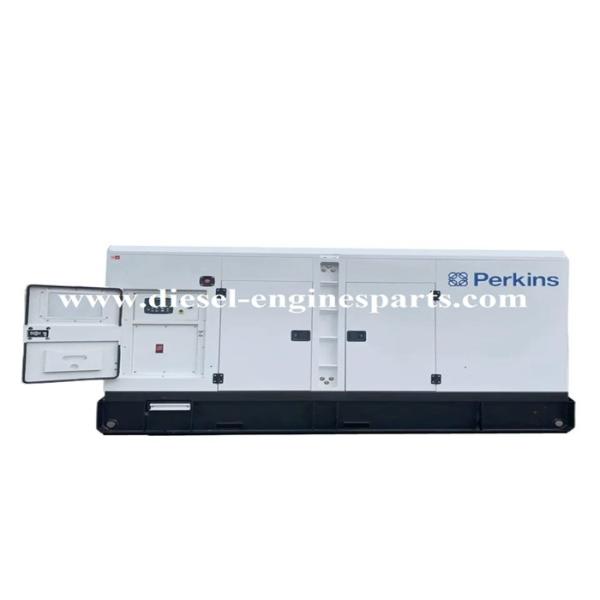

Full new Perkins 200kw Genset Soundproof Diesel Generator Set

1. Professional OEM diesel generator factory

*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: C engine,UK Perkin,Deutz,Steyr, etc.
*Generator with alternator: Stamford, Leroy Somer,Marathon, ,etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel

2. Diesel Generator Set Advantage

*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)

All ratings are at sea level!!!

3. After-sales Service

*1 year or 1800 running hours subject to the earlier one.


4. Our Diesel Generator Set Production Range is as follows

* Engine (motor) for Choice

1. C engine (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. Chinese 8kVA - 150kVA
5. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

5. Terms of Payment
T/T ,Western Union,Cash
