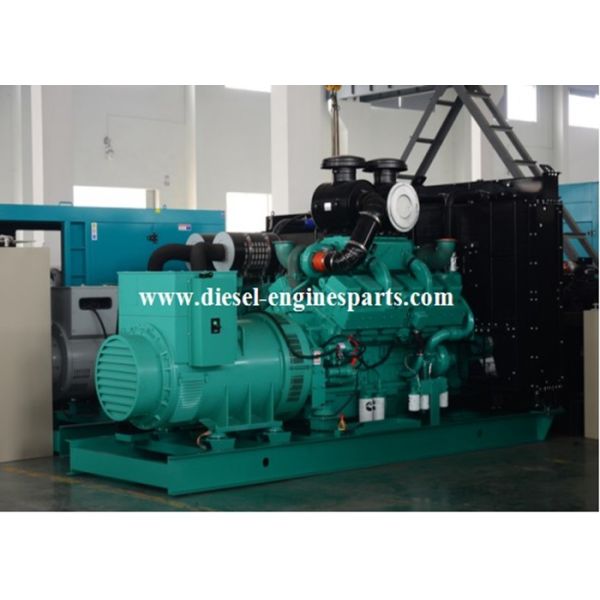

1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
Specifications
Brand Name :
JINGTE
Model Number :
FDC-800GF
CertifiCaterion :
ISO/TS16949
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 78,600 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 piece per month
Delivery Time :
25day
Packaging Details :
neutral packing with wooden box, or as requested
power :
800kw/ 1000KVA
type :
open,Primary use
phase :
50Hz, 4wire, 50Hz
AppliCaterion :
wild area
Cooling :
Water cooler
Usage :
standby using
Packing :
poly bag with wooden box
Delivery :
25 days
Description

Full New Cummins 1000kva Generating Set Container Diesel Generator Set


1. Professional OEM diesel generator factory

2. General features:

  • Engine:Cummins KTA38-G2
  • Alternator:Leroy Somer TAL-A49-B
  • Digital Controller:Deepsea DSE6020
  • Equipped with 45℃ Radiator;
  • Equipped with 24V DC Start motor;
  • Equipped with 3200A Aisikai Brand Circuit Breaker;

n Equipped with vibration Isolators between the engine/alternator and base frame;

n Equipped with high performance maintenance-free lead-acid starting batteries and battery switch;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO9001;

  • Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions
GENSET POWER
Voltage Hz Phase Power Factor Current Standby Power
230V 60HZ 3 0.8 2510A 1000KVA
WEIGHT AND DIEMENSIONS
Size of Genset Open Type 4400*1800*2400mm
Weight of Genset Open Type 7500kg
Size of Genset Silent Type N/A
Weight of Genset Silent Type N/A
ENGINE DATA
Manufacturer/Model CUMMINS KTA38-G2
No. Of Cylinder 12 Cylinders
Cylinder Arrangement L Type
Cycle 4 Stroke
Aspiration Turbocharged,Inter cooling
Combustion System direct Injection
Bore×Stroke 159mm x159mm
Displacement 38 L
Prime Power/Speed 809KW @ 1800rpm
Standby Power/Speed 895KW @ 1800rpm
Speed Governor Electronic
Cooling System Forced water cooling cycle
Steady speed droop ≤1%
Starter Motor DC24V

ALTERNATOR DATA
Manufacturer / Model Leroy Somer TAL-A49-B
A.V.R Included
Frequency/speed 60HZ/1800rpm
Exciter type Single bearing, Brush less, Self-excited
Power factor 0.8
Voltage adjust range ≥5%
Insulation Grade H
Pole No. 4
Protection Grade IP23
Phase / wire 3 phase 4 wires
1000kva Containerised Generator Set ISO9001 Cummins Generator Set
