Specifications
Suitable Machine :
Elematic, Levanto, Ultraspan, Nord Impant, etc
Center Hole :
60mm or as your request
Slot Type and Width :
Key Slot with Width 3mm
Application :
Cutting Prestressed Concrete Hollow Slab
Technology :
Laser Welded
Segment Height :
10/12/15mm
Brand Name :
Johnson Tools
Model Number :
YY
Certification :
SGS,GB
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
500pcs monthly
Delivery Time :
25-30days
Packaging Details :
Plywood
Product Name :
Diamond Circular Saw Blade
Outer Diameter :
900mm
Description

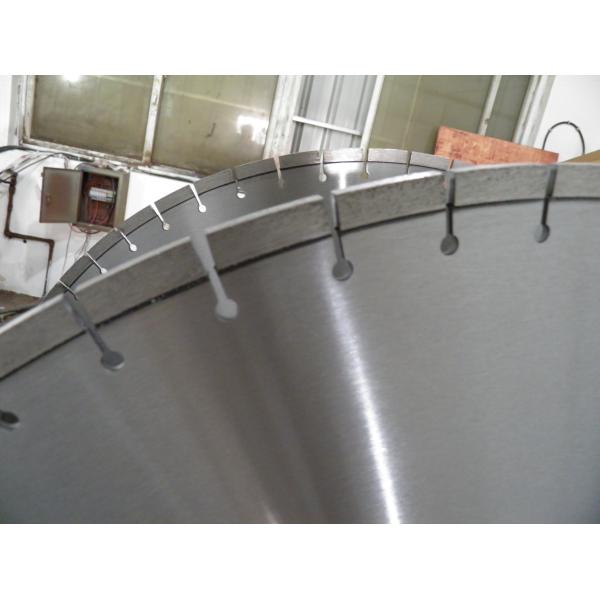

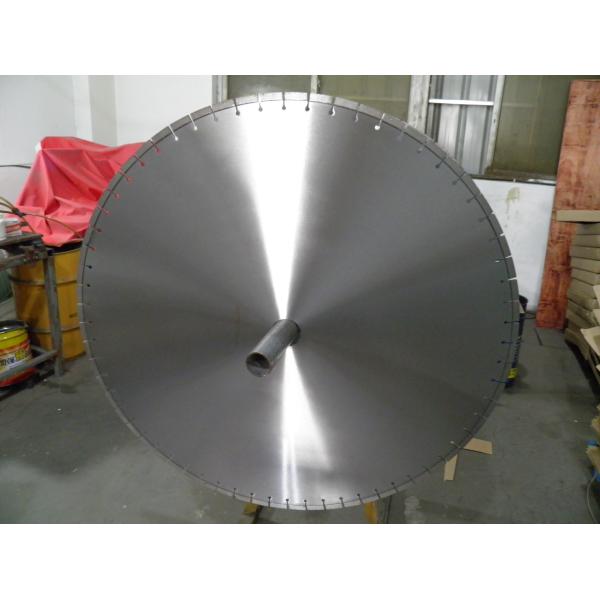

900mm Laser Welded Diamond Blade for Hollow Core Concrete Slab

Description:

Specially design for wet or dry cutting prestressed concrete, Hollow core concrete beds, Precast concrete etc.

Regular diameter size from 600-1500mm. At present, well exported 900mm, 1100mm, 1300mm to South africa, Bahrain, Vietnam, Egypt etc.
Feature:

1) 100% laser welded technology.
2) Wet Cutting.
3) Fits to Precast Prestressed Concrete Machine-Bridge Crane, Prestressed concrete cutting machine.
4) Well exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.

Specification:
Diameter:900mm
Segment thickness:6.5mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm 60mm as your request

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
36" 900 40 6.5 10 64
36" 900 40 6.5 12 64
36" 900 40 6.5 15 64

Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
28" 600 40 4.4 15 42
28" 700 40 6.5 10/12/15 50
32" 800 40 6.5 10/12/15 57
40" 1000 40 7.0 10/12/15 70
44" 1100 40 7.5 10/12/15 74
48" 1200 40 8.0 10/12/15 80
52" 1300 40 8.0 10/12/15 88
56" 1400 40 9.0 10/12/15 95
60" 1500 40 9.0 10/12/15 100

Packing and Shipping:

Each 5pcs 900mm laser welded prestressed concrete blades are packed in one plywood. Gross weight per plywood is limited within 105kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
