10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
10 Inch Concrete Grooving Saw Blade Diamond Engraved Cut Disc For Road Pavement
Specifications
Brand Name :
Johnson Tools
Model Number :
10inch
Place of Origin :
China
MOQ :
≥10 pcs
Price :
negotiate
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
≥10000 pcs
Delivery Time :
8-15work days
Packaging Details :
carton
Product Name :
Roadway Concrete Pavement Grooving Cutter Diamond Cutting Saw Blades
Application :
Concrete Pavement
Advantage :
Fast Cutting and Long Life
Diameter :
256/266mm
Segment :
40x2.4/2.6x10mm
Segment number :
17/18nos
Description

10-Inch Concrete Grooving Saw Blade | Diamond Engraved Cut Disc for Road Pavement

1.Description:

Remove stubborn coatings, epoxies, adhesive residues and old road markings with ease.
Re-profile and level uneven concrete, asphalt or stone substrates in a single pass.
Mill away concrete, asphalt, granite and other mineral surfaces at controlled depths.


Typical applications range from surface stripping, bump cutting and floor flattening to expansion-joint repair, line shaving and livestock-area maintenance.
The laser-engraved blade array is engineered for extreme-duty zones such as airport taxiways, port quaysides and high-volume industrial yards. Standard groove depth is 8–12 mm, blade spacing 12–18 mm, deployed in banks of 50 to 120 pieces. These micro-textured channels boost skid resistance, manage traffic velocity and create clearly defined low-speed corridors.

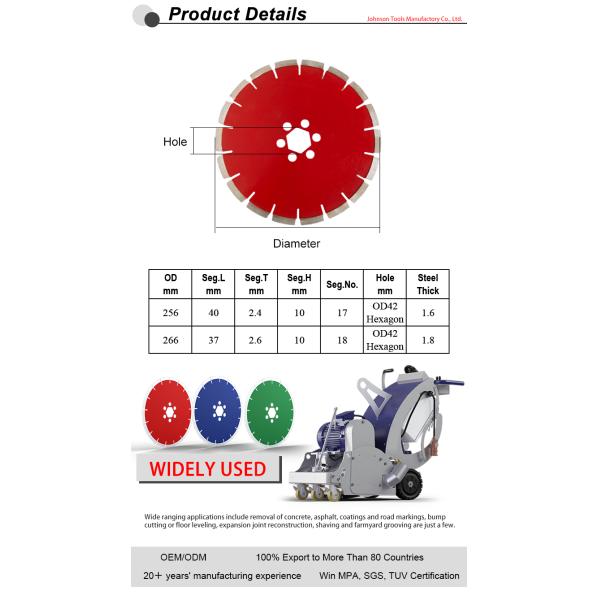

2.Specification:

OD
(mm)
Seg.Thickness
(mm)
Seg.Height
(mm)
Segment Number
(nos)
Hole
(mm)
256 2.4 10 17
OD42
Hexagon
266 2.6 10 18
OD42
Hexagon

3.Application:

The removal blade cluster is engineered for road-surface renewal, arrayed in sets of several dozen up to one hundred units. Saw-blade spacing is ultra-tight—1.2–2.8 mm—to micro-mill the concrete surface. Typical cut depth is 0.8–1.3 cm.
