Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Specifications
Air Speed :
15m/min
Gross Power :
20.5kw
Dimension Of Worktable :
3200*2000mm
Voltage :
220V/380V
Origin :
Jinjiang, Fujian, China
Workable Tilting Angle :
0-85°
Blade Material :
Diamond
Product Type :
Stone Processing Machine
Brand Name :
Xianda Machinery
Model Number :
ZDFT-600B/ZDFT-600BL
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable For Sea Transportation
Delivery Time :
1 Month
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Supply Ability :
1000 Sets/Year
Description
Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V
Product Specifications
Attribute Value
Air Speed 15m/min
Gross Power 20.5kw
Dimension Of Worktable 3200*2000mm
Voltage 220V/380V
Origin Jinjiang, Fujian, China
Workable Tilting Angle 0-85°
Blade Material Diamond
Product Type Stone Processing Machine
Product Overview

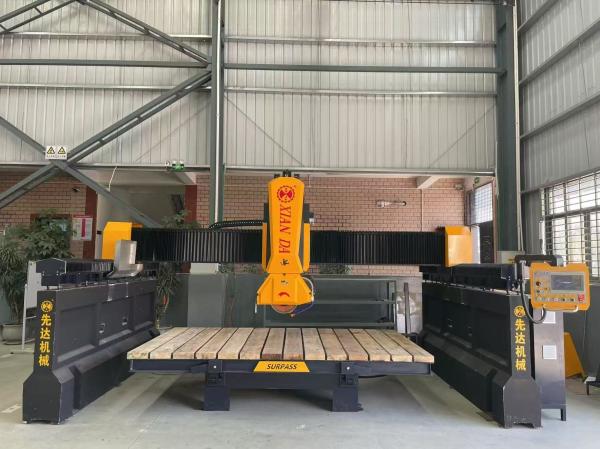

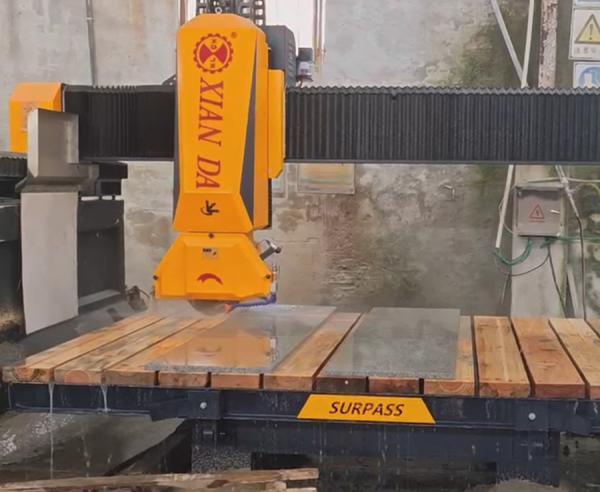

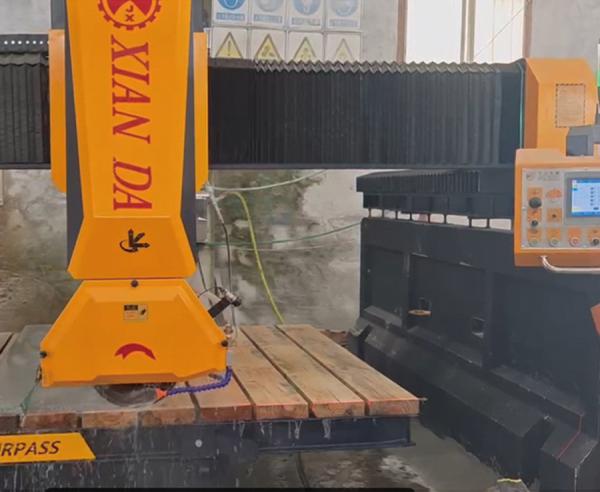

Intelligent Bridge Cutting Machine Split Type High Voltage 220V 380V

This Intelligent Bridge Cutting Machine (split type) features a microcomputer control system for easy operation. Its split structure design allows for convenient and safe loading/unloading. The entire machine structure is processed by CNC gantry machining center and incorporates:

  • High-precision linear guide rails and sliders
  • Grinding-grade ball screws
  • High-end servo systems

These premium components significantly improve equipment stability, processing accuracy, and production efficiency. Ideal for processing various marble and granite slabs with high precision requirements.

Technical Specifications
Parameter Unit ZDFT-600B ZDFT-600BL
Control system type / PLC PLC
Blade diameter mm 350-600 350-600
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*180 3200*2000*180
Worktable tilting degree ° 0,85° 0,85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° Not 0-60°
Main motor KW 22 (Permanent magnet motors) 22 (Permanent magnet motors)
Outline dimension mm 6000*3500*3000 6000*3500*3100
Water consumption m³/h 2 2
Support & Services

Our comprehensive technical support and services include:

  • Installation and setup guidance
  • Troubleshooting assistance
  • Regular maintenance recommendations
  • Software updates and upgrades
  • Training sessions for operators
  • Warranty information and claims processing
  • Spare parts availability
Packaging & Shipping
Product Packaging:

Each Bridge Saw Cutting Machine is carefully wrapped in protective material and securely placed in a sturdy wooden crate to prevent any damage during transportation.

Shipping:

We offer worldwide shipping via reliable freight services. Upon order processing, you'll receive tracking information to monitor your delivery status.
