4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite
Specifications
Brand Name :
Xianda Machinery
Model Number :
Discovery 4-2000/2500/3000
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
Jinjiang, Fujian, China
MOQ :
1 SET
Price :
To Be Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets/Year
Delivery Time :
30 days
Packaging Details :
Plastic Package, Suitable For Sea Transportation
Outline Dimension :
6500*6300*3800mm
Water Consumption :
6m3/H
Power :
5.5kW
Hs Code :
84641090
Application :
Industrial MARBLR,GRANITE Cutting,STONE Cutting
Origin :
Fujian, China
Gross Motor :
11kw
Key Selling Points :
Competitive Price, Automatic,row material
Max Processing Size :
3000*2500*1500mm
Wire Diameter :
0.6-1.8mm
Automation :
Automatic CNC
Wire Length :
15.7m
Control Type :
CNC
Cutting Length :
20-60m
Diameter :
8.5mm to 11.5mm
Cutting Precision :
±0.01mm
Spindle :
15KW
Trolley Size :
1400*2500mm
Adjustment Distance :
450mm
Rated Power :
2.2kw
Description

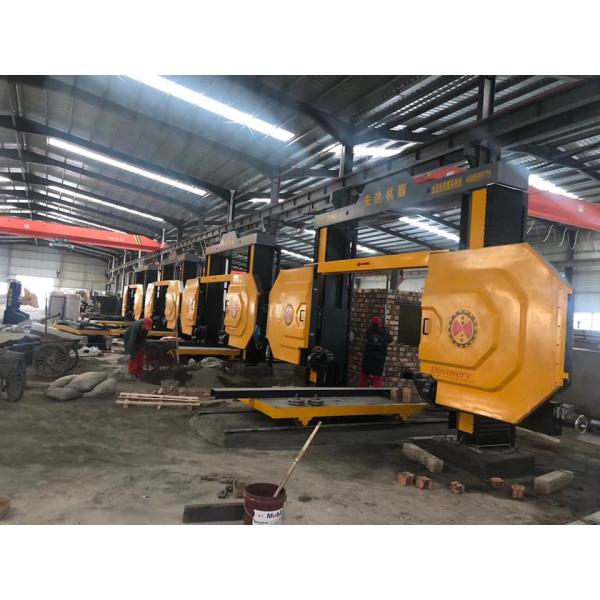

4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble,Granite

Revolutionize Your Cutting Process with Our Advanced 4-Axis CNC Diamond Wire Saw Machine​

In the dynamic world of industrial cutting, precision and efficiency are the keys to success. Our 4-Axis CNC Diamond Wire Saw Machine is engineered to redefine these standards, offering unparalleled performance for stone cutting applications. As a factory direct supplier, we ensure that you receive top-quality equipment at competitive prices, backed by comprehensive technical support and after-sales service.​
4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite

Unmatched Features and Superior Performance​

  • Precision CNC Control: Equipped with a state-of-the-art 4-axis CNC system, our wire saw machine enables highly accurate cutting with minimal errors. The advanced control system allows for precise adjustment of cutting speed, wire tension, and depth, ensuring consistent and high-quality results every time. Whether you are working on intricate designs or large-scale projects, our machine delivers the precision you need to meet your production goals.​
  • High-Speed Cutting: With a powerful motor and optimized wire drive system, our diamond wire saw machine can achieve high cutting speeds, significantly reducing production time and increasing productivity. The high-speed cutting capability, combined with the machine's stability and reliability, makes it an ideal choice for high-volume cutting operations.​
  • Versatile Cutting Applications: Our 4-axis CNC diamond wire saw machine is designed to handle a wide range of materials, including stone. From marble and granite,our machine can cut through various materials with ease, making it a versatile solution for different industries.​
  • Durable and Reliable Construction: Built with high-quality materials and components, our wire saw machine is designed to withstand the rigors of industrial use. The robust frame and advanced cooling system ensure long-term stability and reliability, minimizing downtime and maintenance costs. Additionally, the machine's user-friendly interface and intuitive controls make it easy to operate, even for inexperienced users.

  • Technical Specifications

  • Parameter Unit Discovery-2000 Discovery-2500 Discovery-3000
    Max processing size mm 2000*3000*1500 2500*3000*1500 3000*3000*1500
    Wheel diameter mm 1600 1600 1600
    Trolley size

    mm

    		 1400*2500 1400*2500 1400*2500
    Table bearing size T 20 20 20
    Wire speed m/s 20-40 20-40 20-40
    Main motor kw 11 11 11
    Outline dimension mm 6800*6300*3950 7800*6300*3950 8800*6300*3950
    Gross weight kg 6000 6250 6500
    Water consumption m³/h 3 3 3

  • Applications​

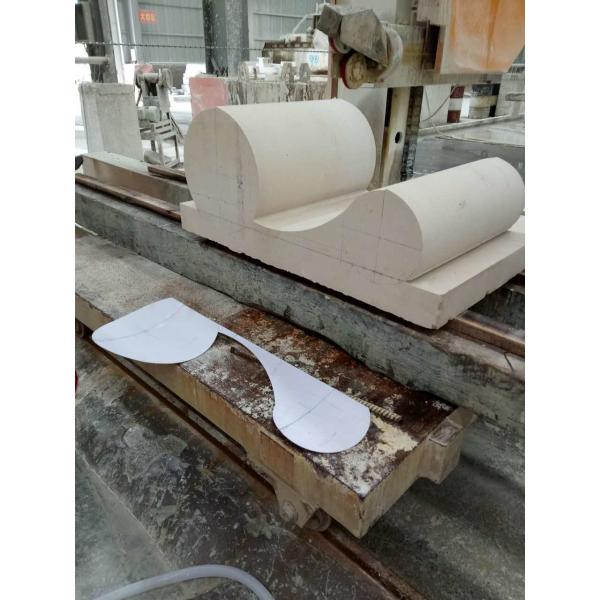

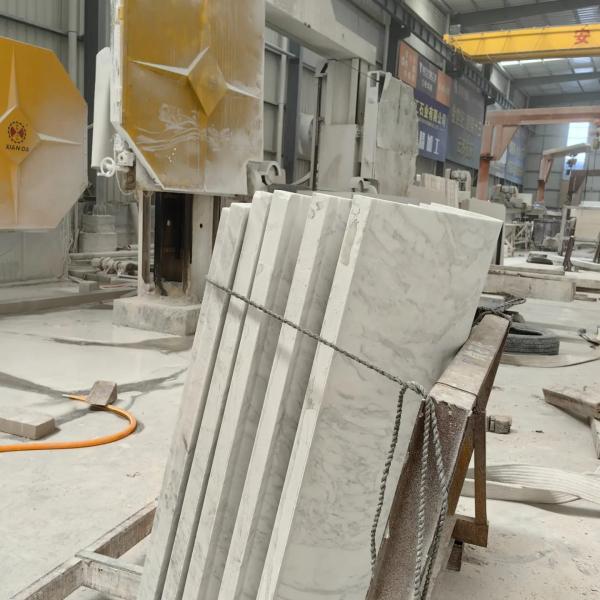

    • Stone Industry: Ideal for cutting marble, granite, quartz, and other natural and engineered stones. Our machine can be used for slab cutting, block profiling, and custom stone fabrication, enabling you to create intricate designs and shapes with ease.
    • Why Choose Us?​
      • Factory Direct Pricing: As a manufacturer, we eliminate the middleman and offer our products directly to you at competitive prices. This allows you to save on costs without compromising on quality.​
      • Customization Options: We understand that every customer has unique requirements. That's why we offer customization options for our 4-axis CNC diamond wire saw machines. Whether you need a specific cutting capacity, a customized control system, or additional features, our team of experts can work with you to design a machine that meets your exact needs.​
      • Technical Support and Training: Our team of experienced technicians is available to provide technical support and training for our products. From installation and commissioning to maintenance and repair, we are committed to ensuring that your machine operates at peak performance.​
      • Quality Assurance: We adhere to strict quality control standards to ensure that all our products meet the highest levels of quality and reliability. Our machines are tested and certified to meet international standards, giving you peace of mind knowing that you are investing in a high-quality product.

      Customer Support Comprehensive Training: Our team provides in-depth training for your operators, covering machine operation, programming, maintenance, and troubleshooting. This ensures that your staff can fully utilize the machine's capabilities and maintain optimal performance. After-Sales Service: We offer prompt and reliable after-sales support, including technical assistance, spare parts supply, and regular maintenance services. Our dedicated customer service team is always ready to address your concerns and provide timely solutions to any issues that may arise.
