CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
CNC Diamond Wire Saw Stone Cutting Machine For Profiling
Specifications
Brand Name :
XIANDA MACHINERY
Model Number :
CNC-2000/2500/3000
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
Jinjiang, Fujian, China
MOQ :
1 SET
Price :
To Be Negotiable
Payment Terms :
L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability :
1000 Sets/Year
Delivery Time :
1 Month
Packaging Details :
Plastic Package, Suitable For Sea Transportation
Cutting Materials :
Marble, granite, quartzite, sandstone, and other natural/synthetic stones.
Main Motor Power :
11kw
Wire Speed :
20-40m/s
Wire Diameter :
Φ8 mm – Φ11.5 mm (diamond-coated wire for precision cutting)
Wire Length :
Standard lengths: 14.7m 15.7m 16.7m
Worktable Size :
Models: 3000×2000 mm, 4000×2500 mm, 5000×3000 mm (custom sizes available).
Worktable Load Capacity :
Up to 15Theavy-duty structural design).
Worktable Rotation :
360° continuous rotation for multi-angle profiling.
Cutting Mode :
Dry cutting or wet cutting
Cutting Precision :
Tolerance: ±0.1 mm (high-precision linear guides and ball screws).
Application Scenarios :
tone fabrication, architectural decoration, tombstone carving, sculpture manufacturing, and industrial stone processing.
Wheel diameter :
1600mm
Gross weight :
5500kg
Water consumption :
3m³/h
Description

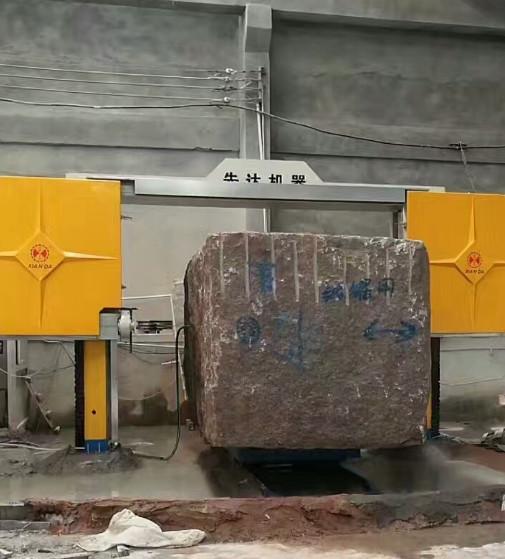

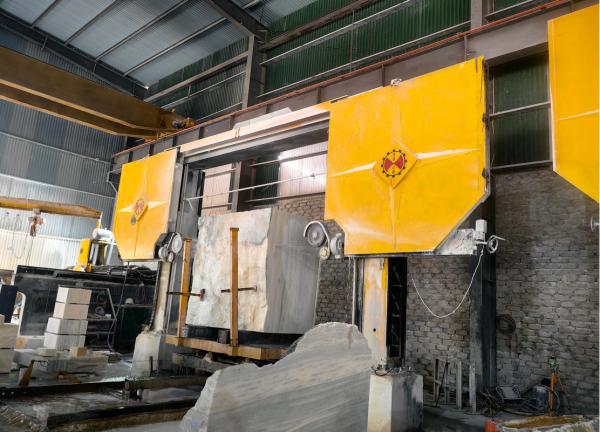

CNC Diamond Wire Saw Stone Cutting Machine for profiling

Revolutionize Your Stone Profiling with Our CNC Diamond Wire Saw Stone Cutting Machine​​
CNC Diamond Wire Saw Stone Cutting Machine For ProfilingCNC Diamond Wire Saw Stone Cutting Machine For ProfilingCNC Diamond Wire Saw Stone Cutting Machine For ProfilingCNC Diamond Wire Saw Stone Cutting Machine For Profiling
Technical parameter
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000*3000*1500 2500*3000*1500 3000*3000*1500
Wheel diameter mm 1600 1600 1600
Trolley size mm 1300*2500 1300*2500 1300*2500
Table bearing weight T 15 15 15
Main motor kw 11 11 11
Wire speed m/s 20~40 20~40 20~40
Outline dimension mm 6800*6300*3800 7800*6300*3800 8800*6300*3800
Gross weight kg 5500 5750 6000
water consumption m³/h 3 3 3
Unmatched Precision​
Powered by an advanced CNC system, our machine ensures cutting precision within ±0.1mm. Whether you're working on intricate tombstone carvings or large - scale architectural decorations, the high - precision linear guides and ball screws guarantee flawless results every time.​
High - Speed and Versatile​

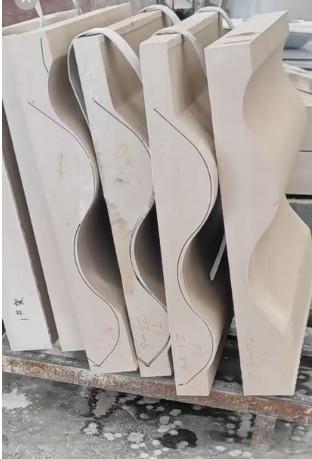

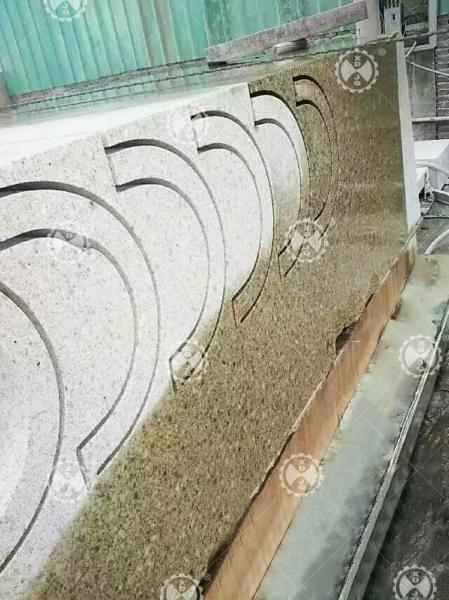

With a variable wire speed of 20-40 m/s and the ability to cut a wide range of materials including marble, granite, and quartzite, this machine boosts your productivity. The 360° rotating worktable enables multi - angle profiling, while the maximum cutting size of up to 3,000×3,000×1,500mm (L×W×H) accommodates various project scales and accept customized processing size.​
Robust and Reliable​
Featuring a main motor power of up to 11KW and a worktable load capacity of 15T, our cutting machine can handle heavy - duty tasks with ease. You can choose between dry and wet cutting modes, and the optional dust collection or water recycling system ensures a clean and sustainable operation.​
Customizable Solutions​
Available in multiple models with customizable worktable sizes and wire lengths, our CNC diamond wire saw machine caters to your specific needs.​
Upgrade your stone profiling process today. Contact us for a quote and witness the future of stone cutting technology!
