Specifications
Gross Weight :
7500kg
Outline Dimension :
5800*3650*3900mm
Gross power :
30kw
Product Name :
Bridge Cutting Machine
Blade Diameter :
350-600mm
Safety System :
Available
Water Consumption :
3m3/H
Table Movement :
Automatic
Brand Name :
Xianda Machinery
Model Number :
Create 450/600
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Delivery Time :
1 month
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Supply Ability :
1000 Sets/Year
Description
5 Axis Linkage CNC System Bridge Cutting Machine With Memory Function For Power Off
Product Attributes
Attribute Value
Gross Weight 7500kg
Outline Dimension 5800*3650*3900mm
Gross power 30kw
Product Name Bridge Cutting Machine
Blade Diameter 350-600mm
Safety System Available
Water Consumption 3m3/H
Table Movement Automatic
Product Description

The 5 Axis Bridge Cutting Machine features a 5 Axis linkage CNC System Control with bus-based absolute value servo (including memory function for power off). It incorporates high-precision linear guide rails, ball screw transmission, and oil-immersed track structure, offering multiple functions, high precision, and strong stability.

With its powerful 30kw gross power, this machine cuts through stone materials quickly and efficiently, significantly reducing labor costs and processing time.

Applications

This versatile machine performs various processing functions including:

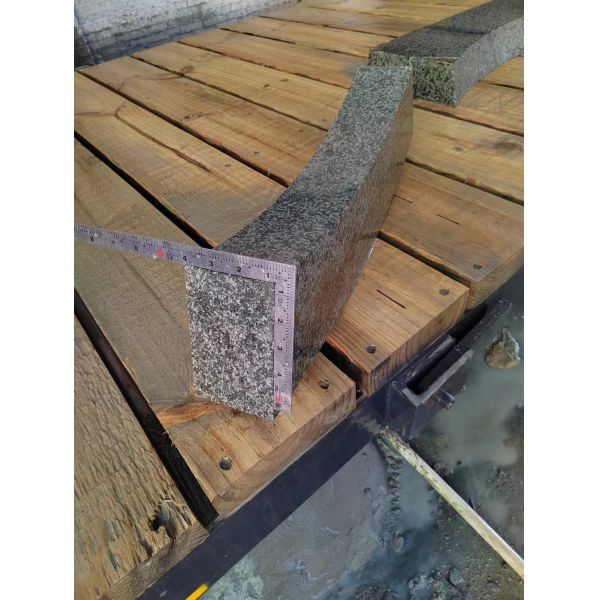

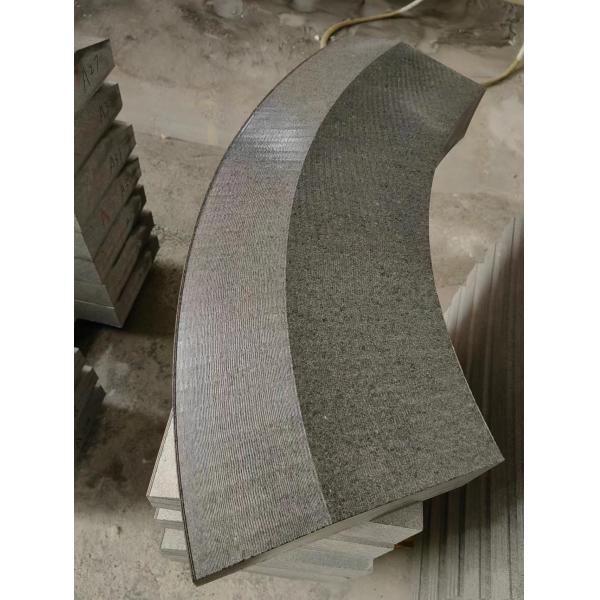

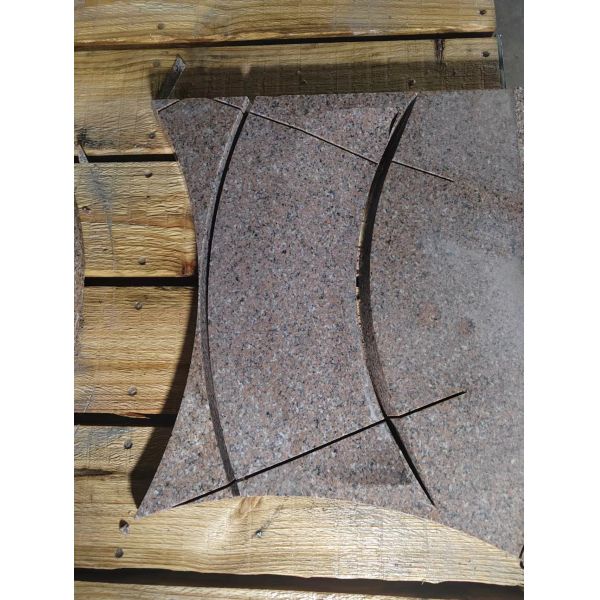

  • Arbitrary-shaped lines and fan-shaped plates
  • Wash basin and special-shaped edge profiling
  • Precision cutting of granite, marble, and quartz

Ideal for construction, architecture, and interior design applications, the equipment combines multiple processing functions with compact dimensions and simple operation.

Technical Parameters
Parameter Unit Create 450 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200*2000*120 3400*2000*180
Lifting stroke mm 300 500
Worktable size mm 3200*2000 3400*2000
Table tilting degree ° 0-85° 0-85°
Head rotating degree ° 0-360° 0-360°
Head tilting degree ° 0-90° 0-90°
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5 (permanent magnetic synchronous motor) 22 (permanent magnetic synchronous motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600*3600*3500 5800*3650*3900
Gross weight kg 6000 7500
5 Axis Linkage Cnc System Bridge Cutting Machine With Memory Function For Power Off
5 Axis Linkage Cnc System Bridge Cutting Machine With Memory Function For Power Off
5 Axis Linkage Cnc System Bridge Cutting Machine With Memory Function For Power Off
5 Axis Linkage Cnc System Bridge Cutting Machine With Memory Function For Power Off
Support and Services

Our experienced technicians provide comprehensive support including:

  • Remote and on-site installation assistance
  • Operator training programs
  • Troubleshooting and maintenance services
  • Regular maintenance to prolong machine lifespan
  • Availability of genuine spare parts and upgrades

We ensure your Bridge Cutting Machine maintains optimal performance through ongoing support and technological updates.
