Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function
Specifications
Brand Name :
Xianda Machinery
Model Number :
Expand 450/Expand 450FA
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Delivery Time :
1 month
Payment Terms :
L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability :
1000 Sets/Year
Warranty :
1 Year
Product Name :
Bridge Cutting Machine
Table Movement :
Automatic
Water Consumption :
3m3/H
Power Supply :
AC
Main power :
15kw
Safety System :
Available
Outline Dimension :
5000*3100*2700mm
Description

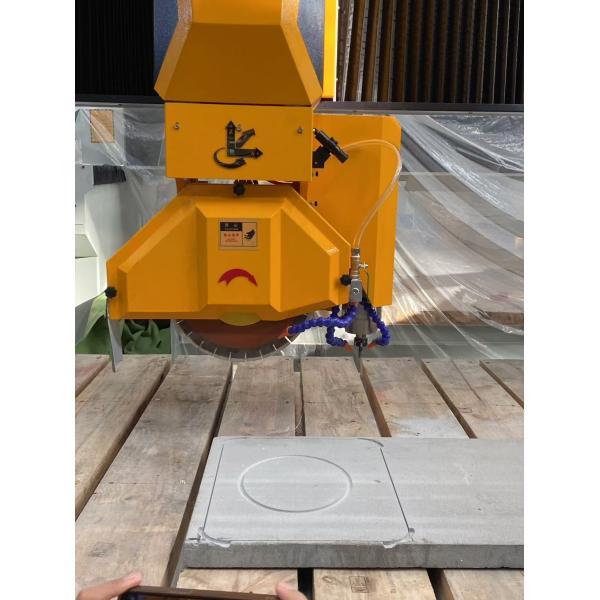

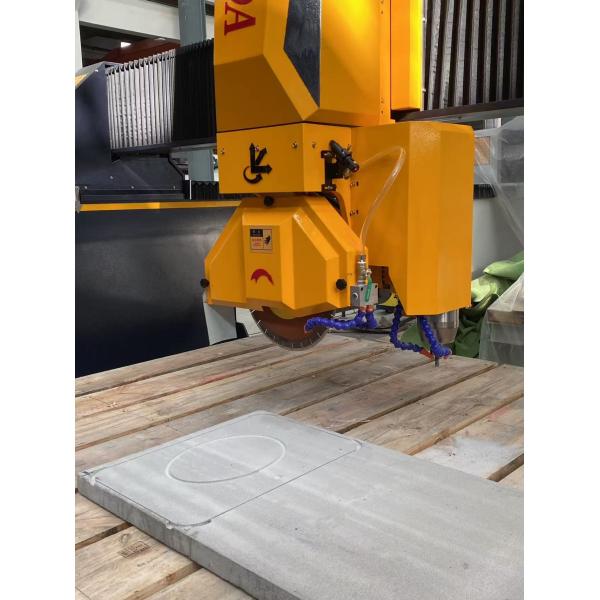

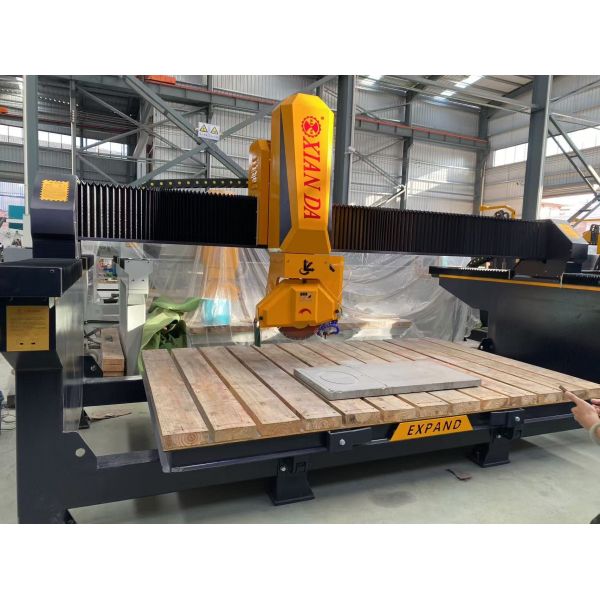

Automatic CNC 4 Axis Bridge Stone Cutting Machine with multi-function

Product Description:

The Bridge Cutting Machine is perfect for cutting marble and other stones. It is a versatile machine that can be used for a variety of cutting applications. Its blade diameter of 350-450mm makes it an ideal choice for cutting through even the toughest of materials. The water consumption of 3m3/H ensures that the blade stays cool and lubricated throughout the cutting process, which ensures that the quality of the cuts is always high.

Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-functionAutomatic CNC 4 Axis Bridge Stone Cutting Machine Multi-functionAutomatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function

Automatic CNC 4 Axis Bridge Stone Cutting Machine Multi-functionAutomatic CNC 4 Axis Bridge Stone Cutting Machine Multi-function

Technical Parameter

Parameter Unit Expand 450 Expand 450FA
Control system type / 4 Axis System Normal 5 Axis System
Blade diameter mm 350-450 350-450
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*100 3200*2000*100
Worktable tilting degree ° 0-85° 0-85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° 0-45° 0-45°
Main motor power kw 15 15
Outline dimension mm 5000*3100*2700 5000*3100*2700
Water consumption m³/h 3 3

Applications:

  • Granite cutting for kitchen and bathroom countertops
  • Marble cutting for floors, walls, and decorative features
  • Bridge cutting for larger slabs and projects

Support and Services:

- Installation and setup assistance

- Training for operators and maintenance personnel

- Troubleshooting and repair services

- Spare parts and accessories replacement

- Regular maintenance and calibration services

- Software upgrades and updates

- Remote technical support through phone or email

- On-site technical support upon request

Packing and Shipping:

Product Packaging:

The Bridge Saw Cutting Machine will be carefully packaged in a sturdy wooden crate to ensure safe transportation. The machine will be wrapped in protective material and secured to prevent any damage during shipping.

Shipping:

The Bridge Saw Cutting Machine will be shipped via a reputable carrier, such as FedEx or UPS. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer upon purchase.
