Specifications
Brand Name :
xianda
Model Number :
ZDQJ-450/600/700
Certification :
CE SGS ISO
Place of Origin :
CHINA
MOQ :
1
Price :
USD 13500
Payment Terms :
T/T
Supply Ability :
1000sets/year
Delivery Time :
20days
Packaging Details :
International Transport Packaging Standards
Blade Material :
Diamond
Use :
block cutter,granite and marble
Condition :
New
Max Processing Size :
3200*2000*100/170/270
Key Words :
Stone Machine
Color :
White and Yellow
Grade :
A-GRADE,Customer's Request
Automation :
Automatic
Warranty :
1 Year
Origin :
Jinjiang, Fujian, China
Advantage :
High Efficiency Long Life Time
Usage :
Metal Cutting
Specification :
5850*4750*3400
Description

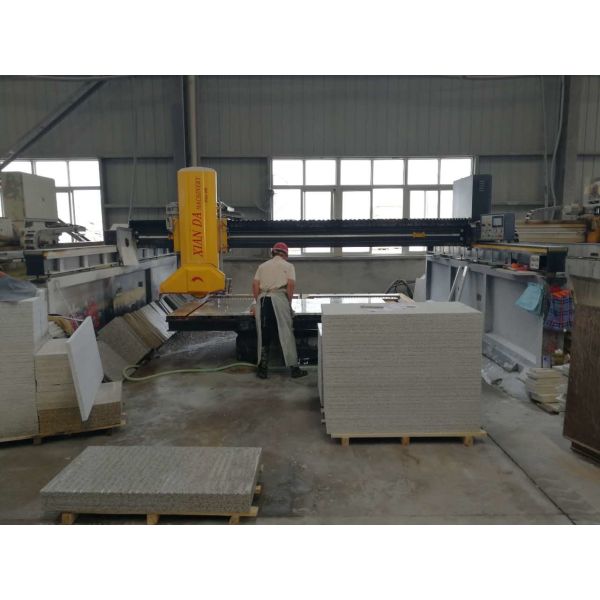

Infrared Bridge Saw Laser Stone PLC Cutting Machine
Suitable for large-scale marble and granite slab processing with advanced automation and precision cutting capabilities.
Infrared Bridge Saw Laser Stone PLC Cutting Machine, Suitable for Large-Scale Marble and Granite Slab Processing
Product Overview
The ZDQJ-450 infrared automatic stone bridge cutting machine features three models with PLC system and human-machine interface. Equipped with ultra-high precision rotary encoder positioning and infrared devices, it supports Chinese & English dual operation languages. The machine utilizes inverter control for left-right feeding with adjustable speed based on stone material, hydraulic lifting system through 4 guide posts, and unique side beam protection. Main spare parts incorporate imported high-quality materials for exceptional performance.
Key Features
  • High cutting efficiency and precision
  • Excellent stability and easy operation
  • Ideal for high-value granite and large-size marble processing
  • PLC system with human-machine interface
  • Infrared and rotary encoder positioning
  • Hydraulic lifting system with 4 guide posts
  • Side beam protection device
  • Imported high-quality components
Technical Specifications
Parameter Unit ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter mm 300-450 350-600 350-700
Max processing size mm 3200×2000×120 3200×2000×180 3200×2000×230
Dimension of worktable mm 3200×2000 3200×2000 3200×2000
Worktable tilting degree ° 0-85° 0-85° 0-85°
Worktable rotation degree ° 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main motor kw 15 18.5 18.5
Gross motor kw 21 24 24
Water consumption m³/h 4 4 4
Outline dimension mm 6000×4800×2900 6000×4800×3100 6000×4800×3200
Gross weight kg 5250 5500 5750
Infrared Bridge Saw Laser Stone PLC Cutting Machine, Suitable for Large-Scale Marble and Granite Slab Processing Infrared Bridge Saw Laser Stone PLC Cutting Machine, Suitable for Large-Scale Marble and Granite Slab Processing
About Xianda Machinery
Fujian Jinjiang Xianda Machinery Co., Ltd. was established in 1985 and has been dedicated to the development and production of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines. With rapid company development, we have passed ISO9001 verification, CE certification, and won many honorary titles including the International Gold Plant Quality Award. We maintain "Advanced Technology and High Quality" as our aim and have developed a comprehensive range of 'Xianda' brand special stone shape processing machines.
Global Exhibitions
Infrared Bridge Saw Laser Stone PLC Cutting Machine, Suitable for Large-Scale Marble and Granite Slab Processing
Our Service Commitment
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service
If you have any problems, contact our sales department, customer service department, etc. at any time for immediate assistance.
