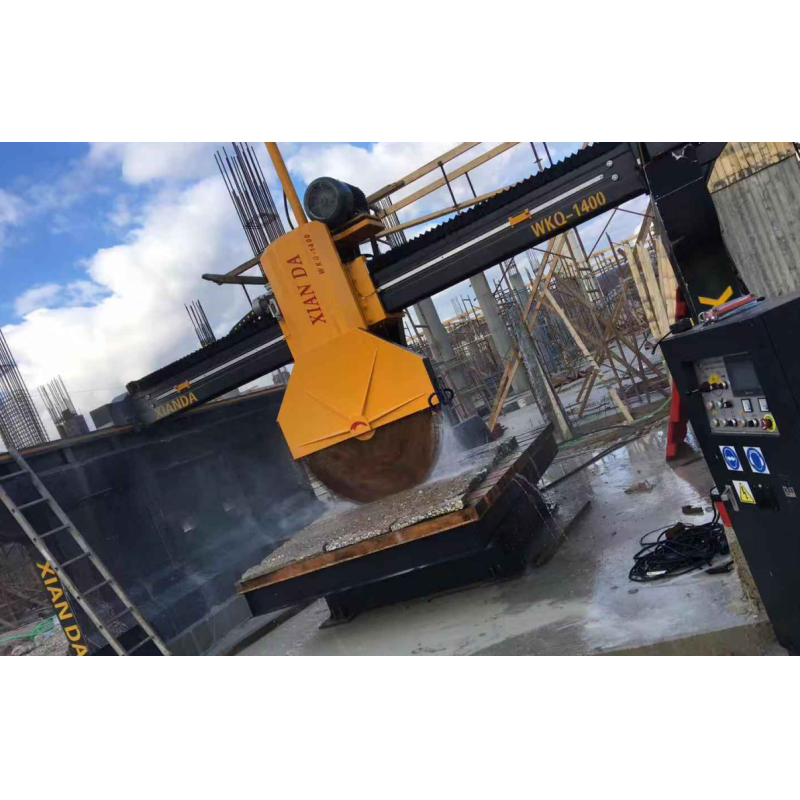

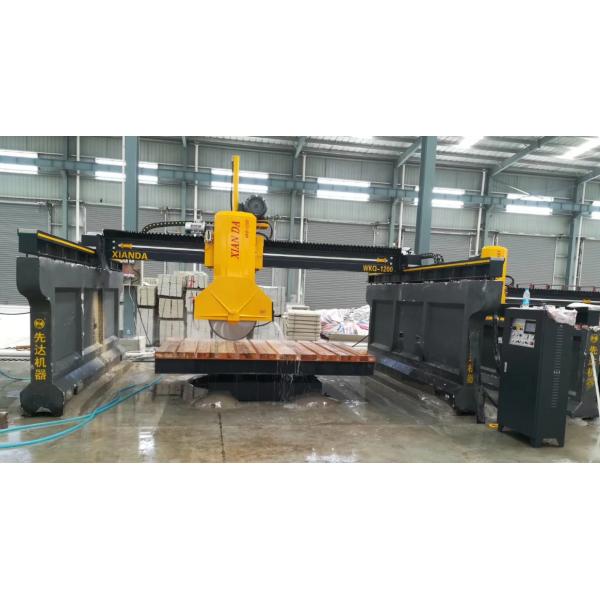

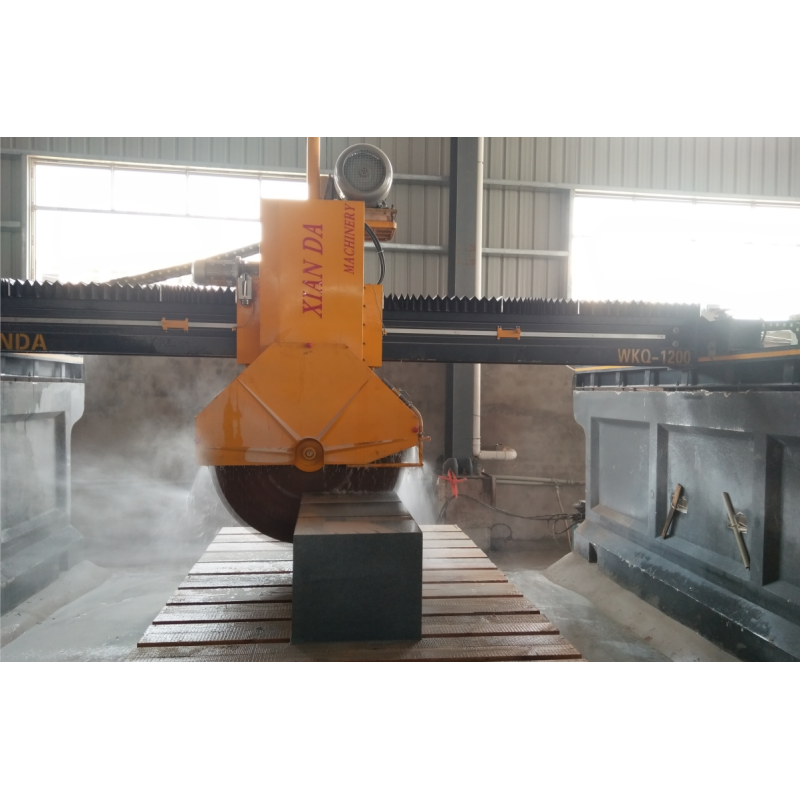

Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Multi Blade Granite / Marble Block Cutting Machine
Specifications
Brand Name :
Xianda Machinery
Model Number :
BTC-2200/2500/2800
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Delivery Time :
1 month
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Supply Ability :
1000 Sets/Year
Gross power :
57/67kw
Gross Weight :
1500kg
Product Name :
Bridge Cutting Machine
Water Consumption :
15m3/H
Power Supply :
AC
Outline Dimension :
8000*4800*3700mm
Warranty :
1 Year
Table Movement :
Automatic
Description
Multi Blade Granite / Marble Block Cutting Machine
Product Specifications
Attribute Value
Gross power 57/67kw
Gross Weight 1500kg
Product Name Bridge Cutting Machine
Water Consumption 15m3/H
Power Supply AC
Outline Dimension 8000*4800*3700mm
Warranty 1 Year
Table Movement Automatic
Technical Parameters
Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm 2200 2500 2800
Left and right travel mm 3800 3500 3200
Moving front&back travel mm 2200 2200 2200
Lifting stroke mm 1320 1320 1320
Main motor kw 45/55 45/55 55/65
Gross power min/㎡ 57/67 57/67 67/77
Outline dimension mm 8000*4800*3700 8000*4800*3700 8000*4800*3700
Water consumption m³/h 15 15 15
Gross power kg 14000 14500 15000
Multi Blade Granite / Marble Block Cutting Machine Multi Blade Granite / Marble Block Cutting Machine Multi Blade Granite / Marble Block Cutting Machine
Product Features
  • Inverter-controlled left-right feeding with adjustable speed for different stone types
  • Hydraulic lifting system for precise operation
  • High-precision screw nut driving for forward-backward slicing
  • Main components made from imported materials for durability
  • Ground placement design reduces workspace requirements and maintenance costs
  • High cutting efficiency with excellent slicing precision
  • Produces plates with superior flatness after cutting
  • User-friendly operation optimized for high-value granite and marble blocks
Applications

Our AC-powered Bridge Saw Cutting Machine delivers energy-efficient performance, reducing long-term operational costs. This versatile machine is ideal for stone processing businesses and construction companies requiring reliable, high-performance cutting solutions for granite and marble blocks.

Customization Options

XIANDA MACHINERY offers comprehensive customization services for our Bridge Cutting Machines to meet specific client requirements. Our machines are certified with API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF quality standards.

Minimum order quantity starts at 1 set with negotiable pricing. We provide multiple payment options including L/C, T/T, D/P, , Paypal, and . Annual production capacity exceeds 1000 sets with a standard delivery time of approximately 1 month.

Packaging & Shipping

Each machine is securely packaged in sturdy wooden crates reinforced with metal straps. Internal protection includes foam and bubble wrap to prevent movement during transit. We offer both sea and air freight options, with comprehensive pre-shipment quality inspections and real-time tracking provided.

Frequently Asked Questions
What is the brand name of this product?

XIANDA MACHINERY

Where is this product manufactured?

Jinjiang, Fujian, China

What certifications does this product have?

API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF

What is the minimum order quantity?

1 SET

Is the price negotiable?

Yes, prices are negotiable based on order specifications

How is the product packaged?

Sea-worthy plastic packaging with wooden crate reinforcement

What is the delivery time?

Approximately 1 month

What payment methods are available?

L/C, T/T, D/P, , Paypal,

What is the annual production capacity?

1000 sets per year
