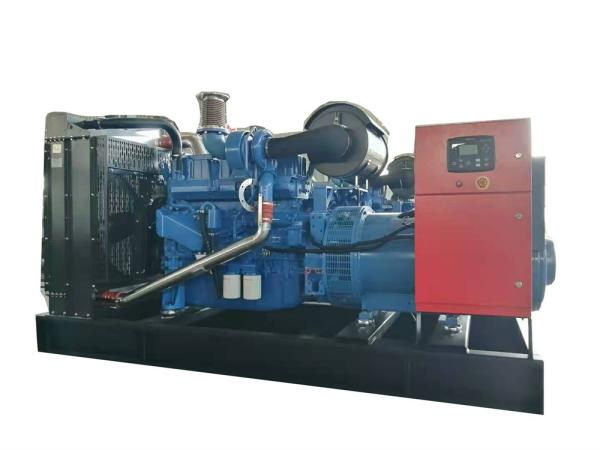

Continuously 350kW / 400kW Diesel Generator Set Open Frame with 8 Running Hours Fuel Tank

Yuchai Series Diesel Engine Generating Set:

- Versatile genset Output Range: Choose from a wide range of 18kW to 2200kW for your power needs.

- Engine Variety: We offer multiple engine types from the 4 cylinder, 6 cylinder, 12 cylinder, 16 cylinder Yuchai diesel engine Yuchai MTU series engine to match your specific requirements.

- Trusted Manufacturer: These engine are produced by Guangxi Yuchai Machinery Co., Ltd.., known for their quality and reliability.

Prime 438kVA & 500kVA Yuchai Generator Set TECHNICAL DATA:

Yuhcai Diesel Generator Standard Features

1. Rated Power: 38 kVA – 2750 kVA (30kW – 2200kW)
2. Frequency: 50/60 Hz
3. Speed: 1500/1800 RPM
4. Phase: 3-phase or single-phase
5. Voltage: 110 V – 460 V
6. Fuel tank: 8 hours operation or more
7. Noise level: Below 68 dB at 7 meters
8. Environmental temperature: -5ºC ~ +50ºC
9. Water tank:50ºC environmental protection water tank
10. Diesel engine: diesel, four-stroke, water-cooling
11. Alternator: brushless alternator, Stamford, Leroy Somer, Mecc Alte or equivalent
12. Controller: Deepsea / ComAp / Smartgen / DATAKOM
13. Delivery time: Normal 15 days
14. Starting method: Manual or electric start, adjustable
15. Packing: Plastic shrink wrap film for FCL Loading
16. Export port: Fuzhou Port or according to customer request
    Optional accessories include: ATS, water heater, fuel heater, Alternator heater, fuel – water separator
17. Electrical start system with maintain free battery & engine driven battery charger;
18. Residence silencer with flexible connections & elbow;
19. Full sets of Test report, drawings & manuals included

FAQ?

Q: Which port do you often use?

A: We often use Fuzhou Port, but we can also consider other ports as per customer's request.

Q. How do I choose the power for the genset?

A.: Please collect information on the total power consumption of your equipment and take the current into consideration when choosing the power of industrial diesel generator.

Q. What is the difference between Prime power and Standby power?

A.: Prime power refers to the continuous power supply for 12 hours, allowing one hour of 10% overload every 12 hours of operation. Standby power is the maximum output limit value for emergency use, and overloading is not allowed.

Q. What about the warranty?

The warranty period is one and a half years or 1500 hours (whichever comes first) from the date of ex-factory for our Tecgen Generator Set. During the warranty period, our company will provide free replacement parts for problems caused by our quality of diesel generator or raw materials, except for the damaged spare parts of the diesel engine caused by customer's incorrect artificial operation. After the expiration of the warranty period, our company provides cost parts maintenance for the generator set.
