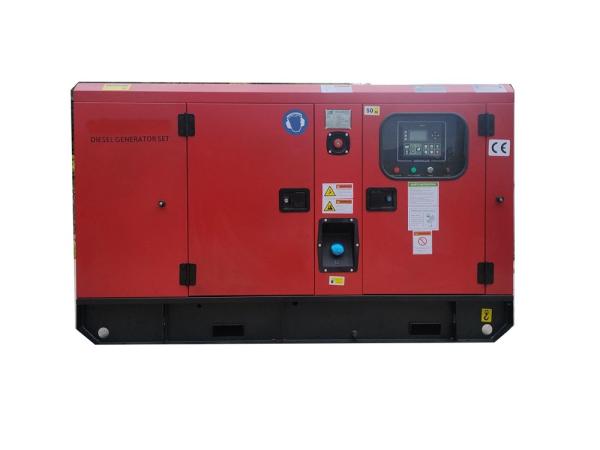

28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup
28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup
28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup
28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup
Specifications
Brand Name :
TECGEN SDEC Genset
Model Number :
TG28SDS
Place of Origin :
Fuzhou, China
Certification :
ISO / CE / SASO / CIQ
MOQ :
1 Unit
Price :
Negotiation
Packaging Details :
Plastic film package in container
Delivery Time :
15 Working Days
Payment Terms :
T/T / L/C
Supply Ability :
400 Units Per Month
Genset Model :
TG28SDS
Genset Type :
Soundproof
Frequency :
50Hz
Usage :
Backup Power
Prime Output Genset :
20kW / 25kVA
Alternator Brand :
Stamford / Leroy Somer / Tecgen
Starting System :
Electric Start
Type Option :
Open Type / Super Silent / Container Silent
Description

28kVA Industrial Diesel Engine generator for 50Hz Power and Reliability Backup

Product Description:

SDEC Generators offer reliable and powerful diesel generator sets that are perfect for backup power. Our TG28SDS generator sets feature electric start, soundproof, and come with optional equipments, such as ATS, PMG Alternator, Water Heater, and Engine Heater. Our diesel generators sets are equipped with a high quality generator control panel that can help you monitor and control the generator from any location. With SDEC Generators, you can rest assured that you'll get reliable and powerful backup power.

Features:

  • Product Name: SDEC Generators
  • Prime Output Genset: 20kW / 25kVA
  • Genset Type: Industrial Generator Set, Silent Generator Set, Soundproof Generator Set
  • Option Equipments: ATS / PMG Alternator / Water Heater / Engine Heater
  • Usage: Backup Power
  • Genset Model: TG28SDS
28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup

Technical Parameters:

Technical Specification:
50Hz 20kW SDEC Generator Set Specification
Genset Model TG28SD TG28SDS
Open Silent
Frequency 50Hz
Voltage 415/240V
Phase 3
Rate Current 34.8A
Prime Power 20kW / 25kVA
Standby Power 22kW / 28kVA
Engine Model SDEC 4Z3.0-G11
Alternator Model TGI184S20
Controller Mebay DC52D
Weight & Dimensions
Length (mm) 1650 2150
width (mm) 800 950
Height (mm) 950 1100
Weight (kgs) 770 1000
Engine Specification
Brand SDEC
Engine Model 4Z3.0-G11
Prime power (kw) 27
Injection Indirect
Aspiration Naturally Aspirated
No. of cylinders 4
Bore of Stroke (mm) 100 x 115
Displacement (L) 3.61
Cooling water
Compression Ratio 18:1
Engine Oil capacity (L) 5.75
Coolant Capacity ( In radiator) 5.75
Governor Mech
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 5.3
75% Load (L/h) 3.9
50% Load (L/h) 2.6
25% Load (L/h) 1.3
Alternator Specification
Brand Tecgen
Model TGI184S20
Rate Output (kVA) 25
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup

Applications:

TECGEN SDEC Genset is the perfect choice for reliable and efficient energy solutions. The TG28SDS model is designed for industrial and commercial use, and is certified to meet ISO / CE / SASO / CIQ standards. It is produced in Fuzhou, China, and is available for purchase with a minimum order quantity of 1 unit. The price is negotiable, with each unit being packaged in a plastic film container for secure delivery. The TECGEN SDEC Genset is typically delivered within 15 working days, with payment terms of T/T / L/C. With a supply capacity of 400 units per month, this genset is perfect for large-scale energy needs. The alternator brand provided is Stamford / Leroy Somer / Tecgen, with a frequency of 50Hz. The TG30SDS model is soundproof and has a prime output rating of 20kW / 25kVA.

Customization:

TECGEN SDEC Genset is an industrial diesel engine from Fuzhou, China certified by ISO / CE / SASO / CIQ. The model number is TGSD. It is available in a minimum order quantity of 1 unit and is priced for negotiation. The packaging details are plastic film package in container and the delivery time is 15 working days. Payment terms are T/T / L/C and 400 units are supplied per month. Alternator brands include Stamford / Leroy Somer / Tecgen and the usage is for backup power. It is available in three types - open type, super silent and container silent - and the engine brand is SDEC. Buyers can rely on the SDEC Diesel Generator for superior quality and reliability.

Packing and Shipping:

Packaging and Shipping

SDEC Generators come in packages that are designed to protect the contents from damage during transit. The packaging is designed for easy transportation and storage.

SDEC Generators are shipped by ground, air, or sea, depending on the customer’s needs. Orders are shipped within 3-5 business days of receipt and typically arrive within 3-7 business days of shipment. Packages are tracked and insured for their full value.

28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup28kVA Industrial Diesel Engine Generator For 50Hz Power And Reliability Backup

FAQ:

Q: What is the brand of TECGEN SDEC Genset?
A: The brand of TECGEN SDEC Genset is TECGEN SDEC Genset.
Q: What is the model number of TECGEN SDEC Genset?
A: The model number of TECGEN SDEC Genset is TG28SDS.
Q: Where is TECGEN SDEC Genset made?
A: TECGEN SDEC Genset is made in Fuzhou, China.
Q: What certifications does TECGEN SDEC Genset have?
A: TECGEN SDEC Genset has ISO / CE / SASO / CIQ certifications.
Q: How many units of TECGEN SDEC Genset can be ordered in minimum?
A: The minimum order quantity for TECGEN SDEC Genset is 1 unit.
