Soundproof Generator 250kW / 275kW Weichai Diesel Engine Industrial Power Generator Open / Silent Option

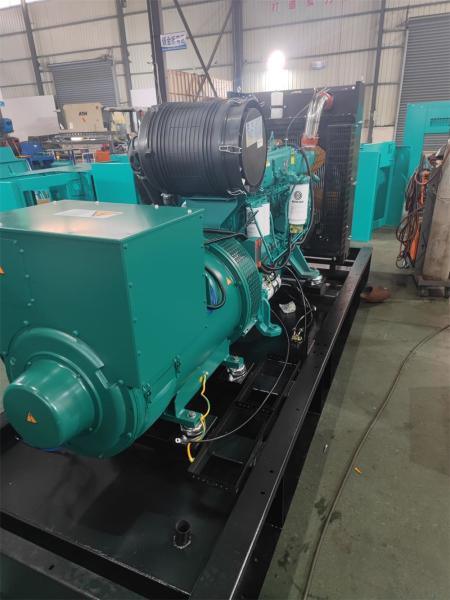

WEICHAI Engine System

• Heavy-duty Famous Weichai diesel engine
• Four-stroke and water-cooled
• 12V and 24V starters and charging alternators
• Cooling radiator and fan
• Maintenance-free battery with rectifier and cable
• Flexible fuel connection hoses and manual oil sump drain valve
• Exhaust silencer
• Mechanical or electronic governors
• Fuel injection pump
• Electric motor starting system
• Forged steel crankshaft, cast iron cylinder and replaceable wet cylinder liner
• Low exhaust emissions and low fuel consumption
• Easy to install and maintain

Alternator system

• Brushless design and single bearing structure
• Flexible disc for easy installation
• Insulation class: H
• Protection class: IP23
• Self-excitation and self-regulation capabilities

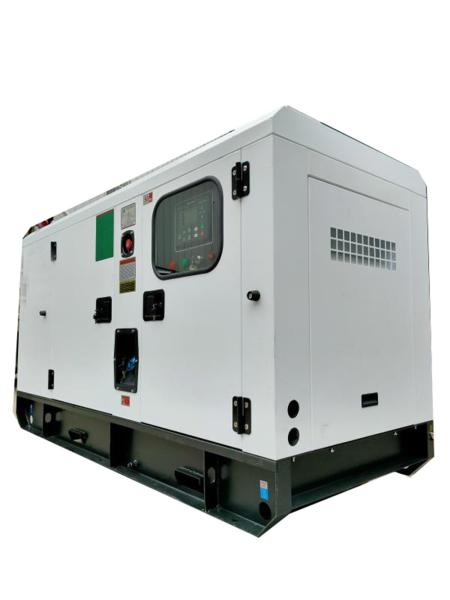

Canopy

• All canopies are designed based on modular principles
• All metal canopy parts are painted with electrostatic polyester paint
• Soundproof design ensures noise levels are kept to a minimum
• Easy to lift and move
• Convenient to maintain and operate
• Base Frame
• Base frame includes fork lift and crane positions
• Integral fuel tank included
• Daily fuel tank able to provide continuous operation for 8-24 hours
• Fuel tank easy to maintain and clean
• Anti-vibration pads are used between the engine and alternator

Control system

• Controller brand: Deepsea, ComAp, Smartgen, DATAKOM, MEBAY
• Control panel with English interface, LED screen and touch buttons for easy operation and monitoring.
• Control, monitor, and protect the generator set including:
• High water temperature alarm
• Low oil pressure alarm
• Over-speed and under-speed alarm
• Over current alarm
• Under/over generator voltage alarm
• Start and stop failure alarm
• Low and high battery voltage alarm
• Charge failure alarm
• Emergency stop function

TECHNICAL DATA:

Standard Configuration of Weichai diesel engine genset:

1. Powered by Weichai Diesel Engine

• The genset is designed to work with a Weichai engine, which ensures reliable performance and energy efficiency.
• The Weichai engine is renowned for its durability and longevity, delivering consistent power output and dependable operation.

2. Leroy Somer Alternator (Stamford, Meccalte for option)

• The Leroy Somer alternator, renowned worldwide for its performance and quality, is factory-fitted as standard.
• For additional options, Stamford, Mecc Alte or Copy Stamford alternators are also available.

3. Samrtgen HGM 6120N Control Panel as Standard, AMF Control Panel Deepsea DSE7320 & ComAp AMF20 for Option, ATS for Option

• The Smartgen HGM 6110N control panel is factory-fitted as standard equipment, providing user-friendly controls and easy operation.
• AMF control panel options include the Deepsea DSE7320 and Smartgen HGM6120N models, providing additional features and functions for enhanced genset performance and monitoring.
• Optional ATS (Automatic Transfer Switch) is available for seamless switching between different power sources, ensuring uninterrupted power supply operation.

4. CHNT Breaker as Standard, ABB, Schneider Breaker for Option

• The CHINT breaker is factory-fitted as standard equipment, providing reliable and safe power distribution and circuit protection.
• For additional options, ABB and Schneider breakers are also available for added circuit protection and enhanced safety features.

5. 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, output above 650kVA generator set without based Fuel Tank)

• The diesel generator is equipped with 8 working hours base fuel tank as standard equipment, suitable for prime power generation of gensets up to 650kVA capacity.
• Additional options include a base frame for other models, ensuring a stable foundation for the genset and enhancing its performance and durability.

6. Anti-Vibration Mounted System

• The genset is equipped with an anti-vibration mounted system to reduce mechanical stress and ensure smooth operation under various conditions.
• This system buffers the genset from external vibrations, ensuring stable power output and longevity of the equipment.

7. Battery and Battery Switch

• The genset is equipped with a battery to provide standby power supply in case of main power failure.
• The battery switch allows easy access to the battery for replacement or maintenance purposes.

8. Industrial Silencer and Flexible Exhaust Hose

• The genset is equipped with an industrial silencer to reduce noise emissions to an acceptable level, ensuring compliance with environmental regulations and providing a comfortable working environment.
• The flexible exhaust hose allows for easy installation and maintenance of the genset exhaust system, while also reducing noise emissions.

In conclusion, our diesel power genset configuration described above provides ease of maintenance and repair, enhanced performance and durability, resulting in a higher cost-performance ratio.
