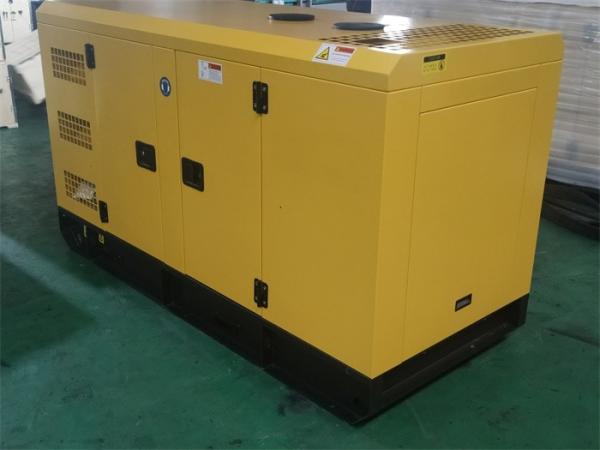

72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source
72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source
72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source
72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source
Specifications
Brand Name :
Tecgen Weichai Diesel Generator
Model Number :
TG89WCS
Place of Origin :
Fuzhou, China
Certification :
ISO / CE / SASO / CIQ
MOQ :
1 Unit
Price :
Negotiation
Packaging Details :
Plastic film package or Polywooden Package
Delivery Time :
15 Working Days
Payment Terms :
T/T / L/C
Supply Ability :
300 Units Per Month
Type :
Diesel Generator
Brand :
Weichai Engine
Rated Power :
65KW / 81kVA
Rated Frequency :
50Hz
Rated Speed :
1500rpm/min
Rated Voltage :
220, 230, 240, 380, 400, 415V
Fuel Consumption :
230g/kw.h
Noise Level :
68dB(A)
Description

380V 72kW Diesel electric generator set 89kVA 3 Phase diesel generator for Power Source

Product Description:

Weichai Diesel Generator is a perfect solution for emergency power supply. It is a type of diesel power generator set with a rated power of 65KW and low noise level of 68dB(A). This baudouin diesel generator is designed and manufactured by Weichai, a well-known brand in power generation industry. It is available in rated voltage of 220, 230, 240, 380, 400, 415V, making it suitable for various applications.

Weichai diesel generator is equipped with high-quality components and configured with advanced technologies, making it reliable, efficient and durable. It is also easy to operate and maintain.

Weichai diesel generator is an ideal emergency power solution for commercial, industrial and residential applications. It is a great choice for reliable and efficient power supply.

Features:

  • Product Name: Weichai Diesel Generator
  • Fuel Consumption: 230g/kw.h
  • Rated Power: 65KW / 81kVA
  • Standby Power: 72kW / 89kVA
  • Rated Frequency: 50Hz
  • Noise Level: 68dB(A)
  • Rated Speed: 1500rpm/min
  • China Diesel Engine Generator
  • Baudouin Diesel Generator
  • China Diesel Engine Generator
72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source

Technical Parameters:

Technical Specification:
72kW Silent DG Power Genset Specification
Genset Model TG89WC TG89WCS
Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3
Rate Current 116.9A
Prime Power 65kW / 81kVA
Standby Power 72kW / 89kVA
Engine Model WP4.1D80E200
Alternator Model TGI224S65
Controller HGM6120N
Weight & Dimensions
Length (mm) 2240 2700
Width (mm) 900 1020
Height (mm) 1400 1550
Weight (kgs) 1125 1790
Engine Specification
Brand Weichai
Engine Model WP4.1D80E200
Prime/Standby power 72kW / 80kW
Injection Indirect
Aspiration Turbocharged
No. of cylinders 4
Bore of Stroke (mm) 105 x 118
Displacement (L) 4.087
Cooling water
Compression Ratio 17.3:1
Engine Oil capacity (L) 6.7
Coolant Capacity ( In radiator) 6.7
Governor Electric
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 17.8
75% Load (L/h) 13.3
50% Load (L/h) 8.9
25% Load (L/h) 4.4
Alternator Specification
Brand Tecgen Power
Model TGI224S65
Rate Output 81kVA
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Smartgen
Model HGM6120N
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source

Applications:

We cooperate with top diesel engine manufacturers, such as Cummins, Perkins, Deutz, LovoL, Doosan, SDEC, Ricardo, Isuzu, FAW, Yangdong, Weichai, MTU, etc.
Equipped with brushless alternator from prominent brands, such as Stamford, Leroy Somer, Marathon, Tecgen, Mecc alte.
Preserving engine durability through a 50°C radiator with fan that supports a sufficient cooling system.
Advanced control panel for generator set, featuring an ATS system, remote control system, and a parallel operation system with optional control model, Deep sea, Smartgen, ComAp and MEBAY.
The generator set has a High-quality steel thickness canopy ranging from 2MM to 6MM.
Including a high density sound-absorbing material which provides sound insulation and fireproof.
Equipped with a 12V/ 24V DC battery with a charger and connecting wire.
Generator having a 10-12 hours fuel tank with a fuel indicator for longer working periods.
Maintaining a high secure control box and power output box, with IP55 Waterproof quality and a circuit breaker for electric leakage.
Exquisite turn-back type for air inflow & air outlet with a selfreducing noise and improving engine efficiency.
Utilizing a bottom hole for forklift, water outlet & oil outlet for easy maintenance.
Including double open doors on both sides of the Gensets for a comprehensive inspection of every part of the engine and alternator.
Creating generators of various shapes, such as Silent, Supper Silent, Soundproof, Trailer type, Container type.
Our generator set compliance with all main standards and regulations, such as GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standard.

Customization:

Weichai Diesel Generator
  • Brand Name: Tecgen Weichai Diesel Generator
  • Model Number: TG89WCS
  • Place of Origin: Fuzhou, China
  • Certification: ISO / CE / SASO / CIQ
  • Minimum Order Quantity: 1 Unit
  • Price: Negotiation
  • Packaging Details: Plastic film package or Polywooden Package
  • Delivery Time: 15 Working Days
  • Payment Terms: T/T / L/C
  • Supply Ability: 300 Units Per Month
  • Fuel Consumption: 230g/kw.h
  • Rated Frequency: 50Hz
  • Rated Speed: 1500rpm/min
  • Noise Level: 68dB(A)
  • Rated Power: 65KW /81kW
  • Standby Power: 72kW / 89kVA
  • Generator Set Diesel Engine, Diesel Power Generator Set, Emergency Diesel Generator Set

Packing and Shipping:

Weichai Diesel Generator Packaging and Shipping

Weichai diesel generator is packed in robust wooden crates and boxes, with foam-filled corners for extra protection during shipment. Every generator is wrapped in a waterproof plastic sheet to protect from weather and dust. All packages are sealed and secured before shipment to ensure the products arrive safe and intact.

72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source72kW 89kVA 3 Phase Weichai Diesel Generator 380V For Power Source

FAQ:

Q1: What is the brand name of the Weichai Diesel Generator?

A1: The brand name of the Weichai Diesel Generator is Tecgen Weichai.

Q2: What is the Model Number of the Weichai Diesel Generator?

A2: The Model Number of the Weichai Diesel Generator is TG89WCS.

Q3: Where is the Weichai Diesel Generator made?

A3: The Weichai Diesel Generator is made in Fuzhou, China.

Q4: What are the certifications of the Weichai Diesel Generator?

A4: The certifications of the Weichai Diesel Generator are ISO / CE / SASO / CIQ.

Q5: What is the minimum order quantity for the Weichai Diesel Generator?

A5: The minimum order quantity for the Weichai Diesel Generator is 1 Unit.
