Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Specifications
Brand Name :
DGAX
Model Number :
AX-MFQ35
Certification :
CE
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
30-45days
Packaging Details :
Foam inner+ outside wooden case
Function :
Counting,feeding,packing,sealing,labeling
Application :
Hardware,plastic parts,bottle cap
Packaging Type :
PE material bag
Warranty :
1 Year
Efficiency :
3-5bag/min(depends on products)
Detectabie size :
5-50mm
Accuracy :
0.03%,no negative error
Free Parts :
1 Year
Description
Features Overview of Strong Versatility High Speed Accuracy Plastic Caps Package Visual Counting Packing Machine
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Specification Parameter
Model
AX-MFQ35
Detection Size
8-50mm
Bag size
150-450mm
Efficiency
8000-10000pcs/min
Counting accuracy
0.03%,only positive error
Packaging Material
PE Film material
Power requirements
AC220V±10% 50HZ/60HZ

  • User - Friendly Interface: The human - machine interface (HMI) of visual counting packaging machines is designed to be intuitive and easy to use. It typically features a touch - screen display with clear menus and icons, allowing operators to quickly access and adjust machine settings, start or stop the production process, and view real - time production data. Even operators with minimal technical training can quickly learn to operate the machine effectively, reducing the time and cost associated with extensive training programs.​

  • Diagnostic and Maintenance Features: The machine is equipped with built - in diagnostic tools that can automatically detect and report any potential issues or malfunctions. These tools can identify problems such as sensor failures, conveyor belt jams, or software glitches. The modular design of the machine also makes it easier to access and replace individual components during maintenance. This simplifies the repair process, reduces downtime, and ensures that the machine can be quickly restored to optimal operating condition.

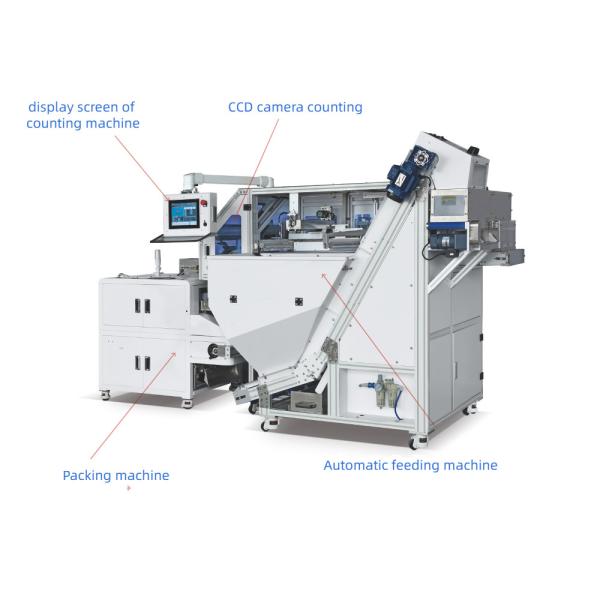

Machine Detail
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
CCD camera counting
We use CCD camera to check quantity of the products to avoid errors which by weighing machine.
Japanese brand "TOSHIBA" camera.
Counting in real time.
High accuracy! Hign speed!
CCD camera counting

Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Touch control screen
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
Multiple channel for accurate counting

Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
PE film economic packing material
Adavantages
Visual counting packaging machine adavantages
The visual technology packaging machine is designed to meet modern production needs. Equipped with state - of - the - art visual inspection systems, it can precisely position products during packaging. This not only improves the aesthetics of the packages but also ensures product integrity. Moreover, its high - speed operation and adaptability to various product shapes and packaging materials make it an ideal choice for high - volume production lines.
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environmen

Optional Series
Plastic Caps Package Visual Counting And Packing Machine Strong Versatility High Speed Accuracy
