Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Specifications
Brand Name :
DGAX
Model Number :
AX-MFQ35
Certification :
CE
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
30-45days
Packaging Details :
Foam inner+ outside wooden case
Function :
Counting,filling,packing,sealing,labeling...
Application :
Hardware,plastic parts,bottle cap
Packaging Type :
PE material bag
Warranty :
1 Year
After-sales Service Provided :
Video technical support, commissioning and training, Online support, Field maintenance and repair service, Free spare parts, 1 Years
Efficiency :
3-5bag/min(depends on products)
Detectabie size :
5-50mm
Accuracy :
0.03%,no negative error
Description
Features Overview of Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine for Bottle Caps
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Specification Parameter
Model
AX-MFQ35
Detection Size
8-50mm
Bag size
150-450mm
Efficiency
8000-10000pcs/min
Counting accuracy
0.03%,only positive error
Packaging Material
PE Film material
Power requirements
AC220V±10% 50HZ/60HZ

  • Multi - Parameter Defect Detection: In addition to counting, visual counting packaging machines are capable of performing comprehensive quality inspections in real - time. They can detect a wide range of defects, including misshapen caps, surface scratches, cracks, color variations, and incorrect threading. By analyzing multiple visual parameters simultaneously, such as the cap's shape, texture, and color spectrum, the machine can identify even the most subtle defects that might go unnoticed by human inspectors.​

  • Immediate Rejection Mechanism: Once a defective cap is detected, the machine has an immediate rejection mechanism. It uses pneumatic or mechanical arms to quickly remove the faulty cap from the production line, preventing it from being included in the final package. This real - time rejection not only ensures the quality of the packaged products but also saves time and resources that would otherwise be wasted on processing and packaging defective items. As a result, it helps maintain a high brand reputation by consistently delivering products of the highest quality to customers.​

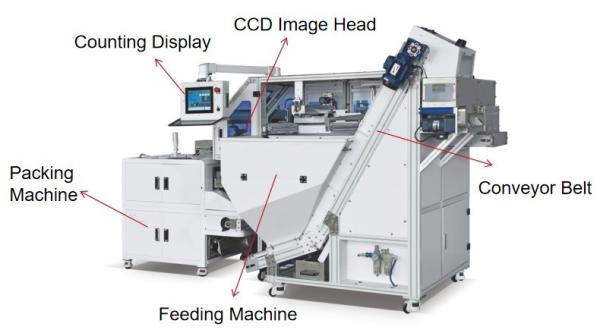

Machine Detail
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
CCD camera counting
We use CCD camera to check quantity of the products to avoid errors which by weighing machine.
Japanese brand "TOSHIBA" camera.
Counting in real time.
High accuracy! Hign speed!
CCD camera counting

Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Touch control screen
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
Multiple channel for accurate counting

Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps
PE film economic packing material
Adavantages
Visual counting packaging machine adavantages
The visual technology packaging machine is designed to meet modern production needs. Equipped with state - of - the - art visual inspection systems, it can precisely position products during packaging. This not only improves the aesthetics of the packages but also ensures product integrity. Moreover, its high - speed operation and adaptability to various product shapes and packaging materials make it an ideal choice for high - volume production lines.
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps

Intelligence:

With powerful learning functions,the machine can automatically recognize the particle object,and can be easily accessed and used after slight manual adjustments and save.
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps

Precision:

Precision:With leading high precision in the field of industrial product.The procision of silver contact products can even reach over 99.95%
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps

High-speed:

High speed for counting particles.The efficiency of counting small particles of materials(such as shirt buttons,silver
contacts,phone screws,ect.)can reach up to 30000pcs/min with accurate counting.
Strong Versatility PE Tubular Roll Package Machinery Vision Counting Packing Machine For Bottle Caps

Flexible:

With one click cleaning and quick swithching of product items,suitbale for multi variety and small batch production of granular packaging forms in today's industrial production environmen
