Comprehensive Technical Report: Schneider Electric Lexium 62 ILM Integrated Servo Motor (Model ILM0702P22F0000)

1. Product Overview

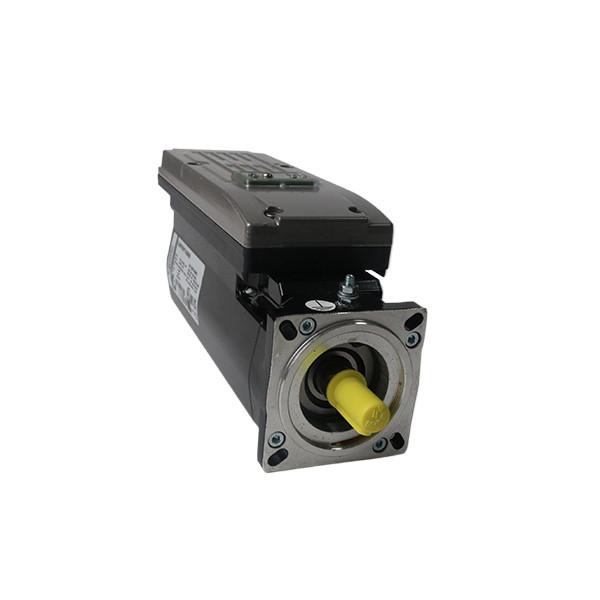

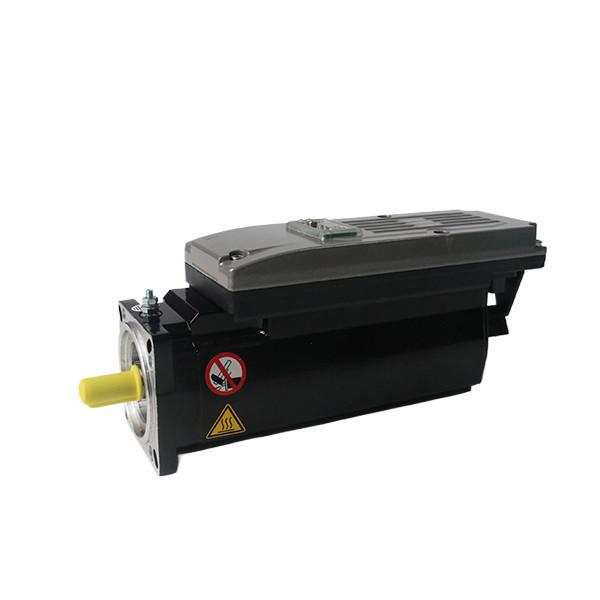

The Lexium 62 ILM0702P22F0000 represents Schneider Electric’s pinnacle of integrated motion control technology, combining a high-performance servo motor, drive, controller, multiturn absolute encoder, and electromechanical brake within a single IP65-rated unit. Engineered for safety-critical applications in harsh industrial environments, it delivers 1.7 Nm continuous torque at speeds up to 6,000 rpm. This model uniquely merges position retention capabilities with vertical-axis safety, making it ideal for medical devices, material handling, and high-precision automation. As part of Schneider’s MachineStruxure™ ecosystem, it reduces installation costs by >55% and energy consumption by 35% versus traditional servo systems.

2. Technical Specifications

Key parameters highlighting the brake-encoder synergy and environmental resilience:

3. Design Innovations and Key Features

• Dual Safety-Precision Architecture:
  The 24-bit multiturn encoder retains absolute position across 16,384 revolutions without batteries, while the spring-applied brake delivers 1.8 Nm holding torque within 50 ms of power loss. This dual capability prevents load drops in vertical axes and eliminates post-outage recalibration.

• Unified IP65-Protected Design:
  Encapsulated controller housing withstands high-pressure washdowns (e.g., pharmaceutical cleanrooms). Motor features FDA-compliant lubricant (Klübersynth UH1 64-62) and epoxy coating for chemical resistance.

• Energy-Optimized Topology:
  Natural convection cooling enables 35% energy savings versus fan-cooled systems. Hybrid cables integrate power/SERCOS III communication, reducing copper usage by 72%.

• Native Safety Integration:
  Embedded Safe Brake Control (SBC) works with STO/SS1 to achieve PLd/SIL3 compliance without external modules.

4. Application Scenarios

• Medical Vertical Lift Systems:
  Brake secures patient beds/imaging equipment during power failures, while multiturn feedback ensures positional accuracy after recovery (e.g., MRI table positioning).

• Automated Warehousing:
  Holds 50 kg pallets on vertical conveyors (1.8 Nm brake torque), with encoder tracking across multi-floor movements. IP65 rating withstands warehouse dust.

• Food Packaging with Clean-in-Place (CIP):
  Resists caustic cleaners during CIP cycles. 6,000 rpm speed enables rapid filling/sealing with ±0.005° positioning accuracy.

5. Installation and Safety Integration

• Electrical Requirements:

  • Brake Control: 20.5–30 Vdc (±10%) with 530 mA inrush current.

  • EMC: Built-in C3-class filtering (IEC/EN 61800-3) with Schneider hybrid cables.

• Mechanical Compliance:

  • ISO 9409-1-compliant 11 mm keyed shaft with anti-corrosion treatment.

  • Brake service life: 1,000,000 cycles (Schneider-certified maintenance only).

• Safety Validation:
  Requires SIL3-certified PLC (e.g., Modicon M580) for SBC/STO integration.

6. Performance and Reliability

• Thermal Management:
  Monitors winding temperature via PTC thermistors, triggering derating at 105°C (Alarm 8125) and shutdown at 130°C (Fault 8100).

• Dynamic Precision:
  24-bit encoder resolution enables 0.0002° positioning accuracy. 2 µs SERCOS III cycle time synchronizes multi-axis tasks.

• MTBF/Lifecycle:
  45,000 hours MTBF. Brake wear monitoring via Schneider’s EcoStruxure™ platform.

7. Market Differentiation

Comparative Table: ILM0702P22F0000 vs. Competing Safety Servos

Conclusion

The Lexium 62 ILM0702P22F0000 redefines safety-critical motion control by unifying emergency braking (1.8 Nm holding torque), positional intelligence (24-bit multiturn encoder), and environmental hardening (IP65) in one decentralized unit. Its dual safety-precision architecture eliminates homing procedures while securing vertical loads during power loss—critical for medical, logistics, and hygienic automation. With 35% energy savings, 55% lower installation costs, and native SIL3/PLd compliance, it delivers unparalleled value for Industry 4.0 applications where operational continuity and safety are non-negotiable. This motor sets a new benchmark for integrated servo technology in high-stakes industrial environments.
