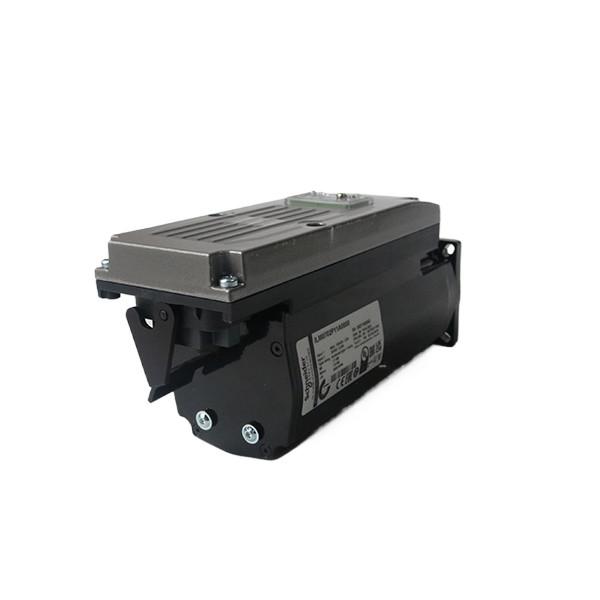

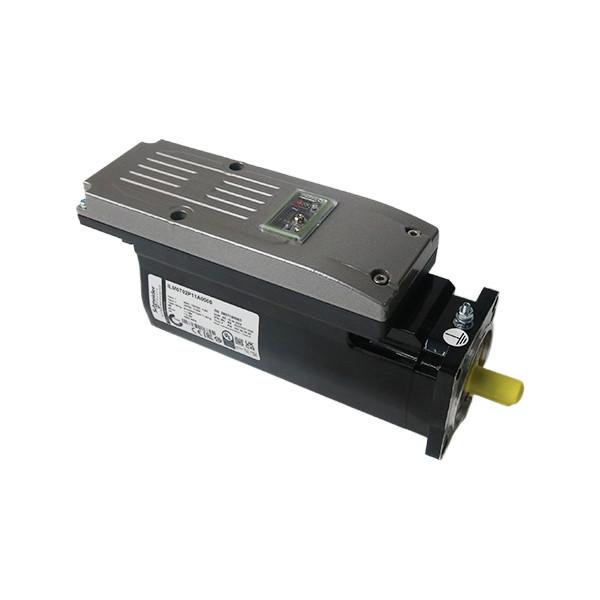

Schneider Electric Lexium 62 ILM Integrated Servo Motor ILM0702P01A0000: A Technical Deep Dive

The Schneider Electric Lexium 62 ILM series introduces the ILM0702P01A0000, a variant engineered for applications demanding higher torque output, high-speed precision, and compact integration—all without an integrated brake. This model integrates a 1.7 Nm brushless motor, a 6,000 rpm speed capability, and a 23-bit single-turn absolute encoder into a compact 1.3 kg unit. Its 14mm keyed shaft and advanced thermal management make it ideal for conveyor systems, robotic arms, and light machinery. Below is a detailed technical review, emphasizing its unique design, performance, and applications.

Technical Specifications Table

1. Design Innovation: Higher Torque and Advanced Thermal Management

The ILM0702P01A0000 stands out with its 1.7 Nm continuous torque and 5.1 Nm peak torque, making it suitable for applications requiring higher load capacity:

Enhanced Torque Density:

• 1.7 Nm Continuous Torque: 55% higher than the ILM0701 series, enabling operation of heavier loads.
• 5.1 Nm Peak Torque: Supports rapid acceleration in applications like robotic pick-and-place systems.

Thermal Optimization:

• Integrated Cooling Fins: Improve heat dissipation, allowing sustained operation at peak torque.
• Thermal Monitoring: Built-in sensors prevent overheating during prolonged high-load use.

2. Performance Benchmarks

Torque and Speed:

• The 1.7 Nm continuous torque suits steady-state operations, while the 5.1 Nm peak torque enables rapid acceleration in applications like packaging machinery.
• At 6,000 rpm, it excels in high-speed tasks such as spindle drives or centrifugal separators.

Encoder Accuracy:

• Single-Turn Resolution: Provides 8 million positions per revolution, eliminating the need for homing sequences.
• Latency: <1 μs feedback update rate ensures real-time control in synchronized motion systems.

3. Applications

The ILM0702P01A0000 is tailored for:

• Robotic Arms: Joint actuators requiring high torque and precision.
• Conveyor Systems: Heavy-duty material handling in automotive or logistics.
• CNC Machines: Spindle drives and tool changers needing high-speed responsiveness.
• Textile Machinery: Spinning frames and winding systems with frequent start/stop cycles.
• Printing Presses: Web tension control in high-speed industrial printers.

4. Technical Advantages

Energy Efficiency:

• Up to 94% efficiency reduces energy consumption, while regenerative braking function (when paired with an external brake) recovers kinetic energy.

Connectivity:

• EtherCAT FSoE: Enables safety communication over EtherCAT for integrated safety architectures.
• Dual-Port EtherCAT: Supports line topology for daisy-chained motion axes.

Precision and Safety:

• The 23-bit absolute encoder eliminates homing sequences, critical for CNC machining.
• Integrated Safe Torque Off (STO) and Safe Stop 1 (SS1) functions comply with ISO 13849-1.

5. Installation and Commissioning

Mounting:

• IEC B14 flange with a 14mm keyed shaft ensures secure coupling to mechanical loads.
• Adjustable mounting feet accommodate misalignment during installation.

Wiring:

• A single 48V DC supply powers the motor.
• Dedicated encoder feedback terminals (M12 connector) simplify integration with controllers.

Software Tools:

• Schneider Electric’s SoMove software streamlines parameter tuning, diagnostics, and firmware updates.
• Preloaded motion profiles (e.g., S-curve, trapezoidal) reduce programming effort.

6. Maintenance and Troubleshooting

Preventive Maintenance:

• The encoder’s self-diagnostics flag deviations in position accuracy.
• Regular inspection of cooling fins prevents thermal overload.

Error Handling:

• LED indicators on the motor housing provide real-time status feedback (e.g., overcurrent, overvoltage).
• Fault codes are logged internally for post-mortem analysis via SoMove.

7. Compatibility and Accessories

Optional Add-Ons:

• External Brake Kit: For applications requiring holding torque (e.g., vertical axes).
• Gearboxes: Planetary or helical options to increase torque density.
• Cables: Pre-terminated motor cables (1m, 2m, 5m lengths) with M12/M23 connectors.
• IP69K Connectors: For washdown environments in food processing.

Controller Compatibility:

• Works seamlessly with Schneider Electric’s PacDrive 3 and Modicon M580 PLCs.
• Third-party controller support via open-source EtherCAT stacks.

8. Environmental and Safety Compliance

• RoHS/REACH Compliance: Ensures absence of hazardous substances.
• Low Noise Emission: Operates at <72 dB(A), suitable for noise-sensitive environments.
• Safety Certifications: Meets ISO 13849-1 (PLd) and IEC 61800-5-2 for functional safety.

9. Ordering and Availability

As a Non-Stock item, the ILM0702P01A0000 requires a 4–6 week lead time from Schneider Electric’s manufacturing facilities. Customers are advised to:

• Confirm regional availability through Schneider Electric’s eCommerce portal or authorized distributors.
• Specify optional accessories (gearboxes, cables) during order placement to avoid delays.

10. Frequently Asked Questions (FAQs)

Q1: What is the difference between this model and the ILM0701 series?
A1: The ILM0702P01A0000 offers 55% higher continuous torque (1.7 Nm vs. 1.1 Nm) and improved thermal management for heavier loads.

Q2: Can this motor operate in a food-grade application?
A2: Yes, with an optional stainless steel shaft and IP69K-rated connectors for high-pressure washdown.

Q3: Is the encoder resolution upgradeable?
A3: No, the 23-bit resolution is fixed. For higher precision, consider the ILM1202 model (24-bit).

Q4: Can I use this motor for vertical applications without a brake?
A4: Yes, but an external brake is recommended to prevent backdriving in case of power failure.

Conclusion

The Schneider Electric Lexium 62 ILM0702P01A0000 integrated servo motor sets a new standard for torque density and precision in compact motion control. Its combination of a 1.7 Nm motor, advanced thermal management, and 23-bit encoder makes it indispensable for applications like robotic arms or heavy-duty conveyors. While its Non-Stock status reflects its specialized nature, the 4–6 week lead time is justified by the motor’s advanced capabilities and Schneider Electric’s rigorous quality control. For engineers seeking a high-performance servo solution with enhanced torque and thermal resilience, the ILM0702P01A0000 remains a benchmark in its class.
