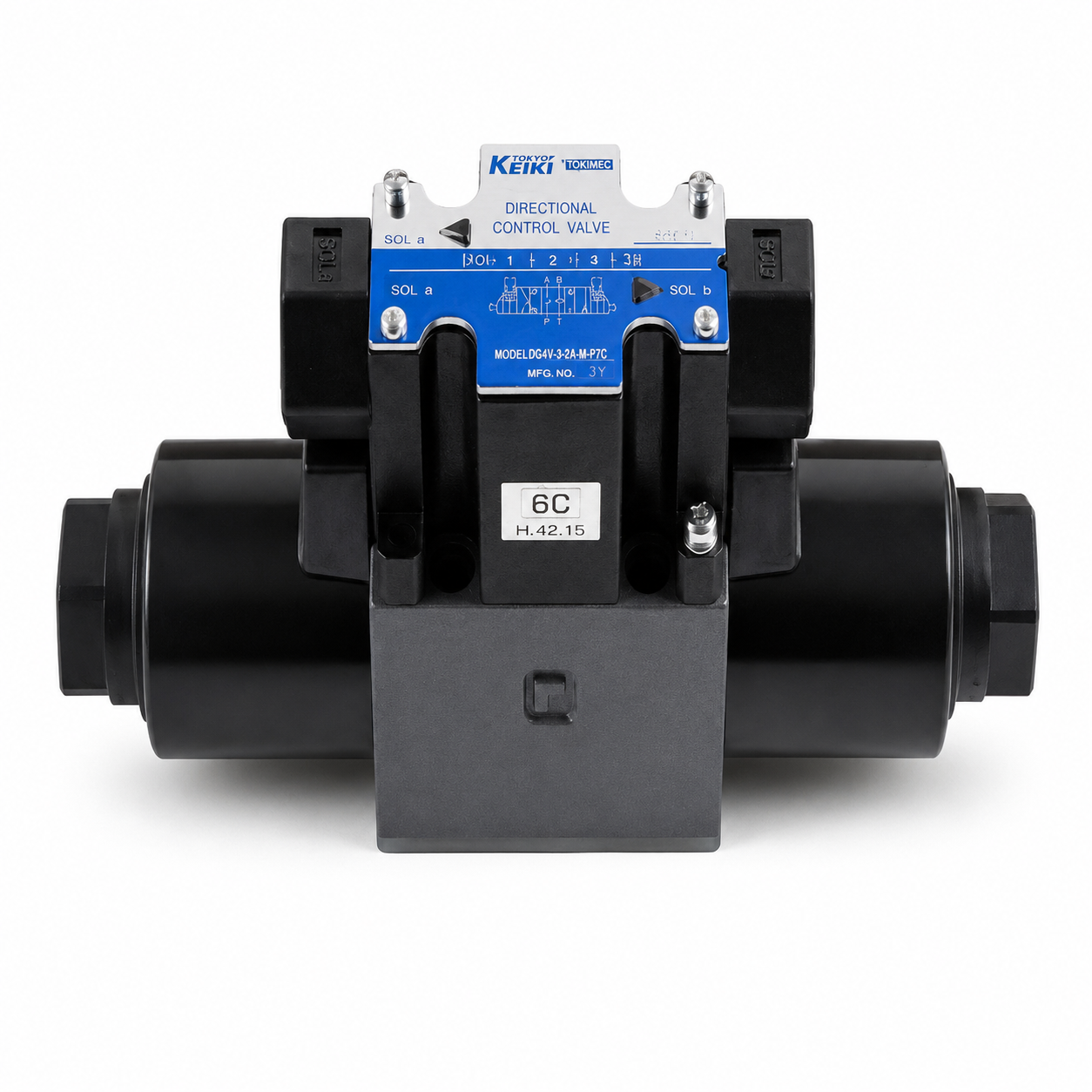

TOKYO KEIKI DG4V-5-7C-M-PL-T-6-40 Solenoid Directional Valve
TOKYO KEIKI DG4V-5-7C-M-PL-T-6-40 Solenoid Directional Valve
Specifications
Delivery Time :
7-14 Days
Spool Type :
No. 7 / P-A-B Connected, T Blocked Center
Model Number :
DG4V-5-7C-M-PL-T-6-40
Mounting / Design :
ISO 4401-AC-05-4-A Gasket Mounting / Design 40
Price :
USD 315.00 /Unit
Packaging Details :
Brand new original packaging
Maximum Flow :
Up to 160 L/min, Depending on Pressure and Flow Path
Supply Ability :
10Units per Month
Operating Arrangement :
3 Position, Spring Centered, Double Solenoid
Maximum Working Pressure :
31.5 MPa
Payment Terms :
T/T
Solenoid Voltage :
100 VAC 50/60 Hz / 110 VAC 60 Hz
Electrical Connection :
PL Plug-In Conduit Box with Indicator Lamps
Brand Name :
TOKYO KEIKI
Place of Origin :
Japan
MOQ :
1 unit
Valve Type :
Wet-Armature Solenoid Operated Directional Control Valve
Description

TOKYO KEIKI TOKIMEC DG4V-5-7C-M-PL-T-6-40 Solenoid Directional Valve

The TOKYO KEIKI TOKIMEC DG4V-5-7C-M-PL-T-6-40 is a legacy three-position hydraulic directional valve featuring a spring-centered No. 7 spool, two AC solenoids and an ISO 4401-AC-05-4-A mounting interface.

Center and Switching Functions

In the spring-centered neutral position, the P, A and B ports are connected while the T port is blocked. This center function is different from closed-center, open-center, 6C and tandem-center configurations.

Energizing either solenoid shifts the spool to its corresponding working position. Removing both electrical commands allows the centering springs to return the spool to neutral.

Technical Specifications

BrandTOKYO KEIKI / TOKIMEC
ModelDG4V-5-7C-M-PL-T-6-40
Valve TypeWet-armature solenoid directional control valve
Spool TypeNo. 7 spool
Center ConditionP, A and B connected; T blocked
Operating ArrangementThree-position, spring-centered
Solenoid ArrangementDouble solenoid
Coil Voltage100 VAC 50/60 Hz; 110 VAC 60 Hz
Electrical ConnectionPL plug-in conduit box with indicator lamps
Maximum Working Pressure31.5 MPa
Maximum FlowUp to 160 L/min, depending on pressure and flow path
Allowable Tank-Port Back Pressure15.7 MPa
Mounting InterfaceISO 4401-AC-05-4-A gasket mounting
Design Number40

Operating Notes

  • Confirm the AC supply voltage and frequency before energizing the valve.
  • Do not energize both solenoids simultaneously.
  • The indicator lamps confirm electrical commands but not physical spool movement.
  • Maximum flow must be checked against operating pressure and the active flow path.
  • Protect the T port from surge pressure above the specified AC-solenoid limit.

Legacy Model and Replacement Notes

This Design 40 valve should be listed as a legacy stock or replacement-inquiry product. Confirm the product condition, complete nameplate and availability before accepting an order.

A 2C, 6C, 8C or other center configuration is not a functional substitute for this 7C valve. Verify the hydraulic symbol as well as the voltage and electrical connection when selecting a replacement.
