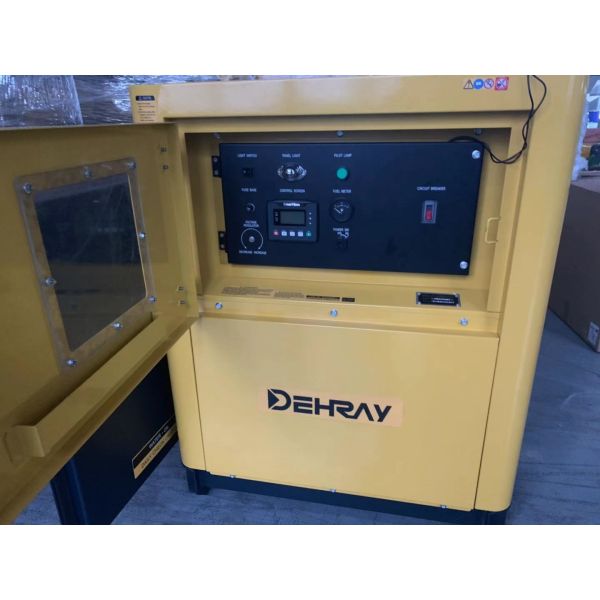

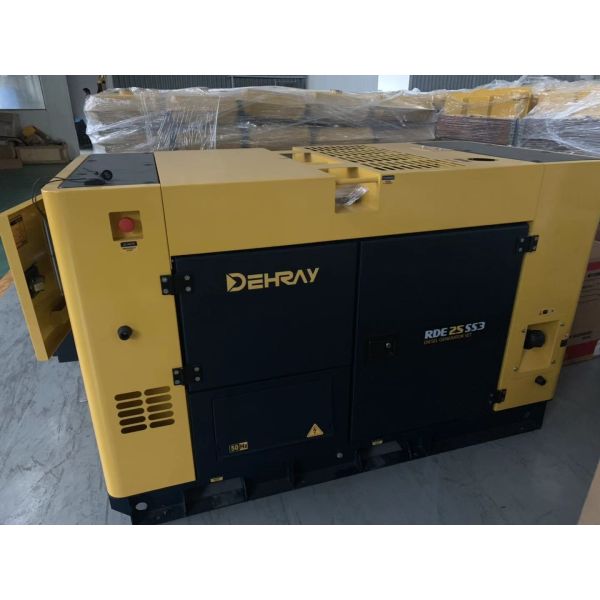

18KW - 20kW Diesel Generator Set 50 60Hz 51dB Super Silent Generator RDE25SS3
18KW - 20kW Diesel Generator Set 50 60Hz 51dB Super Silent Generator RDE25SS3
Specifications
Brand Name :
Dehray
Place of Origin :
China
MOQ :
1
Delivery Time :
2 weeks
Price :
USD
Supply Ability :
1 per week
Model Number :
RED25SS3
Packaging Details :
Plywood board + corrugated box
Cooling Method :
Water Cooling
Transport Package :
Polyfirm or Wooden Case
Frenqucy :
50/60HZ
Cooling System Type :
Water Cooling System, Cooling fins
Excitation Type :
Brushless and Selfexcited
Rated Current :
1440A
Current :
216A
Protection Grade :
IP23
Power :
1000 kW
Origin :
Foshan Guangdong
Usage :
Common Units, Standby Unit
Algorithm :
SHA256d
Displacement :
79.17L
Options :
Automatic Transfer Switch
Power Factor :
0.8
Description
RDE25SS3 Super Silent Generator | 51dB(A) |18-20kW Prime Power | Reliable 50/60Hz Dual Frequency Output
RDE25SS3 Ultra Super Silent Diesel Generator Set

Introducing the RDE25SS3, a flagship model from the RDE SS (Ultra Super Silent) series. This generator set is engineered for exceptional versatility, uniquely offering dual-frequency operation. It delivers a prime power of 18kW (20kW standby) at 50Hz and 20kW (24kW standby) at 60Hz. The unit integrates a reliable WEICHAI engine (WP2.3D series) with a high-performance XINGNUO brushless alternator, which features an Automatic Voltage Regulator (AVR) to ensure stable power output.

The RDE25SS3 is specifically designed for environments where noise is a critical concern. With an operational noise level as low as 51 dB(A), it is one of the quietest generators on the market, making it ideal for residential areas, hospitals, schools, data centers, and offices. Its dependable performance makes it a perfect solution for standby power during grid outages or as a primary power source for remote work sites, construction, and outdoor events where minimal sound disruption is required.

Key advantages of the RDE25SS3 are centered on its "Ultra Super Silent" performance, which is quiet enough to blend into the background of most environments. Its standout feature is the dual-frequency capability, providing unmatched flexibility for different geographic regions or equipment requirements. Furthermore, the high-quality brushless alternator with AVR protects sensitive electronics by delivering clean, stable power, while the robust WEICHAI engine ensures long-term reliability and efficiency.

18KW - 20kW Diesel Generator Set 50 60Hz 51dB Super Silent Generator RDE25SS3

18KW - 20kW Diesel Generator Set 50 60Hz 51dB Super Silent Generator RDE25SS3

Parameter RDE25SS3 (50Hz) RDE25SS3 (60Hz)
Prime power (KVA) 22.5 25
Standby power (KVA) 25 30
Rated voltage (V) 400/230 416/240
Rated current (A) 32.6 34.7
Rated rotation speed (r/min) 1500 1800
Generator manufacture XINGNUO XINGNUO
Generator Model XN184E / FD1FS1-4 XN184E / FD1FS1-4
Generator type XN184G-1 XN184F-2
Pole No. 4 4
Excitation mode Brushless, self-excitation and constant voltage(with AVR) Brushless, self-excitation and constant voltage(with AVR)
Power factor (COSΦ) 0.8(lag) 0.8(lag)
Insulation grade H H
Engine Manufacture WEICHAI WEICHAI
Engine type WP2.3D25E200 WP2.3D30E201
Structure type 4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled 4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled
Bore*stroke (mm) 89*92 89*92
Displacement (L) 2.289 2.289
Compression ratio 17.5:1 17.5:1
Rated power (KW) 23 27
Cooling water volume, Engine (L) 5 5
, Radiator 8 8
Lubrication system Pressure splashed Pressure splashed
Lube oil brand Above CD grade or SAE 10W-30, 15W-40 Above CD grade or SAE 10W-30, 15W-40
Lubrication capacity (L) 8 8
Starter system 12V electric start 12V electric start
Starter motor capacity (V-KW) 12V 3.5KW 12V 3.5KW
Charging generator capacity (V-A) 14V 35A 14V 35A
Battery capacity*Number (V-Ah) 12V 80Ah *1 12V 80Ah *1
Fuel consumption (g/KW.h) 224 210
Fuel type 0#(summer)-10#(winter)-35#(chillness) diesel 0#(summer)-10#(winter)-35#(chillness) diesel
Control panel type HGM4010N HGM4010N
Output, Receptacle 2 single phase 2 single phase
, Connection pole with with
Noise level(@7m) (dB(A)) 51 53
Fuel tank capacity (L) 90 90
Air filter inlet flow 240m3/h 240m3/h
Exhaust temperature (℃) 650 650
Overall dimensions (mm) 1950*950*1200 1950*950*1200
Packaging Plywood board + corrugated box Plywood board + corrugated box
Packing dimension (mm) 2020*1060*1350 2020*1060*1350
Net weight (kg) 960 960
