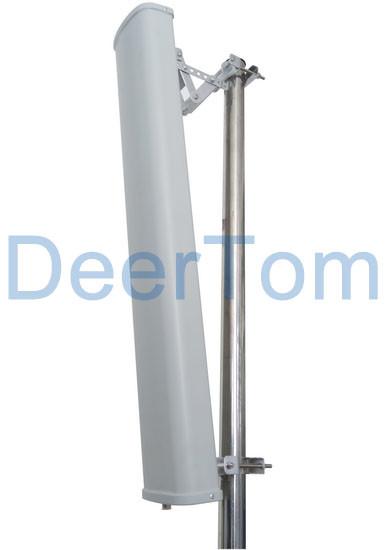

806-960MHz CDMA GSM Sector Panel Antenna 16dBi 120degrees Horizontal Outdoor High Gain Base Station Antenna
806-960MHz CDMA GSM Sector Panel Antenna 16dBi 120degrees Horizontal Outdoor High Gain Base Station Antenna
Specifications
Brand Name :
Deertom
Model Number :
DT-SPA806-960-16-120
Certification :
CE,ROHS,ETC
Place of Origin :
CHINA
MOQ :
1piece
Price :
$100-$300 per piece
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per day
Delivery Time :
7
Packaging Details :
Neutral Package
Frequency :
806-960MHz
Gain :
16dBi
Horizontal Beamwidth :
120degrees
Description
ELECTRICAL
Model DT-SPA806-960-16-120
Frequency Range 806-960MHz
Gain 16dBi
Beamwidth H: 120° , E: 7°
VSWR ≤1.5
F/B Ratio ≥20dB
Polarization Vertical
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension 2500*288*141mm
Weight 13kg
Radome Material UPVC
Rated Wind Velocity 60m/s
Connector Position Bottom

806-960MHz CDMA GSM Sector Panel Antenna 16dBi 120degrees Horizontal Outdoor High Gain Base Station Antenna
