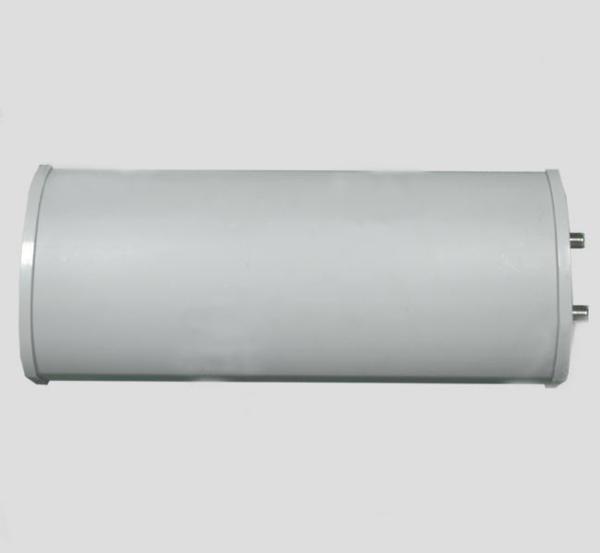

698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
698-2700MHz 4G LTE MIMO Sector Panel Antenna 10dBi 65Degrees Outdoor Directional Base Station Antena
Specifications
Brand Name :
Deertom
Model Number :
DT-SPA698-2700-10*2-65
Certification :
Ce,RoHS,etc
Place of Origin :
CHINA
MOQ :
50pieces
Price :
$50-$100 per piece
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100pieces per day
Delivery Time :
10
Packaging Details :
Neutral Package
Frequency :
698-2700MHz
Type :
MIMO
Gain :
8-10dBi
Description
ELECTRICAL
Model DT-SPA698-2700-10*2-65
Frequency Range 698-960/1710-2700MHz
Gain 8 / 10*2dBi
Beamwidth H: 60 ± 8° , E: 50 ± 8°
VSWR ≤1.8
F/B Ratio ≥20dB
Polarization Vertical and Horizontal or ±45°
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female *2 or customized
Antenna Dimension 400*290*135mm
Weight 4.5kg
Radome Material PVC
Rated Wind Velocity 60m/s
Working Temperature -40～60℃
Pole Diameter Ф50～115mm
