Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Specifications
Certification :
CE UL
Hot Mixer Volume :
1000L
Model Number :
HM-1000/3500-1
Application :
PVC, SPC Flooring, Plastic Raw Materials
MOQ :
1
Delivery Time :
60 working days
Capacity :
800–1000kg/batch
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cooling Mixer Motor Power :
37 kW
Price :
Starting Price: USD 40,500
Hot Mixer Motor Power :
160 kW
Supply Ability :
30 units/month
Name :
Automatic Debagging Machine
Place of Origin :
China
Cooling Mixer Volume :
3500L
Brand Name :
TOVOT
Model :
1000/3500
Packaging Details :
1*20GP
Description

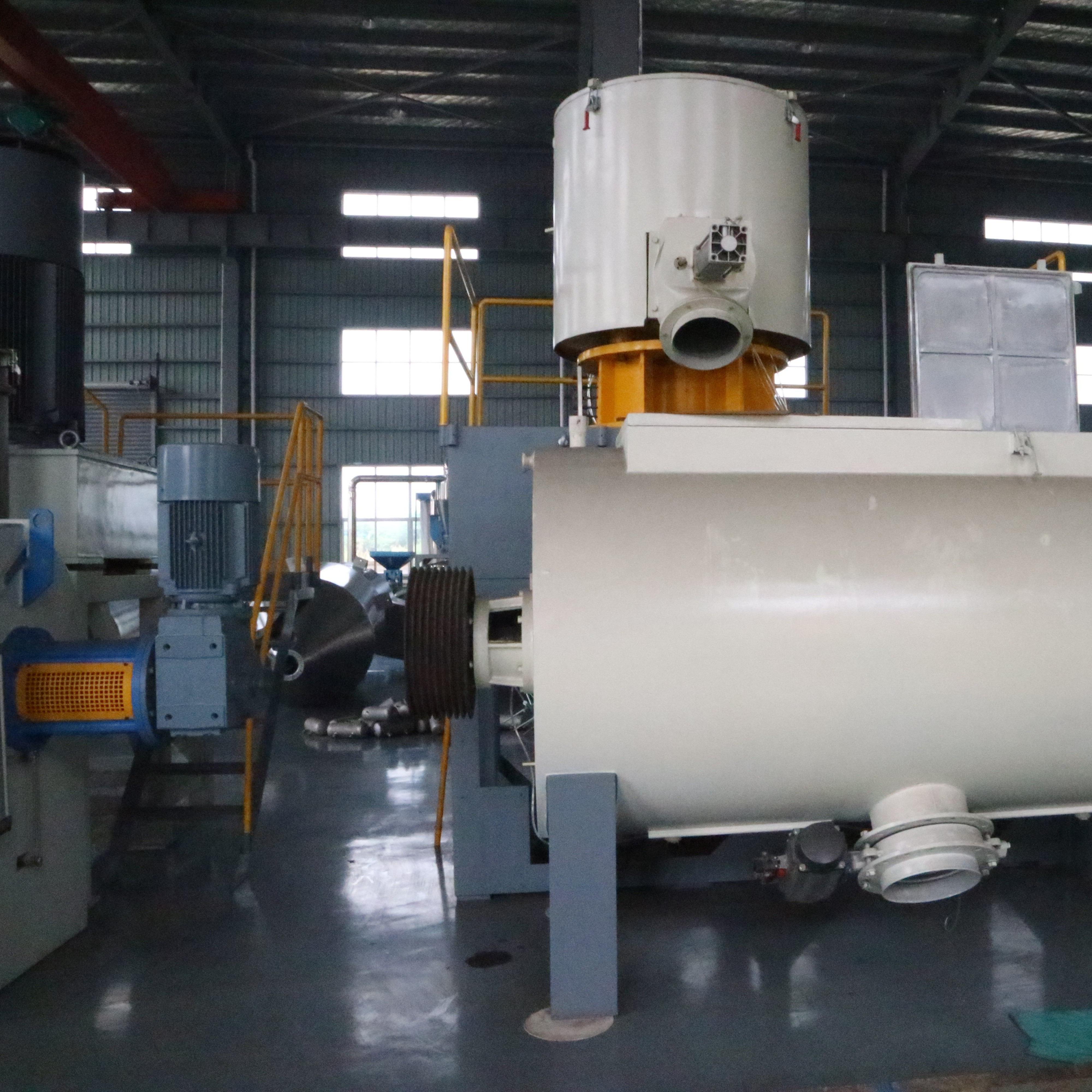

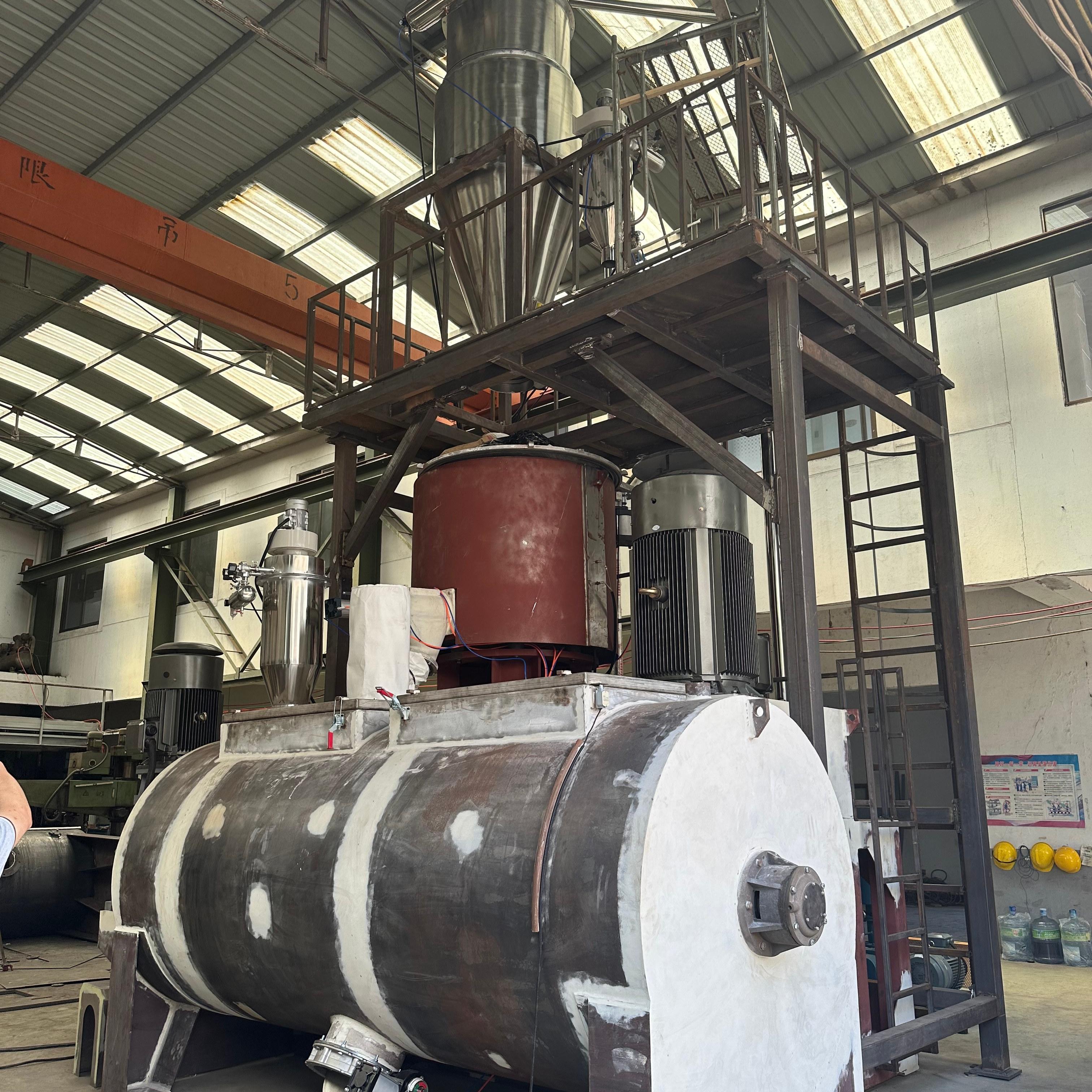

Industrial PVC Hot and Cold Mixing Unit 1000/3500
Designed for large volume plastic processing with enhanced cooling performance, this industrial material preparation system blends and cools PVC compounds before extrusion processing.
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
High-Capacity Mixing Solution
The SRL-W1000/3500 model features a 1000L high-speed hot mixer and 3500L horizontal cooling mixer, offering improved batch capacity and cooling efficiency compared to standard 1000/3000 models. Ideal for PVC extrusion products, SPC flooring materials, profiles, pipes, and other plastic applications requiring stable mixing performance.
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Key Advantages
  • Enhanced cooling capacity for superior material temperature control
  • Heavy-duty mixing structure designed for continuous industrial operation
  • Alloy steel blades with excellent wear resistance and long service life
  • Optimized paddle design for improved material circulation
  • Automatic control system for simple operation and stable production
  • Compatible with automatic feeding, conveying, and extrusion systems
Industrial PVC Hot And Cold Mixing Unit 1000L 3500L For Large Volume Plastic Processing
Operating Process
The unit operates through sequential hot mixing and cooling stages. PVC resin, calcium carbonate, stabilizers, lubricants, and additives are loaded into the vertical mixer where high-speed rotating blades create circulation and friction for uniform dispersion. After reaching processing temperature, material automatically transfers to the horizontal cooling mixer where low-speed paddles and water circulation remove heat evenly, maintaining consistent material properties for storage or extrusion production.
Application Areas
  • SPC flooring production
  • PVC profile manufacturing
  • PVC pipe production
  • Plastic compound preparation
  • Decorative board material processing
  • General PVC extrusion applications
Technical Specifications
Item Specification
Model SRL-W1000/3500
Application PVC, SPC Flooring, Plastic Raw Materials
Hot Mixer Volume 1000 L
Cooling Mixer Volume 3500 L
Capacity 800-1000 kg/batch
Hot Mixer Motor Power 160 kW
Cooling Mixer Motor Power 37 kW
Blade Material Alloy Steel
Hot Mixing Speed 740 rpm
Cooling Mixing Speed 45-50 rpm
Cooling Method Water Jacket Cooling
Control System Automatic PLC
Discharge Method Pneumatic Automatic Discharge
Voltage 380V Custom
Operation Mode Automatic
Design OEM Available
Complete Production Solution
This mixing unit integrates with weighing systems, material conveying equipment, storage silos, and extrusion production lines to create an automated raw material preparation system. The complete mixing process enhances material consistency, reduces manual operation, and supports stable production for medium to large-scale plastic processing plants.
Frequently Asked Questions
What is the difference between the 1000/3000 and 1000/3500 models?
The main difference is the cooling mixer capacity. The 1000/3500 model provides a larger cooling chamber, improving cooling efficiency and supporting higher batch output.
What materials are suitable for this mixing unit?
It is suitable for PVC resin, fillers, stabilizers, lubricants, pigments, additives, and various plastic powder materials.
Can this unit be used for SPC flooring production?
Yes. The system is commonly used for preparing SPC flooring compounds before extrusion.
How does the cooling process work?
Cooling water circulates through the jacket around the mixing chamber while the paddles continuously move the material for uniform heat removal.
Can the machine configuration be customized?
Yes. Capacity, motor power, control system, material structure, and automation level can be adjusted according to production requirements.
