High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
Specifications
Model Number :
HM-1000/3000-1
Hot Mixer Volume :
1000 L
MOQ :
1
Delivery Time :
60 working days
Capacity :
700–900 kg/batch
Hot Mixing Speed :
740 rpm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cooling Mixer Motor Power :
30 kW
Price :
Starting Price: USD 35,500
Hot Mixer Motor Power :
132 kW
Supply Ability :
30 units/month
Blade Material :
Alloy Steel
Certification :
CE UL
Name :
Mixing System
Place of Origin :
China
Cooling Mixer Volume :
3000 L
Brand Name :
TOVOT
Application :
PVC, SPC Flooring, Plastic Raw Materials
Packaging Details :
1*20GP
Cooling Mixing Speed :
50 rpm
Description
High Output PVC Hot and Cold Mixing System 1000/3000
Designed for efficient preparation of PVC dry blends and plastic raw materials before extrusion processing with compact design and reliable operation.
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
System Overview

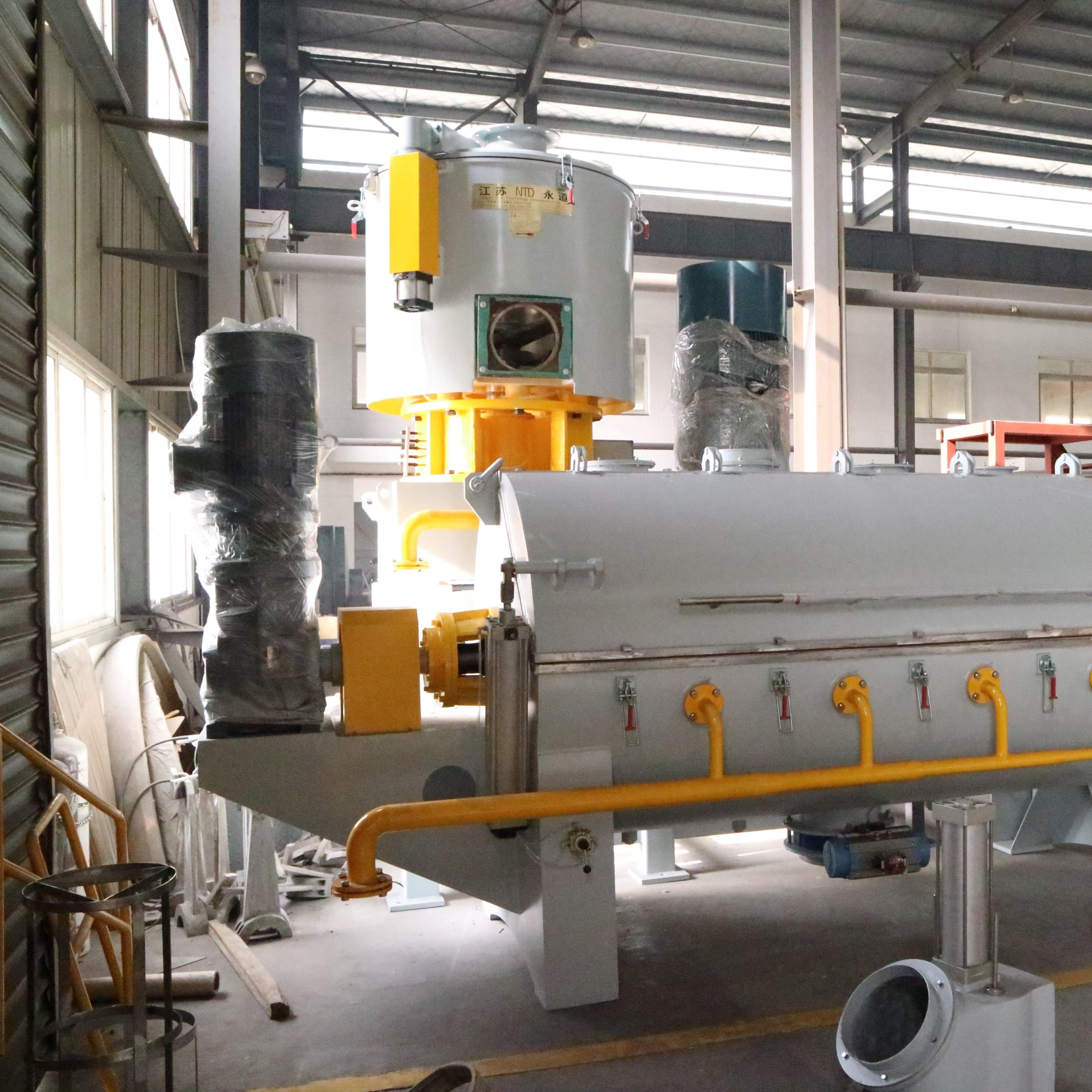

The SRL-W1000/3000 model combines a 1000L high-speed hot mixer and a 3000L horizontal cooling mixer, providing stable mixing, heating, and cooling performance for medium-scale production requirements. Suitable for PVC profiles, pipes, SPC flooring, and various plastic compound applications where uniform material preparation and reliable operation are essential.
High Output PVC Hot And Cold Mixing System 1000/3000 For Plastic Material Processing
Stable Material Preparation for Continuous Production
Uniform mixing is crucial in plastic processing. PVC resin, fillers, stabilizers, lubricants, and additives require complete dispersion before extrusion. The system employs a two-stage mixing process: the hot mixer rapidly blends materials through high-speed rotation and friction heating, while the cooling mixer ensures even temperature reduction. This integrated design enhances material consistency, reduces preparation time, and provides stable raw material supply for production lines.
System Advantages
  • Compact structure ideal for factories with limited installation space
  • High-speed mixing chamber ensures strong circulation and uniform material dispersion
  • Horizontal cooling chamber provides stable temperature reduction after hot mixing
  • Alloy steel blades offer excellent wear resistance for long-term operation
  • Automatic control system simplifies operation and improves production stability
  • Compatible with feeding equipment, storage systems, and extrusion lines
Working Principle
The mixing process begins when PVC resin and additives are loaded into the hot mixer. High-speed blades rotate within the mixing chamber, creating strong material circulation and friction heat. This stage ensures even blending of all components. After completing the hot mixing cycle, material transfers to the cooling mixer where slow-speed paddle movement and water circulation cooling reduce temperature while maintaining material uniformity. The cooled material discharges automatically for storage or extrusion production.
Application Areas
The SRL-W1000/3000 PVC Hot and Cold Mixing System is commonly used in:
  • PVC profile production
  • PVC pipe manufacturing
  • SPC flooring production lines
  • Plastic raw material preparation
  • PVC compound processing
Technical Specifications
Item Specification
Model SRL-W1000/3000
Application PVC, SPC Flooring, Plastic Raw Materials
Hot Mixer Volume 1000 L
Cooling Mixer Volume 3000 L
Capacity 700-900 kg/batch
Hot Mixer Motor Power 132 kW
Cooling Mixer Motor Power 30 kW
Blade Material Alloy Steel
Hot Mixing Speed 740 rpm
Cooling Mixing Speed 50 rpm
Cooling Method Water Jacket Cooling
Control System Automatic PLC
Discharge Method Pneumatic Automatic Discharge
Voltage 380V Custom
Operation Mode Automatic
Design OEM Available
Complete PVC Material Mixing Solution

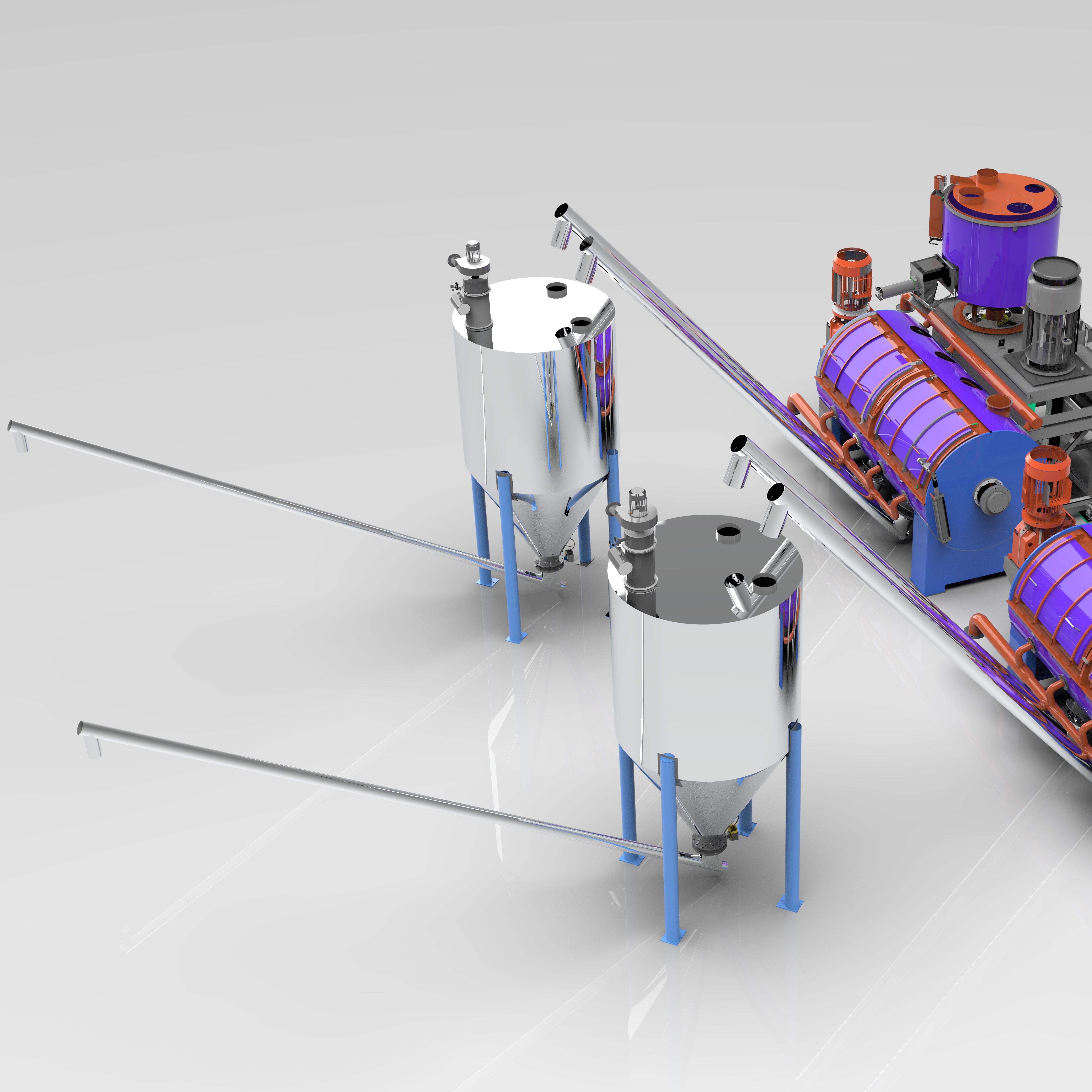

The PVC Hot and Cold Mixing System integrates with automatic weighing equipment, conveying systems, storage silos, and extrusion machines to create a comprehensive material preparation solution. Through automated mixing, cooling, and transfer processes, the system enhances production efficiency and maintains consistent product quality.
Frequently Asked Questions
What materials can this mixing system process?
The system is suitable for PVC resin, calcium carbonate, stabilizers, lubricants, pigments, additives, and other plastic raw materials.
What is the production capacity of the SRL-W1000/3000 model?
The standard capacity is approximately 700-900 kg per batch, depending on material formulation and operating conditions.
Is this model suitable for SPC flooring production?
Yes. It is designed for SPC flooring lines and other PVC extrusion applications.
What is the advantage of hot and cold mixing?
The hot mixer provides rapid blending and heating, while the cooling mixer ensures even temperature reduction to improve material stability.
Can the system be customized?
Yes. Mixing capacity, motor configuration, automation level, and machine structure can be customized according to specific production requirements.
