Specifications
Certification :
CE UL
Operating speed :
6-30 m/min
Model Number :
TCC-9
Conveyor length :
8-200 m
MOQ :
1
Delivery Time :
60 working days
Material construction :
CS / SUS304
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Voltage :
220V/380V
Price :
Starting Price: USD 8,000
Name :
Automatic Disc Chain Conveyor
Supply Ability :
50 units/month
Place of Origin :
China
Tube diameter :
76-219 mm
Brand Name :
TOVOT
Power consumption :
1.5-37 KW
Packaging Details :
1*20GP
Description
Automatic Disc Chain Conveyor System With Sealed Structure, Flexible Installation, And Low Maintenance For Bulk Material Transfer
The Automatic Disc Chain Conveyor System is engineered for continuous conveying of powder, granule, pellet, and other dry bulk materials. Featuring a sealed tube structure combined with high-strength disc chain technology, this system delivers stable material transfer performance across diverse industrial production environments.
Automatic Disc Chain Conveyor System Flexible Installation For Bulk Material Transfer
Disc Chain Conveyor System Overview
The enclosed conveyor design effectively prevents material leakage and minimizes dust during transportation. With flexible installation options, the system can be configured according to factory conditions and production requirements, supporting horizontal, vertical, and inclined conveying routes.
This conveyor system finds extensive application in plastic processing, chemical industries, agricultural material handling, mineral processing, and other sectors requiring automated bulk material transportation.
Automated Bulk Material Conveying Solution
Industrial production demands reliable transportation of raw materials between storage systems and processing equipment. Inconsistent material supply can compromise production efficiency and increase operational costs.
The Automatic Disc Chain Conveyor System ensures continuous and precise material transportation through its closed conveying pipeline. This design protects materials during transfer and delivers stable feeding performance for automated production processes.
The conveyor seamlessly integrates with storage tanks, silos, mixers, dosing systems, extrusion equipment, and other machinery to establish comprehensive automated material handling systems.
Key Product Advantages
  • Sealed tube design contains materials within the conveying system, reducing dust pollution and preventing external contamination

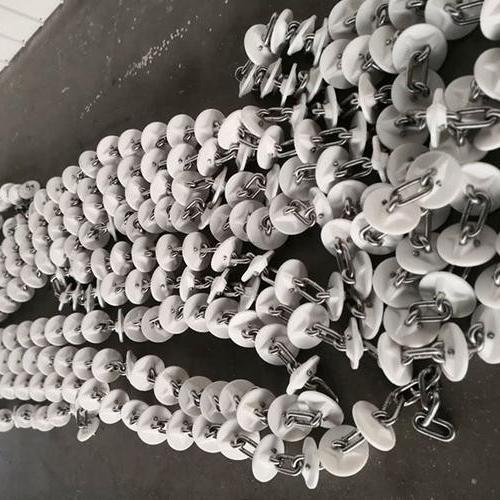

  • Disc chain structure enables smooth material movement with minimal impact, ideal for pellets, granules, and powder materials
  • Compact design conserves installation space and allows flexible arrangement according to factory layout
  • Customizable conveying distances and directions tailored to specific production requirements
  • Durable mechanical components and simple transmission structure minimize maintenance needs and enhance operational stability
Operating Principle

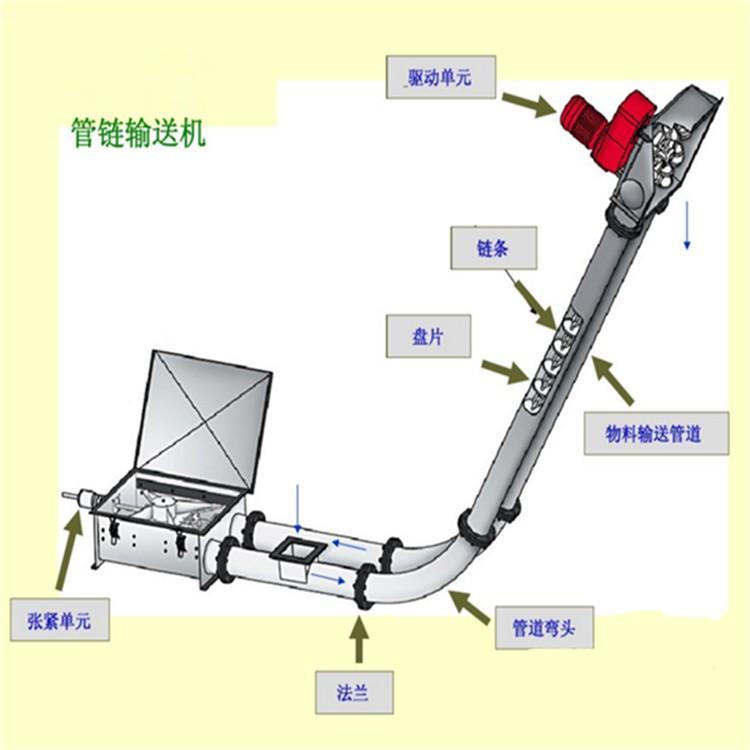

The Disc Chain Conveyor System operates via a drive unit that propels the continuous chain within the enclosed tube. Conveying discs mounted on the chain push materials forward during continuous operation.
Materials enter through the feeding inlet and are transported along the pipeline to designated discharge positions. The enclosed conveying process prevents direct environmental exposure and helps maintain consistent material quality.
Multiple feeding and discharge points can be configured to accommodate various production processes.
Industrial Applications
The Automatic Disc Chain Conveyor System serves numerous industries requiring automated bulk material transfer:
  • Plastic processing factories: Transporting plastic pellets, resin granules, PVC powder, additives, and recycled materials between storage equipment and production machinery
  • Chemical and industrial production: Handling powder materials, granular additives, and dry raw materials requiring enclosed transportation
  • Automated manufacturing plants: Integration with feeding systems, mixing systems, and production lines to enhance material supply efficiency
Automatic Disc Chain Conveyor System Flexible Installation For Bulk Material Transfer
Technical Specifications
Item Specification
Type Disc Chain Conveyor
Design Closed Tube Type
Material Powder / Pellet / Granule
Capacity 15-250 kg/min
Length 8-200 m
Tube Size 76-219 mm
Speed 6-30 m/min
Direction H/V/Inclined
Tube Material CS / SUS304
Chain Alloy Steel
Disc Nylon / UHMWPE
Motor 1.5-37 KW
Voltage 220V/380V
Control PLC System
Drive Motor Gearbox
Custom Available
Complete Material Handling System
The Disc Chain Conveyor System can be integrated with automatic feeding equipment, storage silos, weighing systems, mixers, and production machines to create comprehensive conveying solutions.
Through automated transportation and stable material supply, the system reduces manual operations, enhances production efficiency, and supports continuous factory operations.
Frequently Asked Questions
What materials can the Disc Chain Conveyor System transport?
The system can transport powder, granule, pellet, resin, plastic particles, additives, and other dry bulk materials.
Can the conveying route be customized?
Yes. The conveyor layout, length, pipe diameter, feeding position, and discharge position can be customized according to customer requirements.
Is the conveyor suitable for plastic pellet handling?
Yes. It is commonly used for transporting plastic pellets, resin materials, additives, and recycled particles in plastic processing plants.
What is the advantage of a closed conveying system?
The sealed structure helps reduce dust leakage, protect materials, and provide cleaner transportation conditions.
