Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Specifications
Certification :
CE UL
Tube material :
Steel or Stainless Steel
Model Number :
TCC-2
Chain type :
Enclosed chain with flights
MOQ :
1
Delivery Time :
60 working days
Pipe diameter :
108 mm / 133 mm / 159 mm / 219 mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Name :
Tube Chain Conveyor
Price :
Starting Price: USD 8,500
Drive power :
1.5-22KW
Supply Ability :
50 units/month
Place of Origin :
China
Conveyor capacity :
0.5-80 m³/h
Brand Name :
TOVOT
Operating temperature range :
-20°C to 80°C
Packaging Details :
1*20GP
Description
Automatic Enclosed Tube Chain Conveyor With Customizable Length And Low Maintenance For Bulk Material Handling
The Tube Chain Conveyor System is an automatic enclosed conveying solution designed for transporting powder, granule, pellet, and bulk materials. The system uses a continuous chain with discs inside a sealed tube to achieve stable and efficient material transfer.
The Tube Chain Conveyor System provides clean and reliable conveying performance with reduced dust leakage, low material loss, and flexible installation. It can transport materials horizontally, vertically, and at different angles, making it suitable for various industrial production environments.
The Tube Chain Conveyor System is widely used in plastic processing, food production, chemical manufacturing, building materials, agriculture, and other industries. The system can be customized according to conveying distance, capacity, material type, and production line requirements.
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling
Main Features
  • The Tube Chain Conveyor System adopts a fully enclosed design to improve cleanliness and reduce material contamination during transportation.
  • With flexible conveying routes and compact structure, the Tube Chain Conveyor System can be easily integrated into existing production lines.
  • The special disc chain structure provides gentle material handling, stable conveying performance, and reduced material breakage.
  • The Tube Chain Conveyor System supports OEM customization for different materials, capacities, layouts, and industrial applications.
Automatic Enclosed Tube Chain Conveyor Customized Length For Bulk Material Handling

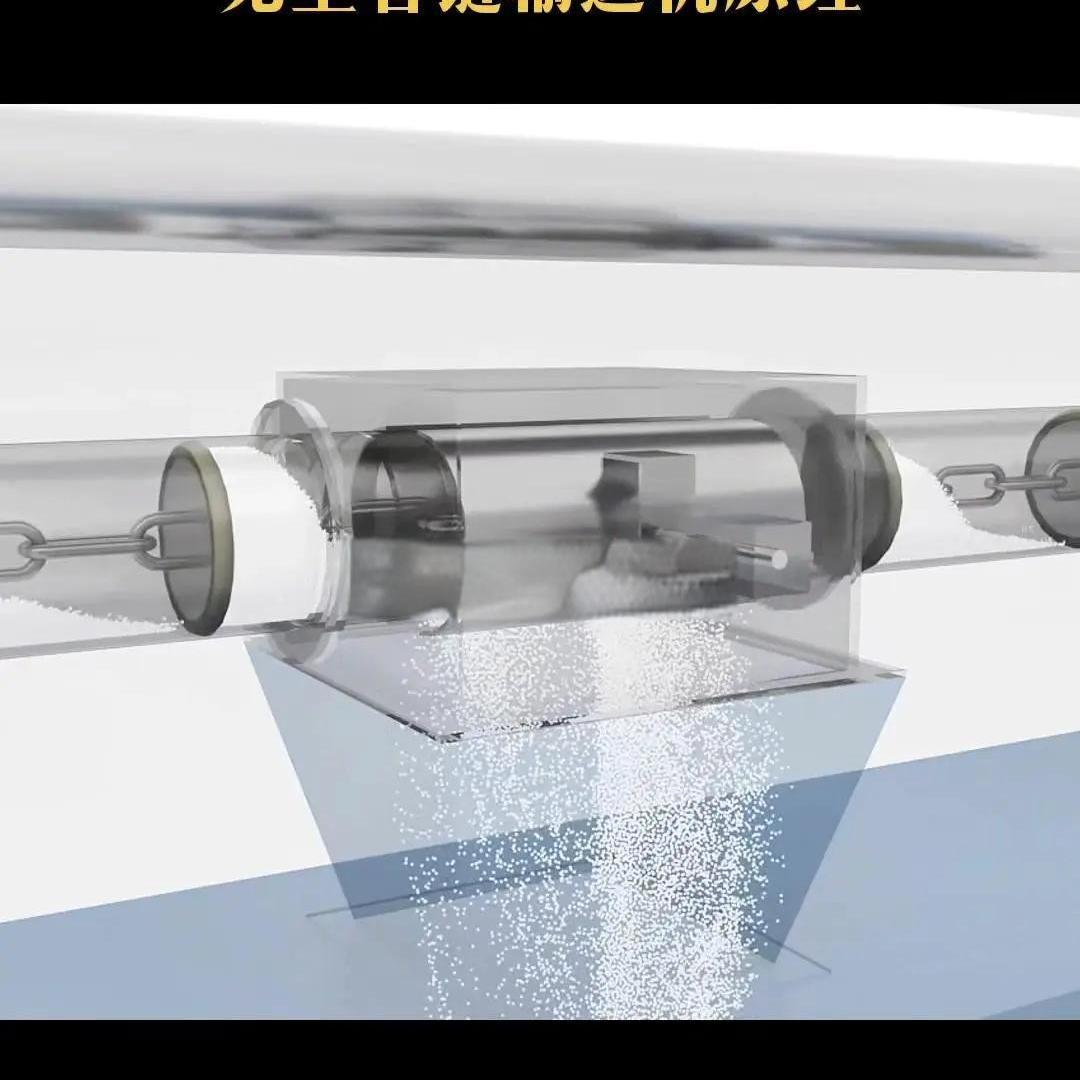

How Tube Chain Conveyor System Works
The Tube Chain Conveyor System works through a moving chain installed inside an enclosed pipe. The discs fixed on the chain push materials forward during continuous operation.
Materials enter from the feeding inlet and are transported through the closed tube to the discharge point. The system can be connected with feeding equipment, dosing systems, mixing systems, and automatic production lines.
Technical Specifications
Item Specification
Machine Type Tube Chain Conveyor System
Conveyor Type Enclosed Tube Chain Conveyor / Disc Chain Conveyor
Application Material Powder, Granule, Pellet, Bulk Material
Conveying Capacity 0.5-80 m³/h
Conveying Distance 3-100 m (Customized)
Pipe Diameter 108 mm / 133 mm / 159 mm / 219 mm
Machine Material Carbon Steel / Stainless Steel 304 / Stainless Steel 316L
Drive Power 1.5-22 KW
Voltage 220V / 380V / Customized
Conveying Direction Horizontal / Vertical / Inclined
Control System Automatic PLC Control
Design Type OEM Customized Tube Chain Conveyor System
Applications
The Tube Chain Conveyor System is suitable for plastic pellets, resin granules, food ingredients, chemical powders, agricultural products, feed materials, and other bulk materials.
It is commonly applied in plastic factories, food processing plants, chemical plants, building material production lines, and automated manufacturing systems.
Frequently Asked Questions
Q: What is a Tube Chain Conveyor System?
A: The Tube Chain Conveyor System is an enclosed conveyor equipment that uses a chain and disc structure to transport powder, granule, pellet, and bulk materials efficiently.
Q: What materials can the Tube Chain Conveyor System handle?
A: It can handle plastic pellets, powder materials, food ingredients, chemical materials, grains, and other bulk materials.
Q: Can the Tube Chain Conveyor System be customized?
A: Yes. The system can be customized according to conveying distance, capacity, material characteristics, pipe diameter, and factory layout.
Q: Can it be integrated with other equipment?
A: Yes. The Tube Chain Conveyor System can connect with feeding systems, dosing systems, mixing systems, and automatic production lines.
