Description

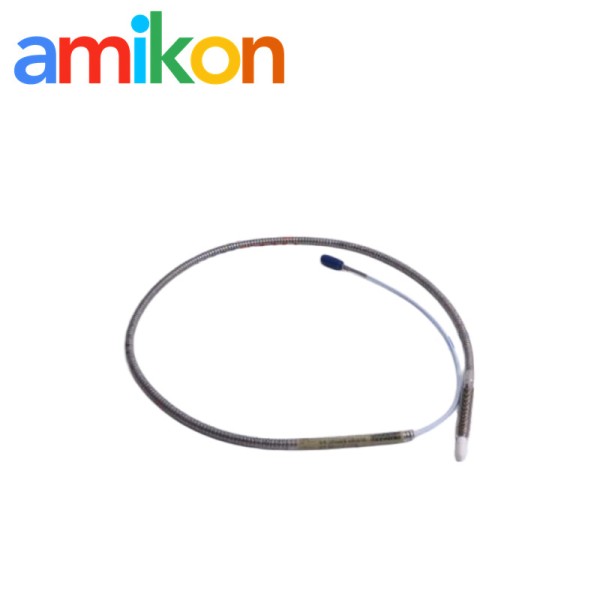

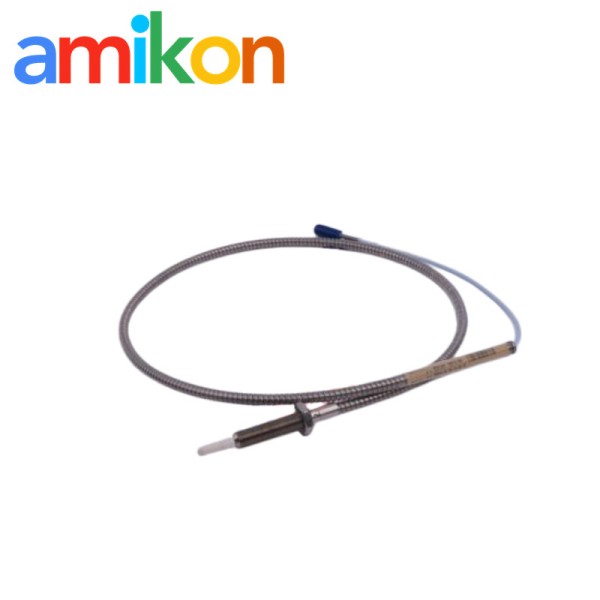

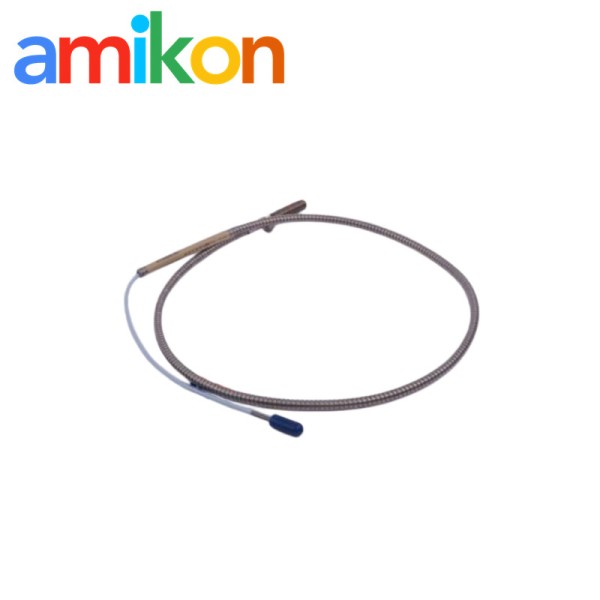

Bently Nevada 330910-05-10-02-00 Proximity Probe
Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation
Technical Specifications
Category Parameter Specification

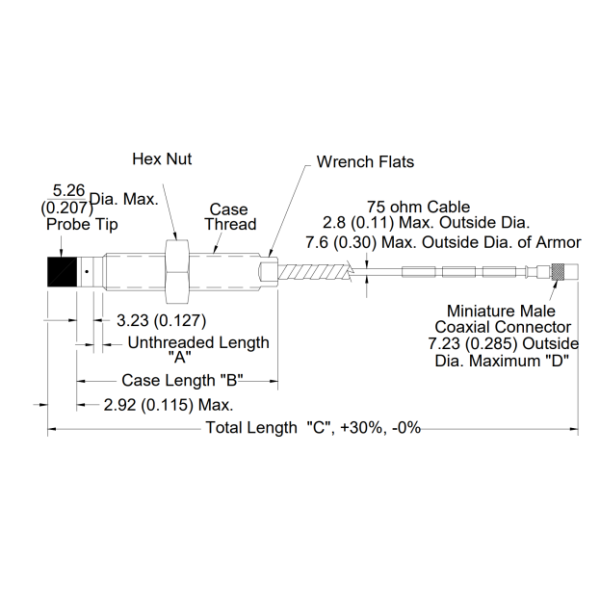

Model Base Part Number 330910 (3300 XL NSv Proximity Probe, M10 x 1 thread)
Unthreaded Length (-05) 50 mm
Overall Case Length (-10) 100 mm
Total Length (-02) 1.0 metre (3.3 feet)
Mechanical Connector/Cable Option (-00) Miniature coaxial ClickLoc connector, standard cable
Electrical Linear Range 1.5 mm (60 mils)
Incremental Scale Factor 7.87 V/mm (200 mV/mil) ± 11%
Probe Resistance 4.2 Ω ± 0.5 Ω
Performance Target Material AISI 4140 Steel
Min. Shaft Diameter 30 mm (1.2 in)
Frequency Response 0 to 10 kHz
Environmental Operating Temp -52 °C to +177 °C (-62 °F to +351 °F)
Pressure Rating 50 psi (3.5 bar) differential
Materials Probe Tip PPS (Polyphenylene sulfide)
Probe Case AISI 304 Stainless Steel
Cable Jacket FEP (Fluorinated Ethylene Propylene)
Contact Us for Pricing or Technical Support

Contact: Miya Zheng

Email: sales@amikon.cn

WhatsApp: +86 180 2077 6792

Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation
Key Applications
  • Small Shaft Radial Vibration Monitoring: The Bently Nevada 330910-05-10-02-00 is often selected for machines using relatively small shafts, especially around 30 mm (1.2 inch). In these situations, a regular proximity probe can start giving unstable or non-linear readings. That’s basically where the 3300 XL NSv Proximity Probe becomes more practical. It keeps the radial vibration monitoring signal cleaner and easier for operators to trust during long-term operation.
  • Restricted Space Installation: A lot of industrial rotating machinery simply doesn’t have much installation space left around the bearing housing. Narrow counterbores, limited side clearance, awkward mounting angles — all pretty common in older equipment. The NSv (Narrow Side View) technology was developed exactly for this kind of environment. Compared with larger eddy current sensor designs, the 330910-05-10-02-00 Sensor fits more naturally into tight layouts without creating
  • Critical Asset Protection (API 670): For steam turbine monitoring, gas turbine protection, and centrifugal compressor monitor systems, this probe is widely used as part of an API 670 compliant setup. Many plants still prefer Bently Nevada spare parts because reliability is already proven in real operating conditions. When connected to a machinery protection system (MPS), the probe continuously watches machine vibration behavior and helps protect critical assets before problems spread further.
  • Thrust & Axial Position Measurement: Besides standard vibration monitoring, the 3300 XL NSv Transducer is also used for thrust position measurement and axial shaft movement tracking. Operators usually need early indication when rotor movement starts shifting beyond acceptable range. If that movement is ignored, high-speed rotating equipment can eventually experience metal-to-metal contact, which nobody wants during production.
  • Emergency Shutdown System (ESD) Integration: The 330910-05-10-02-00 Sensor works smoothly with the 3500/42M Proximitor Monitor, 3500/40M monitor module, and other Bently Nevada 3500 rack module configurations. In many applications, vibration signals are sent directly into the emergency shutdown system (ESD). Once abnormal vibration crosses the configured alarm point, the system can automatically trigger machine protection actions.
  • High-Temperature & Corrosive Environments: Harsh environments are pretty normal in turbine and compressor applications, so material quality matters a lot. This M10x1 proximity sensor uses an AISI 304 stainless steel case together with a PPS probe tip, helping it tolerate oil exposure, moisture, and chemical contamination. The operating temperature range is roughly from -52°C up to +177°C, which covers most industrial operating conditions.
  • Predictive Maintenance & Diagnostics: One reason maintenance teams continue using the 3300 XL extension cable and NSv probe combination is the quality of the raw vibration signal. The system can provide data up to 10 kHz for detailed diagnostics inside System 1 software and TDI module integration environments. That makes it easier to identify imbalance, shaft misalignment, looseness, or early bearing wear before an unexpected shutdown happens.
  • Hydroelectric & Industrial Pump Monitoring: The Bently Nevada 330910-05-10-02-00 is also common in hydroelectric turbine monitoring and industrial pump applications where mounting space is extremely limited. Sometimes there is simply no room for a standard 8 mm proximity sensor interface, especially on compact equipment. In those cases, the smaller 3300 XL NSv Proximity Probe usually becomes the more workable solution.
Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation
Product Features
  • NSv (Narrow Side View) Technology: One of the biggest advantages of the Bently Nevada 330910-05-10-02-00 is the NSv (Narrow Side View) design. In many turbine or compressor installations, side clearance is extremely limited, so standard proximity probes can easily suffer from unwanted magnetic side-view interference. The 3300 XL NSv Proximity Probe was developed to deal with those tighter geometries more effectively, especially in narrow counterbores and compact machine layouts.
  • Small-Diameter Target Compatibility: Not every vibration transducer probe performs well on smaller shafts. Once the shaft diameter becomes too small, standard eddy current sensor systems usually start losing linearity. This 330910-05-10-02-00 Sensor is optimized for targets as small as 30 mm (1.2 inch), which makes it a solid choice for small shaft radial vibration monitoring applications.
  • Precision M10x1 Threaded Case: The compact M10x1 proximity sensor housing is another practical detail. It gives engineers more flexibility during installation, particularly when the equipment already has restricted mounting space or special counterbore dimensions. For retrofit projects, that smaller threaded design can save quite a bit of modification work.
  • Extended Thermal Stability: Industrial environments are rarely comfortable, especially around steam turbine monitoring or gas turbine protection systems. This 3300 XL NSv Transducer is built to operate across a wide temperature range, roughly from -52°C up to +177°C. So whether the equipment is installed in colder outdoor conditions or high-heat turbine sections, the probe still maintains stable measurement performance.
  • High-Fidelity Signal Output: Signal quality matters a lot in predictive maintenance and machinery diagnostics. The probe supports frequency response from 0 to 10 kHz, allowing maintenance teams to capture both slow-roll movement and high-speed vibration behavior. When connected with TDI module integration or System 1 software, engineers can usually identify imbalance, looseness, or bearing issues much earlier.
  • Robust Material Construction: The construction is designed for long-term industrial use rather than light-duty environments. A PPS probe tip combined with an AISI 304 stainless steel body helps the 330910-05-10-02-00 resist corrosion, oil contamination, and moisture exposure. That’s important in power plant instrumentation and other harsh rotating machinery applications where environmental conditions are not always clean or dry.
  • ClickLoc™ Gold-Plated Connector: Connection reliability often gets overlooked until vibration levels become severe. This model uses a miniature ClickLoc™ gold-plated coaxial connector that stays secure even in high-vibration machinery protection system (MPS) installations. It also helps reduce signal loss and connection problems during long operating cycles.
  • API 670 Standard Compliance: The probe is fully compatible with Bently Nevada 3500 system spares and commonly used together with the 3500/42M Proximitor Monitor, 3500/40M monitor module, and other Bently Nevada 3500 rack module setups. In many API 670 compliant systems, the sensor works as part of the emergency shutdown system (ESD) to support continuous machine protection.
  • Flexible Configuration (-05-10-02-00): The specific -05-10-02-00 configuration includes a 50 mm unthreaded length, 100 mm total case length, and a 1.0 meter cable assembly. For users replacing older Bently Nevada spare parts, this kind of matching configuration is useful because it allows a more direct “drop-in” replacement without major installation changes.
Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation
Frequently Asked Questions
What is the primary application of the Bently Nevada 330910-05-10-02-00 proximity probe?
This 330910-05-10-02-00 isn’t a general-purpose probe, it’s more like a targeted solution for small shaft vibration and position work. You usually see it in radial vibration monitoring where shaft size drops down to around 30 mm, or in machines where space is just too tight for standard probes. The 3300 XL NSv Proximity Probe design helps in those awkward installation spots, especially inside steam turbine or compressor housings where magnetic side-view interference becomes an issue with normal sensors.
What do the suffix codes “-05-10-02-00” represent for the 330910-05-10-02-00?
These codes are basically the mechanical configuration. “-05” means 50 mm unthreaded length, “-10” is 100 mm overall case length, “-02” stands for 1.0 m cable length, and “-00” refers to standard cable with ClickLoc connector. It looks technical on paper, but in practice it’s just the exact build version of this 330910-05-10-02-00 Sensor for replacement or retrofit work with existing Bently Nevada spare parts.
Can the 330910-05-10-02-00 be used with a standard 3300 XL 8mm Proximitor Sensor?
No, and this is where people sometimes get it wrong. The 330910-05-10-02-00 is meant to work with the 3300 XL NSv Proximitor Sensor only. If you mix it with the regular 8 mm system, the scaling won’t match and vibration data will drift. In machinery protection system (MPS) setups or API 670 environments, that kind of mismatch is a real risk for incorrect shutdown logic.
What environments can the 330910-05-10-02-00 handle?
It’s built for rough industrial conditions. Temperature range is roughly -52 °C to +177 °C, and it can handle about 50 psi differential pressure. The stainless steel body (AISI 304) plus PPS tip helps it survive oil mist, moisture, and general plant contamination. So power plants, turbines, and rotating machinery sites are the typical use case.
Why is the 330910-05-10-02-00 used in narrow counterbores?
Simple reason—space. Standard eddy current sensor setups need more clearance. The NSv (Narrow Side View) design in this 3300 XL NSv Transducer reduces side-view errors, so even if the probe is mounted deep inside a restricted area, it can still “see” the shaft properly without too much distortion.
Does the 330910-05-10-02-00 require specific target material?
Yes, calibration is based on AISI 4140 steel. If the shaft material is different, output scaling (7.87 V/mm or 200 mV/mil) may need adjustment. In real plant work, engineers usually check this during commissioning, especially when the probe is tied into a 3500/42M Proximitor Monitor or 3500/40M module for protection logic.
What is frequency response for the 330910-05-10-02-00 system?
It covers 0 Hz up to 10 kHz. That range is enough for both slow thrust movement and higher-speed vibration signals. In practice, it’s what allows predictive maintenance systems and TDI module integration setups to pick up early fault signatures instead of waiting for obvious failure.
Bently Nevada 330910-05-10-02-00 Proximity Probe with Narrow Side View Technology for Small-Diameter Targets and High-Temperature Operation
Compatible Parts & Accessories
Part Number Part Number
125680-01 350500-00-00-00-11-00
125840-02 330190-080-01-00
133819-01 3500/77M 140734-07
136188-02 2201/03-01
140471-01 1900/65
149992-01 21747-080-00
172103-01 330730-080-01-00
3500/22M 288055-01 330930-060-00-00
3500/33 149986-01 125388-01H 125388-01
3500/60 163179-01 125720-02
3500/72M 176449-08 138708-01
3500/62 163179-03 330104-00-08-10-02-00
3500/40M 140734-01 330105-02-12-05-02-CN
330500-02-00 330130-045-00-CN
135137-01 330103-00-04-05-02-00
149992-02 330850-90-05
147663-01 3500/32 125712-01
3500/94 145988-01 991-01-XX-02-05
140482-01 9200-06-05-05-00
330500-00-20 330101-00-28-05-02-00
