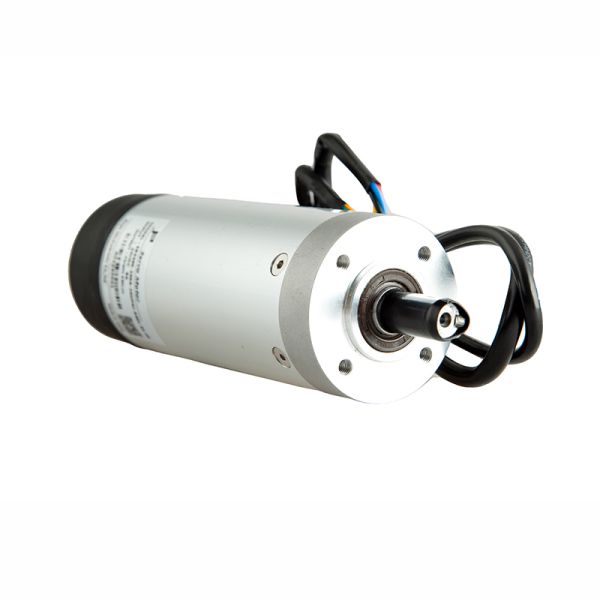

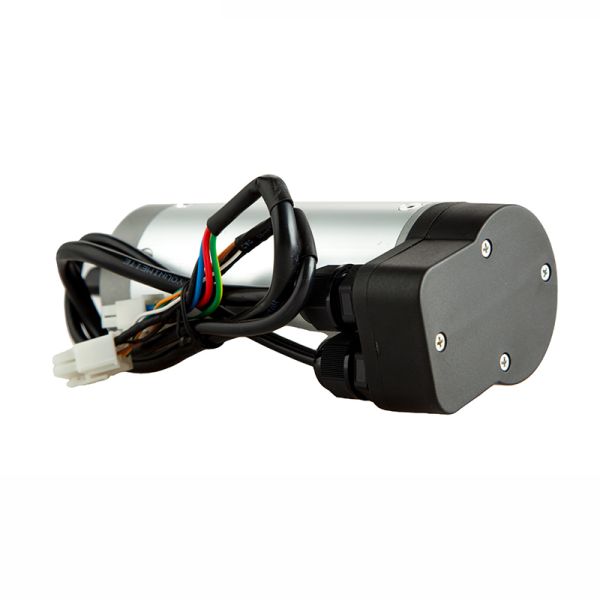

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor
Specifications
Brand Name :
CSJY
Model Number :
GEBS59R-100A-20XP4J-B6EL-S1-00
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
500pcs per month
Delivery Time :
10-15days after payment
Packaging Details :
package
Type :
SERVO MOTOR
Torque :
23Nm
Speed(RPM) :
41RPM
Power :
100W
Rated Voltage :
DC 24V
Rated Current :
6A
Output Torque :
23Nm
Encorder :
2400
Gear Ratio :
1:49
Application :
swing gate, speed gate, flap barrier gate
Description

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor


Product description

swing barriers servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.


● Maximum outer diameter 59mm, round body, motor and reducer integrated assembly, suitable for channel gate movement structure;

● Comes with a 2400-line incremental encoder with an optional 1:49 reduction ratio to achieve high-precision control of the movement;



Features

This motor's fuselage is very small and short, suitable for a variety of mechanical equipment. The product has 3-phase low-voltage servo motor with gearbox, and high efficiency for low energy consumption. With encoder for motor control feedback, use low temperature greases for gearbox.Available in reduction ratio, 1:38 & 1:30& 1:63. And available in 1 wiring method.

Specification
Model
GEBS59R-100A-20XP4J-B6EL-S1-00
Rated Voltage
DC 24V
Rated Current
6A
Output Torque
23Nm
Output Speed
41RPM
Rated Power
100W
Poles
4
Encorder
2400
Gear Ratio
1:49

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor



59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

59mm 24V 23Nm Channel Gate Servo Motor, High-precision Low-voltage Servo Motor

FAQ

1. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.

3. How about the lead time?
Normally we have stock for the hot sale models of standard products.

Regular products need 3-5 working days. The customized products need 10-15 working days.

4. How long is your warranty period?
One-year guarantee & Life-time technology support.
