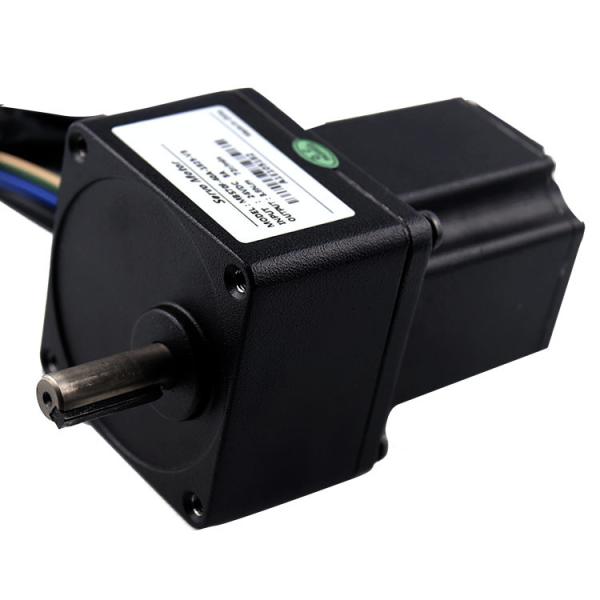

BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
BLDC Servo Motor 40W with 1:25 Ratio and 3.8nm Output Torque for Fast Opening Swing Gates
Specifications
Brand Name :
CSJY
Model Number :
MBS70F-40A-1825-V3
Certification :
CE
MOQ :
2PCS
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
15 working days
Packaging Details :
cartons
Application :
swing gate, speed gate, sliding gate
Features :
fast opening and sensitive anti-pinch
Rated voltage :
DC24V
Rated power :
40w
Rated current :
3A
Rated speed  :
1800rpm
Ratio :
1:25
Output torque :
3.8nm
Description

BLDC Servo Motor 40W 1:25 for Swing Gate Turnstile


Product Description

The BLDC Servo Motor 40W 1:25 is a high-performance, brushless DC motor system engineered for demanding automation and access control applications. This integrated servo solution combines a powerful 40-watt brushless motor with a precision 1:25 ratio planetary gearbox, delivering exceptional torque, smooth operation, and long-term reliability.


Specification

Application swing gate, speed gate, sliding gate
Features fast opening and sensitive anti-pinch
Rated voltage DC24V
Rated power 40w
Rated current 3A
Poles 5
Rated speed 1800rpm
Ratio 1:25
Output speed 72rpm
Output torque 3.8nm


Features

• High-Efficiency BLDC Motor: Brushless DC technology offers superior performance, higher torque, and a longer lifespan than brushed alternatives, with no carbon brushes to replace.

• Robust Planetary Gearbox: The high-precision 1:25 reduction ratio gearbox provides high output torque, excellent durability, and low backlash for reliable and accurate movement.

• Integrated Servo Control: Comes with a matching servo controller for precise speed and position control, enabling smooth starts and stops to reduce mechanical stress.

• High Torque Density: Delivers exceptional torque (approx. 4-5 Nm) from a compact form factor, perfect for space-constrained installations.

• Quiet and Smooth Operation: Ideal for residential and commercial environments where noise reduction is important.

• Reliable & Maintenance-Free: Sealed construction and brushless design ensure consistent operation with minimal maintenance, even in harsh outdoor conditions.

• Thermal Protection: Built-in safeguards protect the motor from overheating under heavy loads or continuous operation.


Applications

Swing gate

Speed gate

Tripod turnstile gate

Sliding gate

Flap gate
