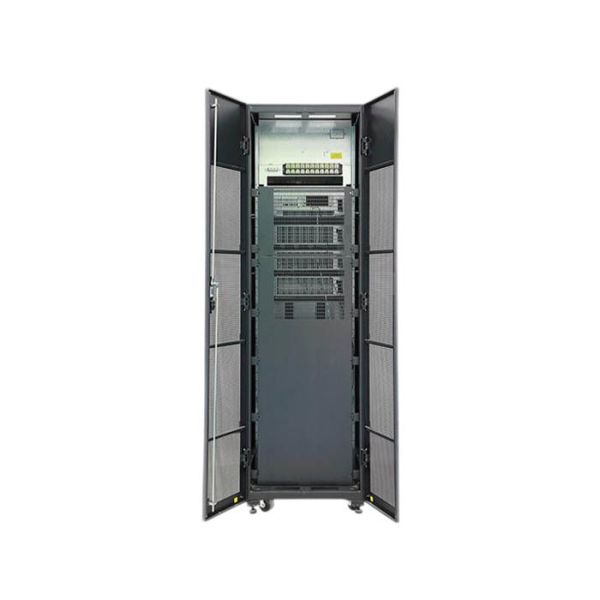

40kVA Modular UPS Systems Server Backup Power Supply
40kVA Modular UPS Systems Server Backup Power Supply
40kVA Modular UPS Systems Server Backup Power Supply
40kVA Modular UPS Systems Server Backup Power Supply
Specifications
Brand Name :
Soeteck
Model Number :
SY-M
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
D/A
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4W
Packaging Details :
Cartons, Wooden boxes
System Capacity :
40kVA
Waveform :
Sine wave or Simulated sine wave
Backup Time :
5 to 60 minutes depending on load
Type :
Power Backup Device
Battery Type :
Sealed Lead Acid (SLA) or Lithium-ion
Output Voltage :
380-415 VAC
Communication Ports :
RS232, RS485, SNMP, and dry contact
Operating Temperature :
0°C to 40°C
Input Voltage :
304-485 VAC
Noise Level :
Less than 60 dB
Frequency :
40-70Hz
Efficiency :
≥ 92%
Description

Introducing the Online Modular UPS with Isolation Transformer, a high-reliability power protection solution designed for mid-sized mission-critical environments, including medium-scale data centers, medical imaging facilities, and precision industrial control systems. Its integrated isolation transformer serves as the core advantage, delivering ultra-pure and stable power while isolating sensitive equipment from electrical disturbances, ensuring operational safety in scenarios where power quality is paramount.

This 40kVA UPS features a space-efficient modular design that eliminates the need for additional transformer cabinets at its rated capacity. Adopting a three-in-three-out architecture and advanced DSP control technology, it achieves 92% efficiency in normal mode, 95% in ECO mode, and maintains 92% efficiency even during battery backup. Fully compliant with strict industry safety standards, it comes with an intuitive monitoring interface and robust overload performance, making it a cost-effective and dependable choice for long-term critical power protection in mid-sized applications.


Product Family

Model No. System Capacity Module Power Input Voltage Output Voltage Efficiency Wiring
SYM020-TX › 20kVA 20kVA × 1 304~485VAC (full load); 304~138VAC (100%-40% linear derating) 380/400/415VAC (Line Voltage) 92% (normal); 95% (ECO); 92% (battery) 3 phase N PE
SYM040-TX › 40kVA 20kVA × 2 304~485VAC (full load); 304~138VAC (100%-40% linear derating) 380/400/415VAC (Line Voltage) 92% (normal); 95% (ECO); 92% (battery) 3 phase N PE
SYM060-TX › 60kVA 20kVA × 3 304~485VAC (full load); 304~138VAC (100%-40% linear derating) 380/400/415VAC (Line Voltage) 92% (normal); 95% (ECO); 92% (battery) 3 phase N PE

Product Features

40kVA Modular UPS Systems Server Backup Power Supply

Isolation & Reliable Performance

Integrated dedicated isolation transformer strengthens electrical isolation, stabilizing voltage output and effectively shielding precision equipment (e.g., medical imaging devices, mid-range servers) from harmonic interference and ground loop issues. With three-in-three-out architecture and DSP control, it maintains THDi < 3% for clean power, and handles 110% overload for 60 minutes and 150% overload for 1 minute, ensuring consistent operation even in unstable grid conditions.


Flexible Scalability & Smart Management

40kVA rated capacity with integrated cabinet design optimizes space utilization; hot-swappable modules enable maintenance and capacity adjustments without downtime. Equipped with an LCD LED display for real-time tracking of system status, load rate, and transformer temperature. Supports RS232, RS485, SNMP, and dry contact interfaces for remote management, plus advanced battery management (compatible with ±240VDC) to extend backup power lifespan.

40kVA Modular UPS Systems Server Backup Power Supply

Featured Types of UPS Series


With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.

40kVA Modular UPS Systems Server Backup Power Supply

1-60 kVA

Rack/Tower UPS

rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.

40kVA Modular UPS Systems Server Backup Power Supply

1-600 kVA

Industrial UPS

3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.

40kVA Modular UPS Systems Server Backup Power Supply

1-1200 kVA

Tower Online UPS

high-frequency, wide input range, high integration, fits small server rooms to large facilities.

40kVA Modular UPS Systems Server Backup Power Supply

20-1600 kVA

Modular Online UPS

hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.

APPLICATIONS


40kVA Modular UPS Systems Server Backup Power Supply
Data Center & IDC
40kVA Modular UPS Systems Server Backup Power Supply
Medical & Healthcare
40kVA Modular UPS Systems Server Backup Power Supply
Industrial Automation
40kVA Modular UPS Systems Server Backup Power Supply
Telecommunications

FAQ


1. What is the standard packaging for export?
We use fumigation-free wooden crates reinforced with steel belts to ensure safety during long-distance sea or air freight.
2. Can you customize the voltage for my country?
Yes, we support voltage customization (e.g., 110V/60Hz, 220V/50Hz, 380V/3Ph). Please specify your requirements when sending an inquiry.
3. How do you handle after-sales support?
We provide a 2-year warranty. During this period, replacement parts are free. We also offer 24/7 video technical support and installation manuals.
